| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMT1110OPTOISOLATOR 3.75KV TRANS 4SOP |
2,084 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | -40°C ~ 110°C | Surface Mount |
|

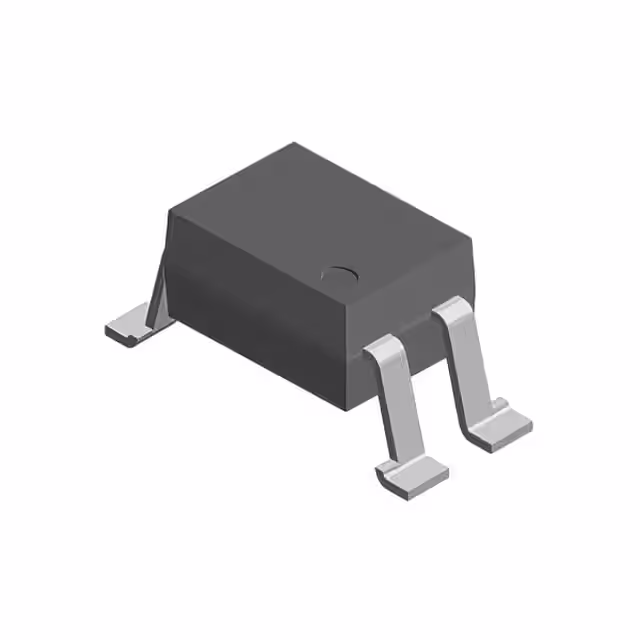

VO617C-3X017T1OPTOCOUPLER, PHOTOTRANSISTOR OUT |
3,331 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5300Vrms | 100% @ 5mA | 200% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

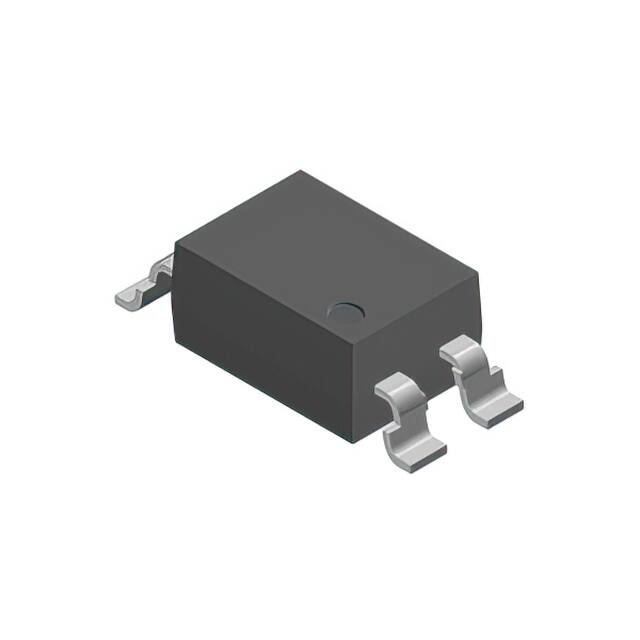

VO615C-2X019T1LOW INPUT CURRENT OPTOCOUPLER, P |
2,403 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

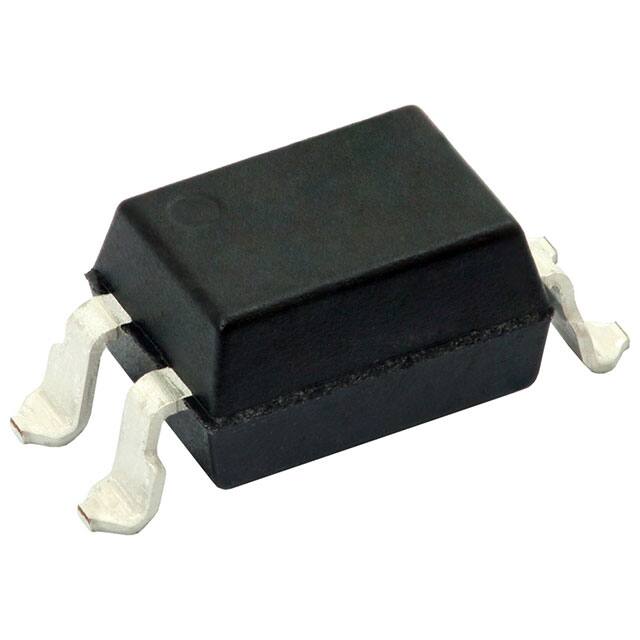

VO617C-2X009TOPTOCOUPLER, PHOTOTRANSISTOR OUT |
2,471 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5300Vrms | 63% @ 5mA | 125% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17-2X017OPTOISO 5KV TRANS W/BASE 6SMD |
3,915 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-2X019OPTOISO 5KV TRANS W/BASE 6SMD |
2,930 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17-1X016OPTOISO 5KV TRANS W/BASE 6DIP |
2,905 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17-1X017OPTOISO 5KV TRANS W/BASE 6SMD |
3,736 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-4X016OPTOISO 5KV TRANS W/BASE 6DIP |
3,963 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17-4X017OPTOISO 5KV TRANS W/BASE 6SMD |
2,607 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-1X019OPTOISOLTR 5KV TRANSISTOR 6-SMD |
3,145 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-2X017OPTOISOLTR 5KV TRANSISTOR 6-SMD |
3,905 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-4X017OPTOISOLTR 5KV TRANSISTOR 6-SMD |
2,091 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-3X019OPTOISOLTR 5KV TRANSISTOR 6-SMD |
2,739 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-2X019OPTOISOLTR 5KV TRANSISTOR 6-SMD |
3,422 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-1X017OPTOISOLTR 5KV TRANSISTOR 6-SMD |
2,895 | 0.25 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
SFH1690ABTOPTOISOLATOR 3.75KV TRANS 4SOP |
2,207 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
4N38-X007TOPTOISO 5KV TRANS W/BASE 6SMD |
3,715 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 20% @ 20mA | - | 10µs, 10µs | - | DC | Transistor with Base | 80V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
4N38-X009TOPTOISO 5KV TRANS W/BASE 6SMD |
3,527 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 20% @ 20mA | - | 10µs, 10µs | - | DC | Transistor with Base | 80V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
4N36-X009TOPTOISO 5KV TRANS W/BASE 6SMD |
2,492 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
