| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6136-X001OPTOISO 5.3KV TRANS W/BASE 8DIP |
2,171 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ILD2OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
3,329 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
IL252OPTOISO 5.3KV TRANS W/BASE 6DIP |
3,702 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
ILD2-X009OPTOISO 5.3KV 2CH TRANS 8SMD |
3,499 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
ILQ32-X009TOPTOISO 5.3KV 4CH DARL 16SMD |
2,386 | 3.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 5300Vrms | 500% @ 10mA | - | 15µs, 30µs | - | DC | Darlington | 30V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
|
ILD615-2OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
2,673 | 1.87 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
ILD615-4OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
2,888 | 1.91 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
SFH640-2X007OPTOISO 5.3KV TRANS W/BASE 6SMD |
2,302 | 1.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 5µs, 6µs | 2.5µs, 5.5µs | DC | Transistor with Base | 300V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
ILQ620GB-X009TOPTOISO 5.3KV 4CH TRANS 16SMD |
3,394 | 4.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6345-X007OPTOISOLATOR 5.3KV TRANS 8SMD |
2,065 | 2.07 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 19% @ 16mA | - | 300ns, 300ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

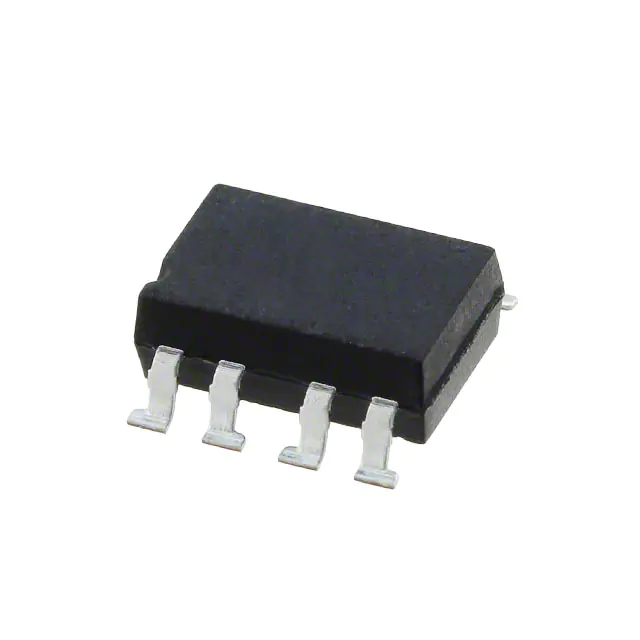

VO1263AACTROPTOISO 5.3KV 2CH PHVOLT 8SMD |
2,512 | 5.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | - | - | 16µs, 472µs | - | DC | Photovoltaic | 16.5V | 3µA | 1.3V | 50 mA | - | -40°C ~ 100°C | Surface Mount |
|
|
SFH6326-X009OPTOISOLATR 5.3KV 2CH TRANS 8SMD |
2,137 | 2.43 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 19% @ 16mA | - | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ILD55OPTOISO 5.3KV 2CH DARLNG 8-DIP |
2,169 | 2.69 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 10mA | - | - | 10µs, 35µs | DC | Darlington | 55V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILQ621GB-X009OPTOISO 5.3KV 4CH TRANS 16SMD |
2,691 | 3.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
IL300-EF-X017TOPTOISO 5.3KV PHVOLT 8SMD |
3,429 | 6.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ILQ32-X009OPTOISO 5.3KV 4CH DARL 16SMD |
2,843 | 3.65 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 500% @ 10mA | - | 15µs, 30µs | - | DC | Darlington | 30V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
ILQ620OPTOISO 5.3KV 4CH TRANS 16-DIP |
3,937 | 3.75 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ILQ30OPTOISO 5.3KV 4CH DARL 16DIP |
3,158 | 3.75 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 10mA | - | - | 10µs, 35µs | DC | Darlington | 30V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
ILQ620-X009OPTOISO 5.3KV 4CH TRANS 16SMD |
3,978 | 3.81 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
ILQ31OPTOISO 5.3KV 4CH DARL 16DIP |
2,415 | 3.84 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 200% @ 10mA | - | - | 10µs, 35µs | DC | Darlington | 30V | 125mA | 1.25V | 60 mA | 1V | -55°C ~ 100°C | Through Hole |
