| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

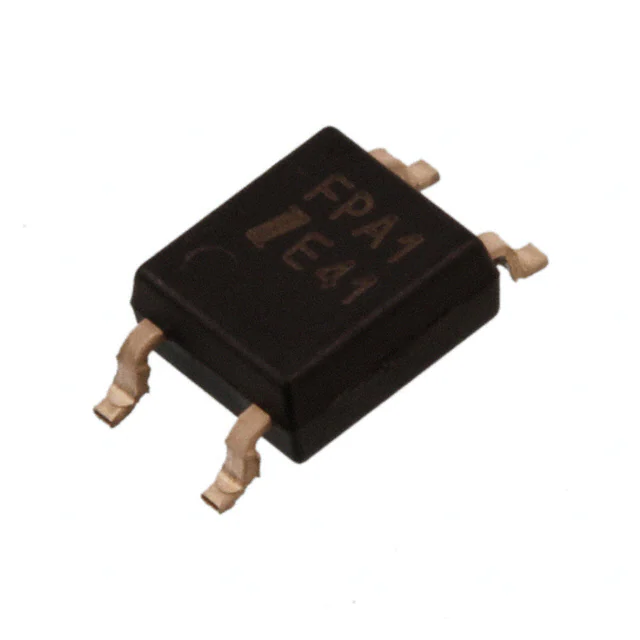

IS126OPTOCOUPLER TRANS AC MINI-FLAT |
2,586 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
IS281DOPTOCOUP TRANS 4SMD |
3,278 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
IS355OPTOISO 3.75KV DARL MINI-FLAT |
3,919 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 1mA | 7500% @ 1mA | - | 4µs, 3µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
6N139SMT/ROPTOISO 5KV DARL W/BASE 8SMD |
2,486 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 1µs, 7µs (Max) | - | DC | Darlington with Base | 18V | 60mA | 1.3V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|
ICPL0453SMT&ROPTOISO 3.75KV TRANSISTOR |
2,662 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ICPL0452SMT&ROPTOISO 3.75KV TRANSISTOR |
3,948 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
H11B1OPTOISO 5.3KV DARL W/BASE 6DIP |
877 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 500% @ 1mA | - | 125µs, 100µs | - | DC | Darlington with Base | 30V | - | 1.2V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
TLP521-2XOPTOISO 5.3KV 2CH TRANS 8DIP |
548 | 0.85 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
H11AA1XOPTOISO 5.3KV TRANS W/BASE 6DIP |
297 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
TLP620-2XOPTOISO 5.3KV 2CH TRANS 8DIP |
853 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
6N138OPTOISO 5KV DARL W/BASE 8DIP |
149 | 1.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 300% @ 1.6mA | - | 10µs, 35µs (Max) | - | DC | Darlington with Base | 7V | 60mA | 1.3V | 20 mA | - | 0°C ~ 70°C | Through Hole |
|
|
PS2505-2XOPTOISO 5.3KV 2CH TRANS 8DIP |
770 | 1.14 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Through Hole |
|
PS2501-4XOPTOISO 5.3KV 4CH TRANS 16DIP |
360 | 1.63 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Through Hole |
|
TLP521-4GROPTOISO 5.3KV 4CH TRANS 16DIP |
761 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | - | - | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
TLP620-4XOPTOISO 5.3KV 4CH TRANS 16DIP |
800 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
PS2502-4XOPTOISO 5.3KV 2CH DARL 16DIP |
787 | 2.13 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 200% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 40V | - | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
|
ICPL2630OPTOISO 5KV 2CH TRANSISTOR |
323 | 2.27 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | - | - | 40ns, 35ns | 40ns, 10ns | DC | Transistor | 7V | 50mA | 1.4V | 20 mA | - | -40°C ~ 100°C | Through Hole |
|
|
H11AV2XOPTOISO 5.3KV TRANS W/BASE 6DIP |
967 | 0.56 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
CNY17F-3XOPTOISO 5.3KV TRANSISTOR 6DIP |
944 | 0.56 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
H11A2XOPTOISO 5.3KV TRANS W/BASE 6DIP |
470 | 0.56 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
