| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH615A-4XSMOPTOISOLATOR 5.3KV TRANS 4SMD |
3,864 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 6µs, 25µs | 4.6µs, 15µs | DC | Transistor | 70V | 50mA | 1.65V (Max) | 50 mA | 400mV | -30°C ~ 100°C | Surface Mount |
|
4N32OPTOCOUPLER DARLINGTON 6DIP |
3,875 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 10mA | - | 5µs, 100µs | - | DC | Darlington | 30V | - | 1.2V | 80 mA | 1V | -55°C ~ 100°C | Through Hole |
|
|
PS2501-1XSMOPTOISO 5.3KV TRANS 4SMD |
3,782 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Surface Mount |
|
|
ISP817XSMOPTOISO 5.3KV TRANS 4SMD |
3,284 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
TLP621XSMOPTOISO 5.3KV TRANS 4SMD |
3,076 | 0.64 |
RFQ |
Tube | - | Active | 1 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount | |
|
TLP621-2XGBOPTOISO 5.3KV 2CH TRANS 8DIP |
3,249 | 0.76 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
TLP521-2XGBOPTOISO 5.3KV 2CH TRANS 8DIP |
3,486 | 0.76 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
TLP621-2XOPTOISO 5.3KV 2CH TRANS 8DIP |
3,979 | 0.85 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|

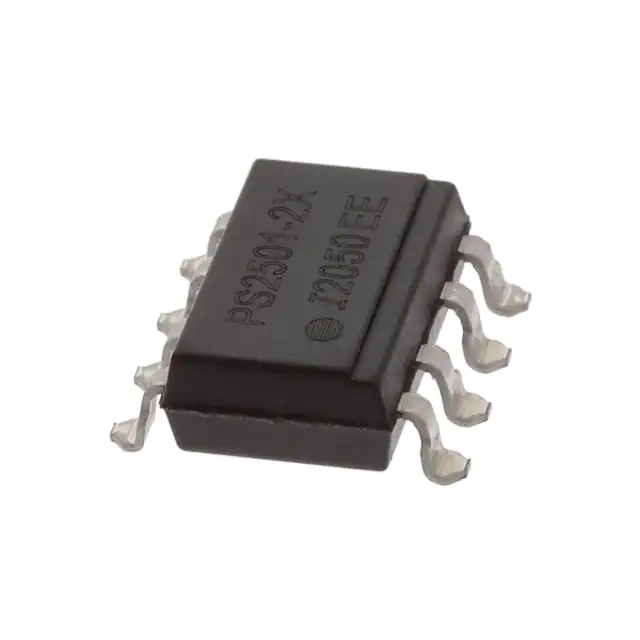

PS2501-2XOPTOISO 5.3KV 2CH TRANS 8DIP |
2,666 | 0.85 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Through Hole |
|
PS2501-2XSMOPTOISO 5.3KV 2CH TRANS 8SMD |
3,224 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Surface Mount |
|
|
TLP521-2XSMOPTOISO 5.3KV 2CH TRANS 8SMD |
2,123 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Surface Mount |
|
|
6N139OPTOISO 5KV DARL W/BASE 8DIP |
3,366 | 1.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 1µs, 7µs (Max) | - | DC | Darlington with Base | 18V | 60mA | 1.3V | 20 mA | - | 0°C ~ 70°C | Through Hole |
|
|
6N136OPTOISO 5KV TRANS W/BASE 8DIP |
2,574 | 1.10 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 150ns, 400ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
PS2502-2XOPTOISO 5.3KV 2CH DARL 8DIP |
715 | 1.22 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 200% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 40V | - | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
ISP281BOPTOCOUPLER |
3,459 | 0.57 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount | |
|
PS2501-4XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
3,388 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | -30°C ~ 100°C | Surface Mount |
|
|
TLP521-4XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
2,912 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Surface Mount |
|
TLP521-4XGBOPTOISO 5.3KV 4CH TRANS 16DIP |
2,398 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -30°C ~ 100°C | Through Hole |
|
|
TLP621-4XOPTOISO 5.3KV 4CH TRANS 16DIP |
3,252 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | - | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
ISP845XOPTOISO 5.3KV 4CH DARL 16DIP |
2,214 | 2.03 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 5300Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
