| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

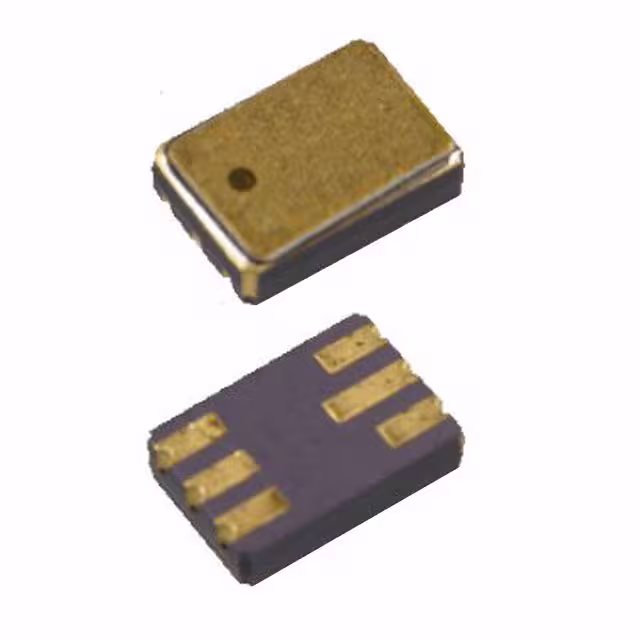

JANTX4N49U6 PIN, SMT OPTICALLY COUPLED ISO |
3,974 | 31.76 |
RFQ |
Datasheet |
Tray | - | Active | 1 | 1000VDC | 200% @ 2mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 45V | 10mA | 1.5V (Max) | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
JANTXV4N49U6 PIN, SMT OPTICALLY COUPLED ISO |
3,950 | 32.26 |
RFQ |
Datasheet |
Tray | - | Active | 1 | 1000VDC | 200% @ 2mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 45V | 10mA | 1.5V (Max) | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
4N48OPTOISO 1KV TRANS W/BASE TO78-6 |
3,826 | 53.17 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | 1 | 1000VDC | 100% @ 1mA | 500% @ 1mA | - | 20µs, 20µs | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
JANTXV4N48OPTOISO 1KV TRANS W/BASE TO78-6 |
2,876 | 46.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 1mA | 500% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
JANTXV4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
2,123 | 46.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
OPI153OPTOISOLTR 50KV DARLINGTON AXIAL |
3,829 | 55.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 50000VDC | 25% @ 20mA | - | 120µs, 70µs | - | DC | Darlington | 15V | 25mA | 1.3V | 50 mA | 1.2V | -40°C ~ 85°C | Through Hole |
|
HCC1002RADIATION CAPABLE OPTOISOLATOR 4 |
2,322 | 77.55 |
RFQ |
Datasheet |
Tray | - | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | -55°C ~ 150°C | Surface Mount |
|
|
HCC1001RADIATION CAPABLE OPTOISOLATOR 6 |
2,626 | 80.49 |
RFQ |
Datasheet |
Tray | - | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | -55°C ~ 150°C | Surface Mount |
|
|
HCC1000RADIATION CAPABLE OPTOISOLATOR M |
2,554 | 87.88 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | - | - | - | 20µs, 20µs (Max) | DC | - | 40V | 50mA | 1.9V (Max) | 40 mA | 300mV | -55°C ~ 150°C | Through Hole |
|
3C92CTXVOPTOISOLATOR 1KV TRANS TO72-4 |
3,391 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | -55°C ~ 125°C | Through Hole |
|
|
3N243TXOPTOISOLATOR 1KV TRANS TO72-4 |
3,200 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 15% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N244TXOPTOISOLATOR 1KV TRANS TO72-4 |
3,827 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 30% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N261OPTOISOLATOR 1KV TRANS TO72-4 |
2,221 | 11.10 |
RFQ |
Datasheet |
Bulk,Bulk | - | Obsolete | 1 | 1000VDC | 5% @ 1mA | - | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N261TXOPTOISOLATOR 1KV TRANS TO72-4 |
3,535 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 5% @ 1mA | - | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N262TXOPTOISOLATOR 1KV TRANS TO72-4 |
2,193 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 10% @ 1mA | 50% @ 1mA | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N263OPTOISOLATOR 1KV TRANS TO72-4 |
2,348 | 23.72 |
RFQ |
Datasheet |
Bulk,Bulk | - | Obsolete | 1 | 1000VDC | 20% @ 1mA | 100% @ 1mA | - | 25µs, 25µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N263TXOPTOISOLATOR 1KV TRANS TO72-4 |
2,362 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 20% @ 1mA | 100% @ 1mA | - | 25µs, 25µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
4N24AUOPTOISO 1KV TRANS W/BASE 6LCC |
3,229 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | - | 1.3V (Max) | 40 mA | 300mV | -65°C ~ 125°C | Surface Mount |
|
|
4N47OPTOISO 1KV TRANS W/BASE TO78-6 |
3,061 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 50% @ 1mA | - | - | 20µs, 20µs | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
4N47TXOPTOISO 1KV TRANS W/BASE TO78-6 |
3,618 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1000VDC | 50% @ 1mA | - | - | 20µs, 20µs | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
