| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3N262OPTOISOLATOR 1KV TRANS TO72-4 |
3,970 | 19.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 10% @ 1mA | 50% @ 1mA | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
JANTX4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
2,353 | 25.18 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
OPI110BOPTOISOLATOR 10KV TRANS AXIAL |
2,819 | 3.40 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | 1 | 10000VDC | 50% @ 10mA | 125% @ 10mA | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|
OPI1264OPTOISOLATOR 10KV TRANS AXIAL |
3,784 | 2.42 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 10000VDC | 12.5% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | -40°C ~ 85°C | Through Hole |
|

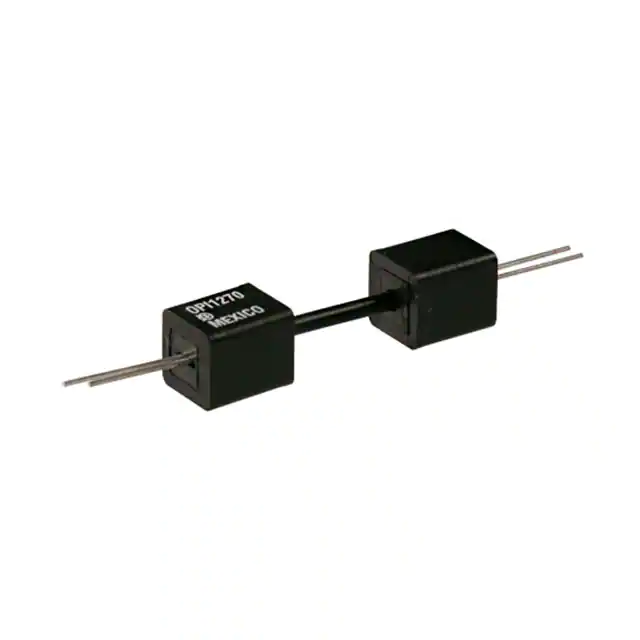

OPI1270-026OPTOISOLATOR TRANSISTOR AXIAL |
3,253 | 5.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 33V | - | 2.3V (Max) | - | - | -20°C ~ 75°C | Through Hole |
|
|
OPI1280-018OPTOISOLATOR TRANSISTOR |
2,519 | 5.93 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 33V | - | 2.3V (Max) | - | - | -20°C ~ 75°C | Through Hole |
|
|
OPI1280-026OPTOISOLATOR TRANSISTOR |
3,954 | 5.93 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 33V | - | 2.3V (Max) | - | - | -20°C ~ 75°C | Through Hole |
|
|
OPI1280-032OPTOISOLATOR TRANSISTOR |
2,211 | 5.93 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 33V | - | 2.3V (Max) | - | - | -20°C ~ 75°C | Through Hole |
|
|
OPI1280-066OPTOISOLATOR TRANSISTOR |
3,338 | 6.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | - | - | - | - | - | DC | Transistor | 33V | - | 2.3V (Max) | - | - | -20°C ~ 75°C | Through Hole |
|
|
OPI120-032OPTOISOLATOR TRANS |
2,501 | 9.89 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
OPI123OPTOISOLTR 15KV DARLINGTON AXIAL |
2,269 | 10.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 15000VDC | 50% @ 10mA | - | - | 40µs, 40µs | DC | Darlington | 20V | - | 1.5V (Max) | 150 mA | 1.2V | -55°C ~ 125°C | Through Hole |
|
|
3N244OPTOISOLATOR 1KV TRANS TO72-4 |
2,526 | 19.13 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | 1 | 1000VDC | 30% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N243OPTOISOLATOR 1KV TRANS TO72-4 |
3,843 | 18.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 15% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
3N245OPTOISOLATOR 1KV TRANS TO72-4 |
2,408 | 18.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 60% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
4N47UOPTOISO 1KV TRANS W/BASE 6LCC |
2,510 | 20.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 50% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 45V | - | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
.jpg)
|
HCC242OPTOISOLATOR 1KV TRANS 4-CLCC |
3,327 | 23.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
3N245TXOPTOISOLATOR 1KV TRANS TO72-4 |
3,104 | 24.21 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 60% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
JANTX4N47OPTOISO 1KV TRANS W/BASE TO78-6 |
3,539 | 25.12 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 50% @ 1mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
JANTX4N24OPTOISO 1KV TRANS W/BASE TO78-6 |
2,384 | 25.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
|
|
JANTX4N22OPTOISO 1KV TRANS W/BASE TO78-6 |
3,303 | 25.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1000VDC | 25% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | -55°C ~ 125°C | Through Hole |
