| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Color | Configuration | LensColor | LensTransparency | MillicandelaRating | LensStyle | LensSize | Voltage-Forward(Vf)(Typ) | Current-Test | ViewingAngle | MountingType | Wavelength-Dominant | Wavelength-Peak | Features | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

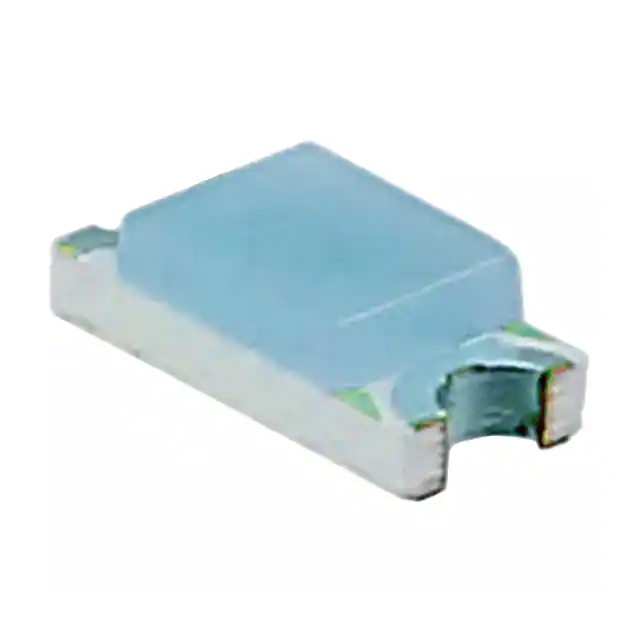

VAOL-S12SB4LED BLUE CLEAR 1206 SMD |
160 | 0.71 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue | Standard | Colorless | Clear | 50mcd | Rectangle with Flat Top | 2.00mm x 1.50mm | 3.5V | 20mA | 130° | Surface Mount | 471nm | 468nm | - | 3.20mm L x 1.50mm W |
|

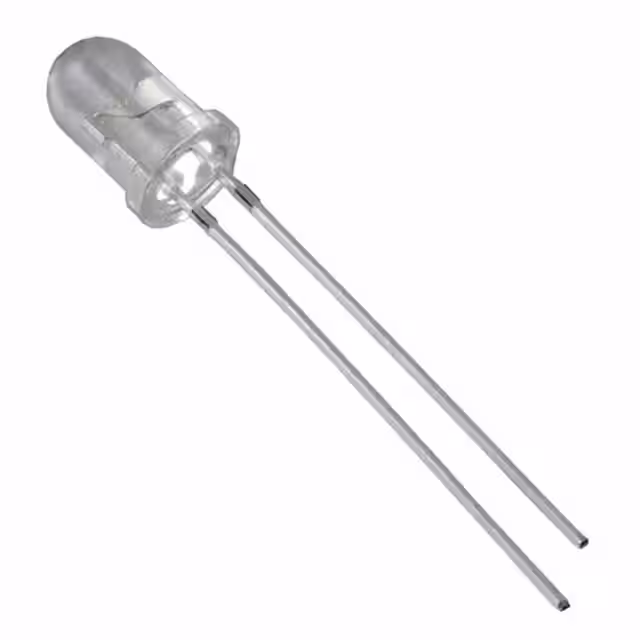

VAOL-5GBE4LED RED CLEAR T/H |
850 | 0.72 |
RFQ |
Datasheet |
Radial | Bulk | - | Obsolete | Red | Standard | Colorless | Clear | 200mcd | Round with Domed Top | 4.80mm Dia | 2V | 20mA | - | Through Hole | 625nm | 620nm | - | - |
|

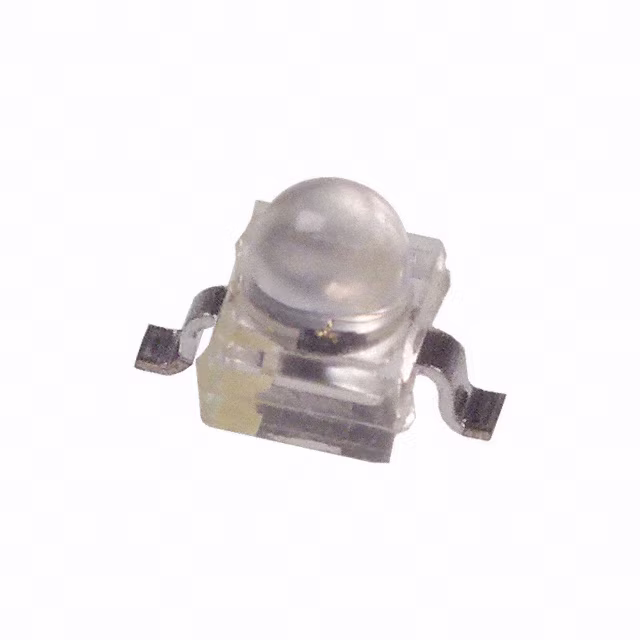

CMD95-21SRC/TR7LED RED CLEAR GULL WING SMD |
1,000 | 0.92 |
RFQ |
Datasheet |
2-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | - | Clear | 100mcd | Round with Domed Top | 1.80mm Dia | 1.7V | - | 25° | Surface Mount | - | 660nm | - | 2.20mm L x 2.10mm W |
|

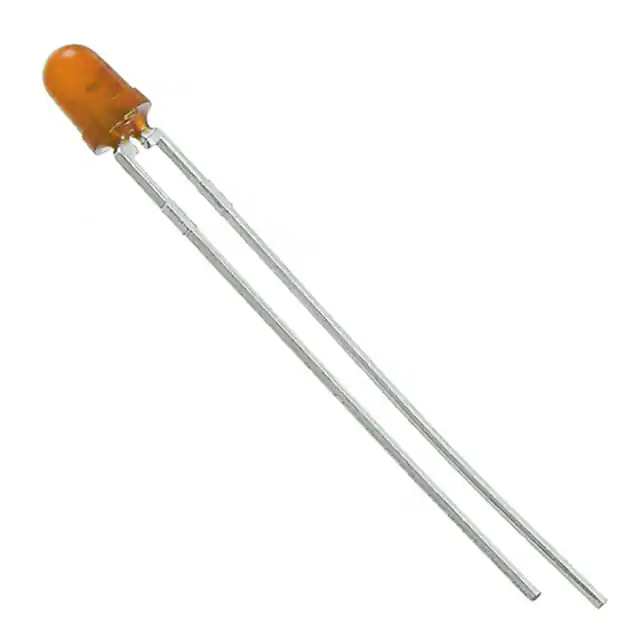

4302F3-12VLED AMBER DIFFUSED T-1 T/H |
372 | 0.92 |
RFQ |
Datasheet |
Radial | Bulk | - | Obsolete | Amber | Standard | Amber | Diffused | 8mcd | Round with Domed Top | 3mm, T-1 | 12V | 13mA | 60° | Through Hole | - | 583nm | - | - |
|

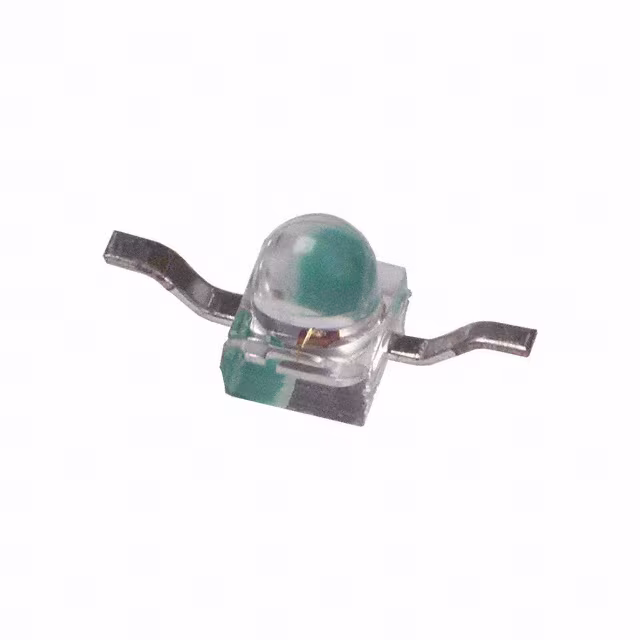

CMD95-21VRCTR10LED RED CLEAR Z-BEND SMD |
989 | 1.01 |
RFQ |
Datasheet |
2-SMD, Z-Bend | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | - | Clear | 25mcd | Round with Domed Top | 1.70mm Dia | 2V | - | 25° | Surface Mount, Bottom Entry | - | 640nm | - | 2.20mm L x 2.10mm W |
|
CMD12-21UGC/TR8LED GREEN CLEAR SMD R/A |
383 | 1.01 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | BrightAngle™ | Not For New Designs | Green | Standard | Colorless | Clear | 14.9mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.1V | - | 120° | Surface Mount, Right Angle | - | 570nm | - | 3.00mm L x 2.00mm W |
|
CMD11-21VGC/TR8LED GREEN CLEAR 1206 SMD |
3,656 | 0.78 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | - | Clear | 7.5mcd | Round with Flat Top | 1.10mm Dia | 2.1V | 20mA | 20° | Surface Mount | - | 570nm | - | 3.00mm L x 1.50mm W |
|

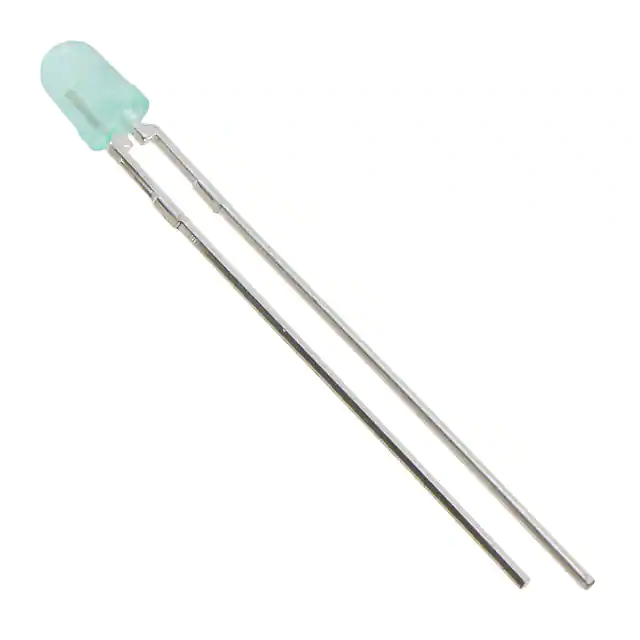

4300F5LCLED GREEN DIFFUSED T-1 T/H |
2,666 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Green | Standard | Green | Diffused | 1.6mcd | Round with Domed Top | 3mm, T-1 | 1.8V | 2mA | 50° | Through Hole | - | 565nm | - | - |
|

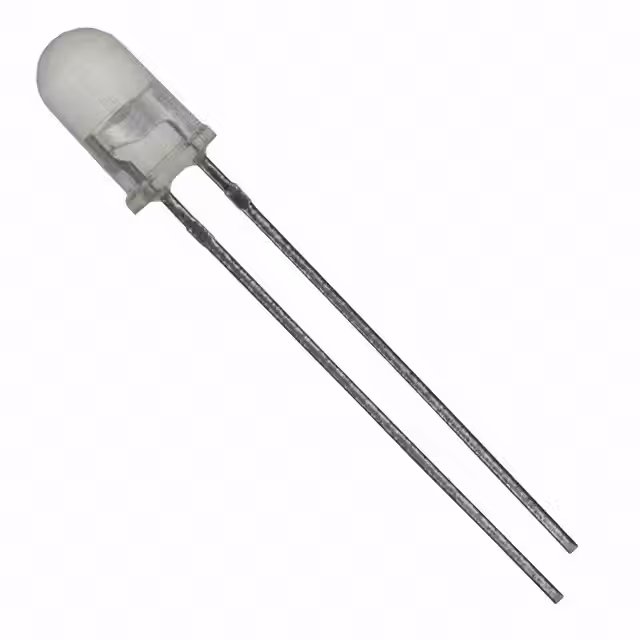

4308H7LED YELLOW CLEAR T-1 3/4 T/H |
3,540 | 0.92 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Yellow | Standard | Colorless | Clear | 140mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | 20mA | 24° | Through Hole | - | 583nm | - | - |
|
4302H5-12VLED GREEN DIFFUSED T-1 3/4 T/H |
2,350 | 1.18 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Green | Standard | Green | Diffused | 8mcd | Round with Domed Top | 5mm, T-1 3/4 | 12V | 13mA | 60° | Through Hole | - | 565nm | - | - |
|
VAOL-S2WR4LED WHITE DIFFUSED 2PLCC SMD |
3,672 | 1.34 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | White | Standard | Yellow | Diffused | 1258mcd | Round with Flat Top | 2.40mm Dia | 3.1V | 20mA | 120° | Surface Mount | - | - | - | 3.10mm L x 2.70mm W |
|

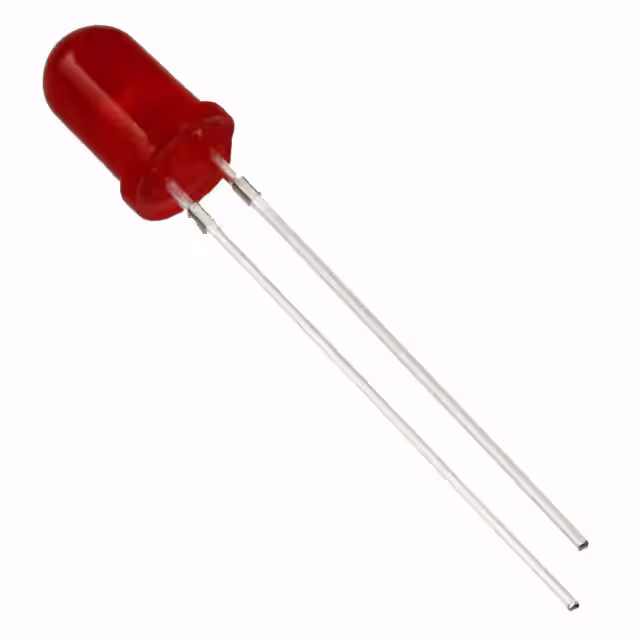

200-BRLED TH T-1 3/4 5MM 14MCD DIFFUSE |
3,009 | 1.10 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Red | - | - | Diffused | 14mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.6V | 20mA | 60° | Through Hole | - | 635nm | - | - |
|
VAOL-S2223RGBLED RGB CLEAR 4SMD |
2,831 | 3.30 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 72mcd Red, 180mcd Green, 45mcd Blue | Rectangle with Flat Top | 1.50mm x 1.00mm | 2V Red, 3.3V Green, 3.3V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 623nm Red, 525nm Green, 470nm Blue | 632nm Red, 518nm Green, 468nm Blue | - | 2.70mm L x 1.00mm W |
|
4301H1/1LED RED DIFFUSED T-1 3/4 T/H |
3,579 | 2.17 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Red | Standard | Red | Diffused | 20mcd | Round with Domed Top | 5mm, T-1 3/4 | 2V | 20mA | 60° | Through Hole | - | 625nm | - | - |
|
VAOL-5GCE4LED YELLOW CLEAR T/H |
3,460 | 0.15 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Yellow | Standard | Colorless | Clear | 380mcd | Round with Domed Top | 4.80mm Dia | 2V | 20mA | 30° | Through Hole | 590nm | - | - | - |
|
CMD95-21VYC/TR7LED YELLOW CLEAR GULL WING SMD |
3,153 | 0.26 |
RFQ |
Datasheet |
2-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | Standard | - | Clear | 25mcd | Round with Domed Top | 1.80mm Dia | 2V | - | 25° | Surface Mount | - | 585nm | - | 2.20mm L x 2.10mm W |
|
VAOB-10GADE2-CLED GREEN/RED DIFFUSED T/H |
3,216 | 0.27 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Green, Red | Common Cathode | - | Diffused | 80mcd Green, 100mcd Red | Round with Domed Top | 10.00mm Dia | 2V Green, 2.1V Red | 20mA Green, 20mA Red | - | Through Hole | 570nm Green, 640nm Red | - | - | - |
|
4300H1LCLED RED DIFFUSED T-1 3/4 T/H |
3,102 | 0.28 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Red | Standard | Red | Diffused | 2.3mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.8V | 2mA | 50° | Through Hole | - | 635nm | - | - |
|
|
LSM1208472VLED YELLOW CLEAR 2V 1208 SMD |
2,327 | 0.29 |
RFQ |
Datasheet |
1208 (3020 Metric) | Tape & Reel (TR) | LSM1208472V | Active | Yellow | - | Colorless | Clear | 18mcd | Rectangle with Flat Top | - | 2.1V | 20mA | 120° | Surface Mount | 590nm | 590nm | - | 3.00mm L x 2.00mm W |
|
|
4307T5LED GREEN DIFFUSED T/H |
2,020 | 0.31 |
RFQ |
Datasheet |
Axial | Bulk | - | Active | Green | Standard | Green | Diffused | 4mcd | Round with Domed Top | 1.78mm Dia | 2.3V | 10mA | 70° | Through Hole | - | 565nm | - | 2.03mm L x 2.21mm W |
