| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Color | Configuration | LensColor | LensTransparency | MillicandelaRating | LensStyle | LensSize | Voltage-Forward(Vf)(Typ) | Current-Test | ViewingAngle | MountingType | Wavelength-Dominant | Wavelength-Peak | Features | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMD11-21VYC/TR8LED YELLOW CLEAR 1206 SMD |
11,337 | 0.78 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | Standard | - | Clear | 6mcd | Round with Flat Top | 1.10mm Dia | 2V | 20mA | 20° | Surface Mount | - | 585nm | - | 3.00mm L x 1.50mm W |
|
|
CMD11-21SRC/TR8LED RED CLEAR 1206 SMD |
2,250 | 0.78 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | Red | Standard | - | Clear | 51mcd | Round with Flat Top | 1.10mm Dia | 1.7V | 20mA | 20° | Surface Mount | - | 660nm | - | 3.00mm L x 1.50mm W |
|
CMD91-21VGC/TR7LED GREEN CLEAR GULL WING SMD |
2,085 | 0.78 |
RFQ |
Datasheet |
2-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | - | Clear | 50mcd | Round with Domed Top | 1.90mm Dia | 2.1V | - | 25° | Surface Mount | - | 565nm | - | 2.50mm L x 2.00mm W |
|
7016X1LED RED CLEAR 1208 SMD |
2,508 | 0.92 |
RFQ |
Datasheet |
1208 (3020 Metric) | Tape & Reel (TR),Cut Tape (CT) | 7016X | Active | Red | Standard | Colorless | Clear | 6.3mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | 110° | Surface Mount | - | 650nm | - | 3.00mm L x 2.00mm W |
|

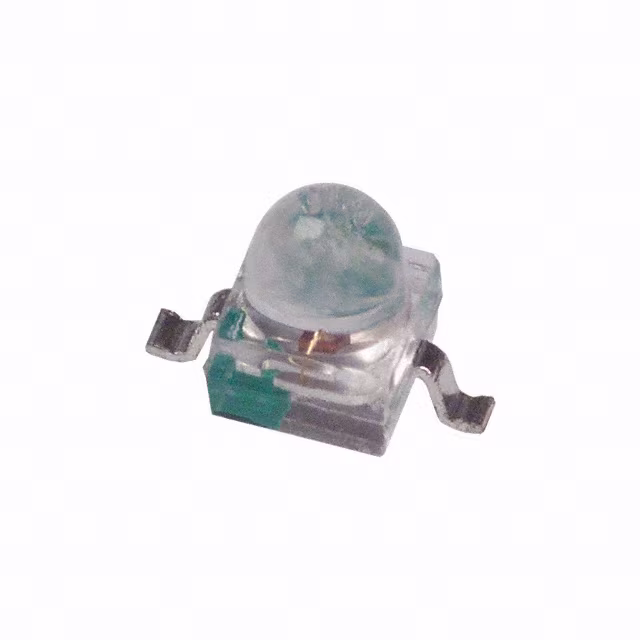

CMD95-21VRC/TR7LED RED CLEAR GULL WING SMD |
3,440 | 0.96 |
RFQ |
Datasheet |
2-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | - | Clear | 25mcd | Round with Domed Top | 1.80mm Dia | 2V | - | 25° | Surface Mount | - | 640nm | - | 2.20mm L x 2.10mm W |
|
CMD67-21VRC/TR8LED RED CLEAR SMD |
9,203 | 1.02 |
RFQ |
Datasheet |
2-PLCC | Tape & Reel (TR),Cut Tape (CT) | CMD67-21 | Active | Red | Standard | - | Clear | 10mcd | Round with Flat Top | 2.39mm Dia | 2V | - | 120° | Surface Mount | - | 640nm | - | 3.20mm L x 2.80mm W |
|
VAOL-10GAT4LED RED CLEAR T/H |
9,742 | 0.51 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Red | Standard | Colorless | Clear | 480mcd | Round with Domed Top | 10.00mm Dia | 1.8V | 20mA | 30° | Through Hole | 640nm | 655nm | - | - |
|
4305H7LED YELLOW CLEAR T-1 3/4 T/H |
1,164 | 0.61 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Yellow | Standard | Yellow | Clear | 160mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | 20mA | 30° | Through Hole | - | 585nm | - | - |
|

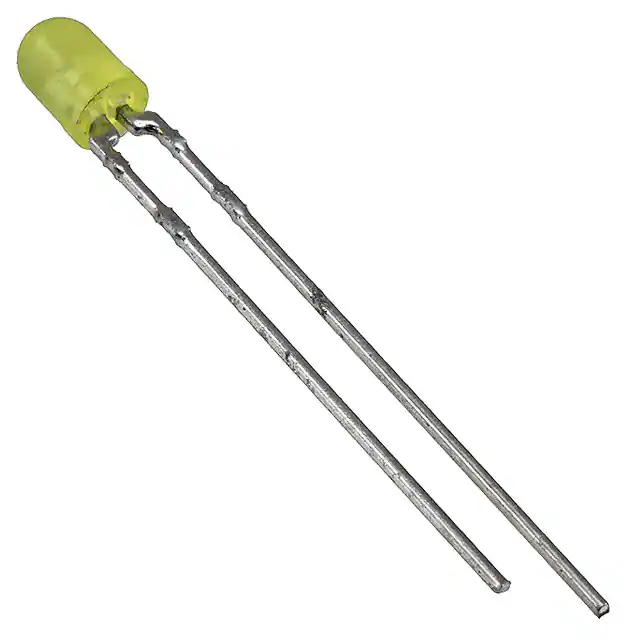

4303F7LED YELLOW DIFFUSED T-1 T/H |
1,583 | 0.66 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Yellow | Standard | Yellow | Diffused | 10mcd | Round with Domed Top | 3mm, T-1 | 2.1V | 10mA | 55° | Through Hole | - | 585nm | - | - |
|
VAOL-3HSBY4LED BLUE CLEAR T/H |
1,965 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Blue | Standard | Colorless | Clear | 2500mcd | Round with Domed Top | 3.00mm Dia | 3.5V | 20mA | 30° | Through Hole | 470nm | - | - | - |
|
4300F1LCLED RED DIFFUSED T-1 T/H |
1,013 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | - | Not For New Designs | Red | Standard | Red | Diffused | 1.8mcd | Round with Domed Top | 3mm, T-1 | 1.8V | 2mA | 50° | Through Hole | - | 635nm | - | - |
|
VAOL-S1513RGBLED RGB CLEAR 4SMD |
34,410 | 2.95 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 140mcd Red, 180mcd Green, 70mcd Blue | Rectangle with Flat Top | 2.00mm x 2.60mm | 2V Red, 3.3V Green, 3.3V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 624nm Red, 525nm Green, 470nm Blue | 632nm Red, 518nm Green, 468nm Blue | - | 3.20mm L x 2.60mm W |
|
VAOL-10GSBY4LED BLUE CLEAR T/H |
10,310 | 1.34 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Blue | Standard | Colorless | Clear | 7000mcd | Round with Domed Top | 10.00mm Dia | 3.5V | 20mA | 30° | Through Hole | - | 470nm | - | - |
|
CMD17-21UGC/TR8LED GREEN CLEAR 0805 SMD |
61,208 | 0.71 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CMD17-21 | Obsolete | Green | Standard | Colorless | Clear | 15mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 2.1V | 20mA | 140° | Surface Mount | - | 570nm | - | 2.00mm L x 1.25mm W |
|
VAOL-S12YP4LED YELLOW CLEAR 1206 SMD |
1,825 | 0.40 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Yellow | Standard | Colorless | Clear | 76mcd | Rectangle with Flat Top | 2.00mm x 1.50mm | 2V | 20mA | 130° | Surface Mount | 589nm | 591nm | - | 3.20mm L x 1.50mm W |
|

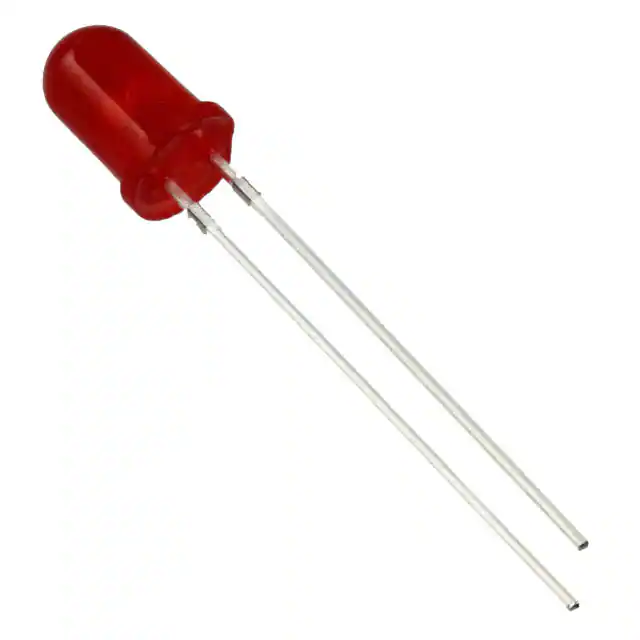

VAOL-5LAE2LED RED DIFFUSED T/H |
1,841 | 0.44 |
RFQ |
Datasheet |
Radial | Bulk | - | Obsolete | Red | Standard | Red | Diffused | 80mcd | Round with Domed Top | 4.80mm Dia | 2.2V | 20mA | 60° | Through Hole | 640nm | - | - | - |
|
CMD11504GLED GREEN CLEAR SMD R/A |
2,660 | 0.51 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | BrightAngle™ | Obsolete | Green | Standard | Colorless | Clear | 16mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.1V | - | 100° | Surface Mount, Right Angle | - | 560nm | - | 3.00mm L x 2.00mm W |
|
VAOL-S8RP4LED RED CLEAR 0805 SMD |
1,795 | 0.51 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 69mcd | Rectangle with Flat Top | 2.00mm x 1.25mm | 2V | 20mA | 140° | Surface Mount | 624nm | 632nm | - | 2.00mm L x 1.25mm W |
|
|
7016X3LED YELLOW CLEAR 1208 SMD |
1,740 | 0.56 |
RFQ |
Datasheet |
1208 (3020 Metric) | Tape & Reel (TR),Cut Tape (CT) | 7016X | Obsolete | Yellow | Standard | Colorless | Clear | 6.3mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2.1V | 20mA | 110° | Surface Mount | - | 585nm | - | 3.00mm L x 2.00mm W |
|
CMD6722VRVGCTR8LED GREEN/RED CLEAR SMD |
2,664 | 1.89 |
RFQ |
Datasheet |
4-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Green, Red | Independent | - | Clear | 25mcd Green, 10mcd Red | Round with Flat Top | 2.40mm Dia | 2.1V Green, 2V Red | 20mA Green, 20mA Red | 120° | Surface Mount | - | 570nm Green, 640nm Red | - | 3.20mm L x 2.80mm W |
