| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23157RSERIC SWITCH DUAL SPDT 10UQFN |
2,971 | 0.93 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS5A23167YZPRIC SWITCH DUAL SPST 8DSBGA |
98,779 | 0.83 |
RFQ |
Datasheet |
8-XFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NC | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS5A22364DRCRIC SWITCH DUAL SPDT 10SON |
94,083 | 1.02 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS3A4751PWRIC SWITCH QUAD SPST 14TSSOP |
2,156 | 1.67 |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 14ns, 9ns | 125MHz | 3pC | 23pF, 20pF | 2nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
CD74HC4051NSIC MUX/DEMUX 8X1 16SO |
1,300 | 0.23 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SN74HC4061NBINARY COUNTER, HC/UH SERIES |
3,474 | 1.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SN74LV4066APWR-MXHIT CHIP/MTEX ASSY |
2,954 | 1.00 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
CD74HC4052ES2091DIFFERENTIAL MULTIPLEXER, 1 FUNC |
2,884 | 1.00 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
TMUX7219MDGKR44-V, LOW RON, 2:1, 1 CH LATCH-U |
2,243 | 5.31 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 2.8Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 168ns, 180ns | 37MHz | -16pC | 34pF, 48pF | 5nA | -106dB @ 1MHz | -55°C ~ 125°C (TA) | Surface Mount |
|
TMUX7209PWR44-V, LATCH-UP IMMUNE, 4:1, TWO- |
2,244 | 6.46 |
RFQ |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 4PST - NO | 4:1 | 2 | 5.5Ohm | 700mOhm | ±4.5V ~ 22V, 4.5V ~ 44V | ±4.5V ~ 22V, 4.5V ~ 44V | 205ns, 300ns | 51MHz | -5pC | 15pF, 67pF | 1nA | -85dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX6209PWR36-V, LOW RON, 4:1, TWO-CHANNEL |
2,273 | 0.00 |
RFQ |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | - | Active | 4PST - NO | 4:1 | 2 | 6.2Ohm | 700mOhm | ±4.5V ~ 18V, 4.5V ~ 36V | ±4.5V ~ 18V, 4.5V ~ 36V | 200ns, 290ns | 52MHz | 2pC | 15pF, 68pF | 400pA | -85dB @ 100kHz | -40°C ~ 125°C (TA) | ||
|
|
TMUX6213PWR2.2-NV/HZ, LOW-POWER, 36-V OPERA |
3,213 | 6.30 |
RFQ |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V, ±4.5V ~ 16V | 4.5V ~ 36V, ±4.5V ~ 16V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|

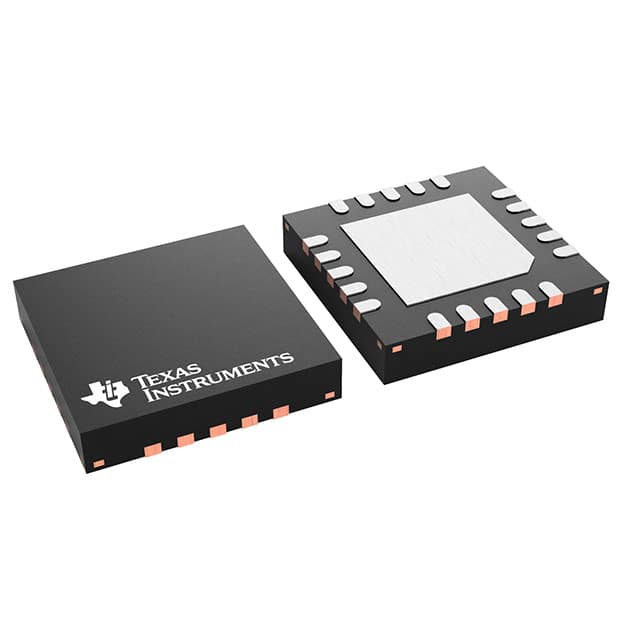

TMUX7234RRQR2.2-NV/HZ, LOW-POWER, 36-V OPERA |
2,014 | 7.32 |
RFQ |
20-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT - NO/NC | 2:1 | 4 | 5.8Ohm | 200mOhm | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 44V, ±4.5V ~ 22V | 100ns, 90ns | 92MHz | 3pC | 16pF, 26pF | 1nA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX8108PWR100-V, FLAT RON, SINGLE 8:1 MULT |
2,445 | 7.69 |
RFQ |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8PST | 8:1 | 1 | 50Ohm | 500mOhm | 10V ~ 100V, ±10V ~ 50V | 10V ~ 100V, ±10V ~ 50V | 1µs, 700ns (Typ) | 200MHz | 200pC | 5pF, 20pF | 60pA (Typ) | -100dB @ 100kHz | -40°C ~ 125°C | Surface Mount | |
|
|
TMUX8109PWR100-V, FLAT RON, DUAL 4:1 MULTIP |
3,996 | 4.88 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | - | Active | SP4T | 4:1 | 2 | 48Ohm | 650mOhm | 10V ~ 100V | ±10V ~ 50V | 3µs, 650ns (Typ) | 380MHz | -150pC | 3pF, 10pF | 20pA (Typ) | -110dB @ 1MHz | -40°C ~ 125°C | Surface Mount |
|

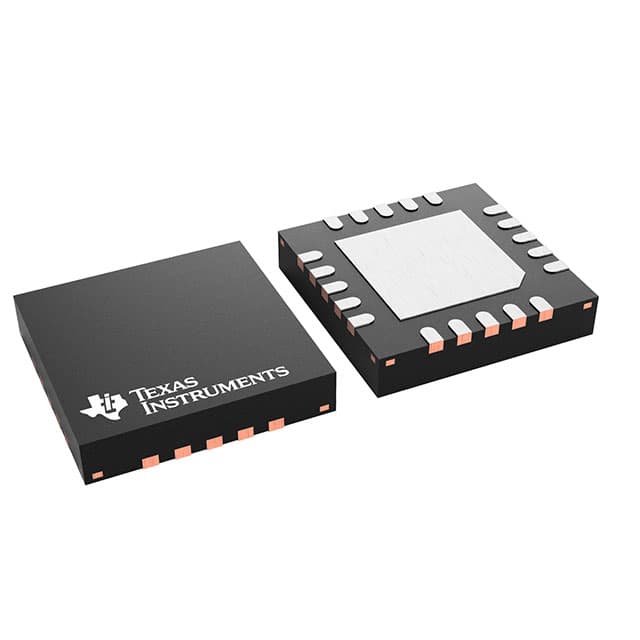

TMUX6234RRQR2.2-NV/HZ, LOW-POWER, 36-V OPERA |
2,693 | 7.83 |
RFQ |
20-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 36V, ±4.5V ~ 18V | 95ns, 85ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|

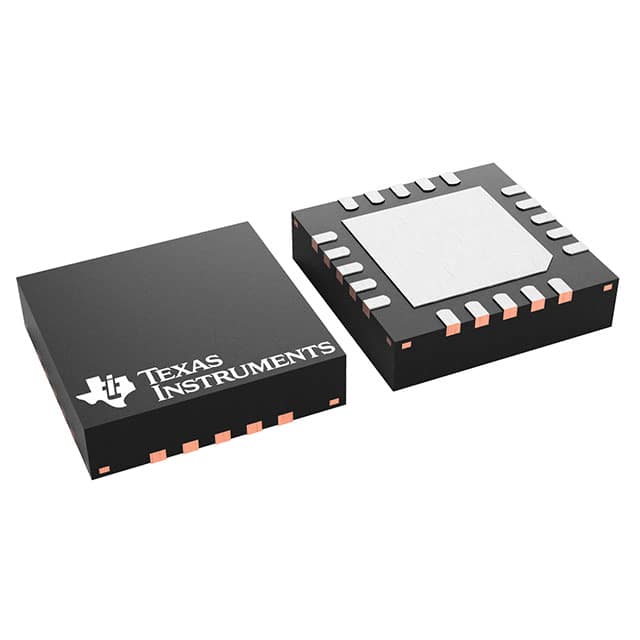

TMUX7348FRTJR60V FAULT-PROTECTED, 8:1 MULTIPL |
2,621 | 10.09 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP8T | 8:1 | 1 | 250Ohm | 2.5Ohm | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 300ns, 400ns | 150MHz | -17pC | 3.5pF, 28pF | 1nA | -95dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
SNJ54HC4066FKMULTIPLEXERS/SWITCHES, 4 FUNC |
3,303 | 7.19 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74AUC1G66DBVRIC SWITCH 1X1 SOT23-5 |
77,985 | 0.09 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 15Ohm | - | 0.8V ~ 2.7V | - | 1.4ns, 1.5ns | 50MHz | - | 2pF | 1µA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
SN74AUC1G66DCKRIC SWITCH 1X1 SC70-5 |
47,500 | 0.09 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 15Ohm | - | 0.8V ~ 2.7V | - | 1.4ns, 1.5ns | 50MHz | - | 2pF | 1µA | - | -40°C ~ 85°C (TA) | Surface Mount |
