| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23166YZPRIC SWITCH DUAL SPST 8DSBGA |
3,842 | 0.92 |
RFQ |
Datasheet |
8-XFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS5A23157TDGSRQ1IC SWITCH SPDT DUAL 10VSSOP |
1,450 | 1.10 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Active | SPDT | 2:1 | 2 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 105°C (TA) | Surface Mount |
|
TMUX136RSERIC SWITCH SPDT DUAL 10UQFN |
2,883 | 1.13 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | Surface Mount |
|

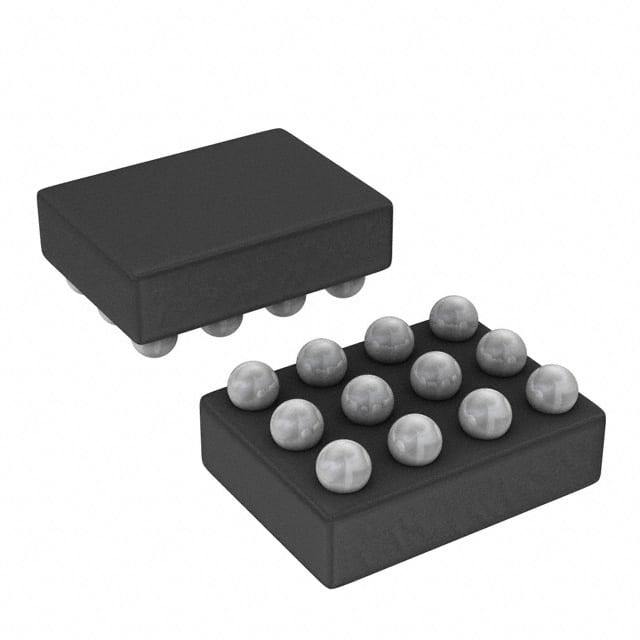

TS5A22366YFCRIC SWITCH DUAL SPDT 12DSBGA |
282,346 | 1.14 |
RFQ |
Datasheet |
12-UFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 1Ohm | 100mOhm | 2.25V ~ 5.5V | - | 374ns, 325ns | 32MHz | 168pC | 48pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TS3A24157RSERIC SWITCH DUAL SPDT 10UQFN |
2,195 | 1.00 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 600mOhm | 50mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 50MHz | 8.75pC | 50pF | 50nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS3A44159RGTRIC SWITCH QUAD SPDT 16VQFN |
3,765 | 1.20 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 4 | 450mOhm | 50mOhm | 1.65V ~ 4.3V | - | 23ns, 32ns | 35MHz | 139pC | 50pF | 20nA | -73dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TMUX154ERSWRIC SWITCH SPDT DUAL 10UQFN |
3,000 | 1.22 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 10Ohm | 350mOhm | 3V ~ 4.3V | - | 30ns, 25ns | 900MHz | - | 2pF, 7.5pF | 1µA | -97dB @ 1MHz | -40°C ~ 85°C | Surface Mount |
|
|
TMUX1072DGSRIC SWITCH SPDT DUAL 10VSSOP |
3,472 | 1.34 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 18Ohm | 70mOhm | 2.3V ~ 5.5V | - | 250µs, 10µs | 1.2GHz | - | 4pF, 4pF | 185µA | -90dB @ 100kHz | -40°C ~ 125°C | Surface Mount |
|
TS5A22362YZPRIC SWITCH DUAL SPDT 10DSBGA |
2,008 | 1.00 |
RFQ |
Datasheet |
10-XFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS5A3159DCKTIC SWITCH SPDT SC70-6 |
3,878 | 1.00 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 1 | 1.1Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 2nA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
CD74HCT4051MTIC MUX/DEMUX 8X1 16SOIC |
2,383 | 1.21 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 180MHz | - | 5pF, 25pF | 400nA | - | -55°C ~ 125°C (TA) | Surface Mount |
|
CD74HC4016MTIC SWITCH QUAD 1X2 14SOIC |
3,288 | 1.43 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 170Ohm | 8.5Ohm | 2V ~ 10V | - | - | 20MHz | - | 10pF | 100nA | - | -55°C ~ 125°C (TA) | Surface Mount |
|
|
TS3A5017DIC SWITCH DUAL SP4T 16SOIC |
880 | 0.97 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SP4T | 4:1 | 2 | 12Ohm | 1Ohm | 2.3V ~ 3.6V | - | 9.5ns, 3.5ns | 165MHz | 5pC | 4.5pF, 19pF | 100nA | -49dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
TS3A5017PWIC SWITCH QUAD SP4T 16TSSOP |
3,414 | 0.97 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | SP4T | 4:1 | 2 | 12Ohm | 1Ohm | 2.3V ~ 3.6V | - | 9.5ns, 3.5ns | 165MHz | 5pC | 4.5pF, 19pF | 100nA | -49dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
CD74HCT4053MIC MUX/DEMUX TRIPLE 2X1 16SOIC |
711 | 1.07 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPDT | 2:1 | 3 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 200MHz | - | 5pF, 8pF | 100nA | - | -55°C ~ 125°C (TA) | Surface Mount |
|
|
SN74HC4066DIC SWITCH QUAD 1X1 14SOIC |
1,151 | 1.16 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
SN74HC4066PWIC SWITCH QUAD 1X1 14TSSOP |
6,794 | 1.16 |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
SN74LV4053APWIC MUX/DEMUX TRIPLE 2X1 16TSSOP |
3,665 | 1.20 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPDT | 2:1 | 3 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 8.2pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
SN74LV4066ADIC SWITCH QUAD 1X1 14SOIC |
5,345 | 1.21 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Bulk,Tube | - | Active | SPST - NO | 1:1 | 4 | 75Ohm | 2Ohm | 2V ~ 5.5V | - | 12ns, 12ns | 50MHz | - | 0.5pF, 5.5pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
CD4053BPWIC MUX/DEMUX TRIPLE 2X1 16TSSOP |
5,153 | 1.21 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | SPDT | 2:1 | 3 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 30MHz | - | 0.2pF, 9pF | 100nA | -40dB @ 6MHz | -55°C ~ 125°C (TA) | Surface Mount |
