| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | BreakingCapacity@RatedVoltage | MeltingI²t | ApprovalAgency | OperatingTemperature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

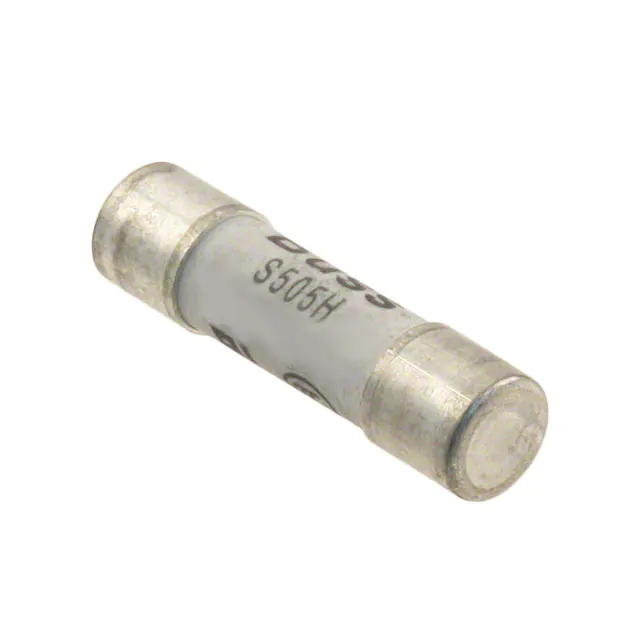

BK1-S505H-8-RFUSE CERM 8A 500VAC 400VDC 5X20 |
1,674 | 2.13 |
RFQ |
Datasheet |
Bulk | S505H | Active | Holder | Cartridge, Ceramic | 8 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 1.5kA | 228.2 | CQC, cULus, PSE/JET, TUV | -40°C ~ 85°C | |
|
BK/MDA-1-1/2-RFUSE CERAMIC 1.5A 250VAC 3AB 3AG |
3,992 | 2.17 |
RFQ |
Datasheet |
Bulk | MDA | Active | Holder | Cartridge, Ceramic | 1.5 A | 250 V | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 100A | 27.5 | CE, CSA, UL | - | |
|
BK/S506-10-RFUSE GLASS 10A 250VAC 5X20MM |
1,399 | 2.26 |
RFQ |
Datasheet |
Bulk | S506 | Active | Holder | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 5mm x 20mm | 100A | 450 | BSI, CSA, cULus, IMQ, PSE/JET, SEMKO, VDE | - | |
 Series.jpg)
|
BK/PCC-1-RFUSE BOARD MNT 1A 250VAC 450VDC |
2,199 | 2.33 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 450 V | Fast Blow | Radial, Box | 50A AC, 5.9kA DC | 0.02 | CSA, UL | - | |
|
C308F100MA-TR1FUSE CERAMIC 100MA 250VAC/VDC |
1,060 | 5.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Surface Mount | Cartridge, Ceramic | 100 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard | 4kA | 0.00087 | cURus | -55°C ~ 125°C | |
|
BK/MDL-1/8-RFUSE GLASS 125MA 250VAC 3AB 3AG |
5,708 | 2.60 |
RFQ |
Datasheet |
Bulk | MDL | Active | Holder | Cartridge, Glass | 125 mA | 250 V | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 35A | 0.0422 | CE, CSA, UL | - | |
|
|
BK/PCB-4-RFUSE BRD MNT 4A 450VDC RADIAL |
1,185 | 3.02 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | - | 450 V | Fast Blow | Radial, Box | 2.5kA | - | CSA, UL | - | |
|
BK/ABC-1/4-RFUSE CERAMIC 250MA 250VAC 125VDC |
3,323 | 3.12 |
RFQ |
Datasheet |
Bulk | ABC | Active | Holder | Cartridge, Ceramic | 250 mA | 250 V | 125 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 35A AC, 10kA DC | 0.002 | CSA, UL | - | |
|
|
BK/PCC-2-RFUSE BOARD MNT 2A 250VAC 450VDC |
3,717 | 2.96 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | Radial, Box | 50A AC, 5.9kA DC | 0.2 | CSA, UL | - | |
|
1245HC100-RTRFUSE BRD 100A 125VAC 72VDC 2SMD |
17,110 | 6.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 1245HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 A | 125 V | 72 V | Fast Blow | 2-SMD, Square End Block | 500A AC, 1kA DC | 5000 | cURus, UL | -55°C ~ 125°C | |
|
BK/GMA-250-RFUSE GLASS 250MA 250VAC 5X20MM |
4,824 | 3.42 |
RFQ |
Datasheet |
Bulk | GMA | Active | Holder | Cartridge, Glass | 250 mA | 250 V | - | Fast Blow | 5mm x 20mm | 35A | 0.018 | CSA, PSE, UL | - | |
|

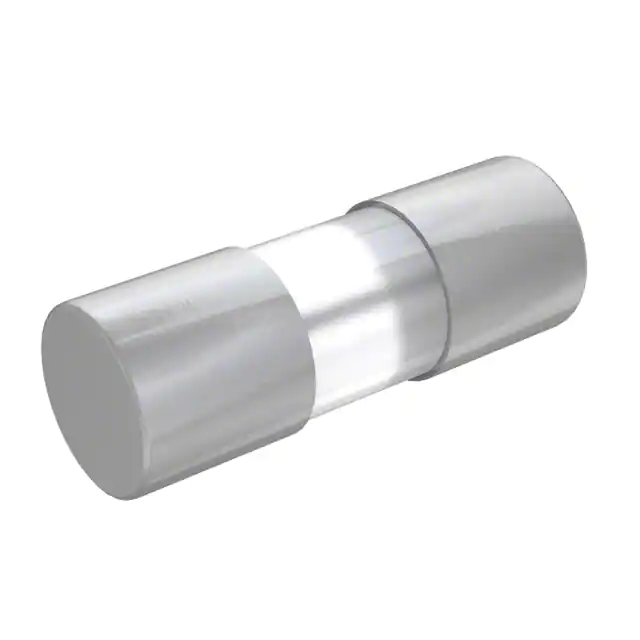

BK/C520-250-RFUSE GLASS 250MA 250VAC 2AG |
713 | 3.86 |
RFQ |
Datasheet |
Bulk | C520 | Active | Holder | Cartridge, Glass | 250 mA | 250 V | - | Fast Blow | 2AG, 5mm x 15mm | 35A | 0.012 | CSA, UL | - | |
|

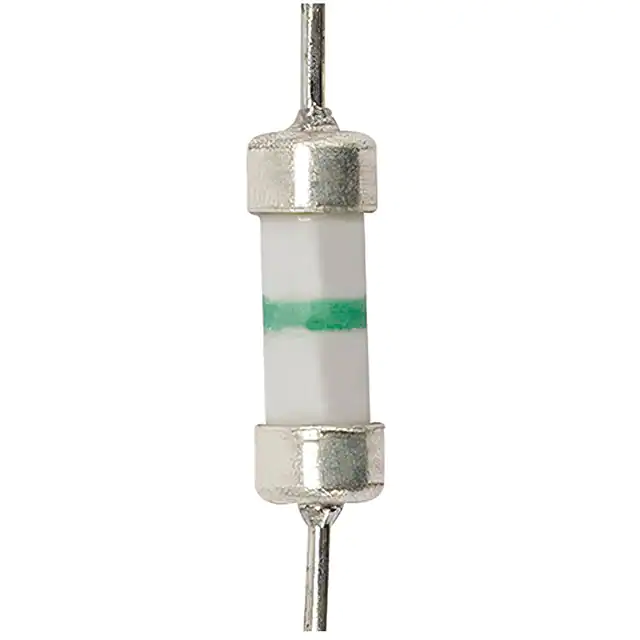

C308F-V-50MA-TR1FUSE CERAMIC 50MA 250VAC/VDC |
1,577 | 8.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Through Hole | Cartridge, Ceramic | 50 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard (Axial) | 4kA | 0.0001 | cURus | -55°C ~ 125°C | |
|
BK1/TDC10-60-RFUSE GLASS 60MA 1000VAC 3AB 3AG |
330 | 4.83 |
RFQ |
Datasheet |
Bulk | TDC10 | Active | Holder | Cartridge, Glass | 60 mA | 1000 V | - | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 600mA | - | - | - | |
|
GMC-2-RFUSE GLASS 2A 250VAC 5X20MM |
871 | 4.89 |
RFQ |
Datasheet |
Bulk | GMC | Active | Holder | Cartridge, Glass | 2 A | 250 V | - | Medium Blow | 5mm x 20mm | 100A | 8.9 | CSA, KC-MARK, MITI, UL | - | |
|
BK/GBB-8-RFUSE CERM 8A 250VAC/125VDC 3AB |
4,468 | 6.47 |
RFQ |
Datasheet |
Bulk | GBB | Active | Holder | Cartridge, Ceramic | 8 A | 250 V | 125 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | - | CSA, UR | - | |
|
|
BK/GBB-15-RFUSE CERM 15A 250VAC/125VDC 3AB |
315 | 15.74 |
RFQ |
Datasheet |
Bulk | GBB | Active | Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | - | CSA, UR | - | |
|
CC06FA1A-TRFUSE BOARD MOUNT 1A 63VDC 0603 |
17,235 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CC06FA | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Fast Blow | 0603 (1608 Metric) | 50A | 0.007 | UR | - | |
|
|
CC06FA1-5A-TRFUSE BOARD MOUNT 1.5A 63VDC 0603 |
9,399 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CC06FA | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 63 V | Fast Blow | 0603 (1608 Metric) | 50A | 0.0319 | UR | -55°C ~ 125°C | |
|
|
CC06FA500MA-TRFUSE BOARD MNT 500MA 63VDC 0603 |
15,761 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CC06FA | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 63 V | Fast Blow | 0603 (1608 Metric) | 50A | 0.0019 | UR | -55°C ~ 125°C |
