| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | BreakingCapacity@RatedVoltage | MeltingI²t | ApprovalAgency | OperatingTemperature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C308F200MA-TRFUSE CERM 200MA 250VAC/VDC |
897 | 5.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Surface Mount | Cartridge, Ceramic | 200 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard | - | 0.0024 | cURus | -55°C ~ 125°C | |
 Series.jpg)
|
BK/PCC-3/4-RFUSE BRD MNT 750MA 250VAC 450VDC |
1,414 | 2.68 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 250 V | 450 V | Fast Blow | Radial, Box | 50A AC, 5.9kA DC | 0.016 | CSA, UL | - | |
|

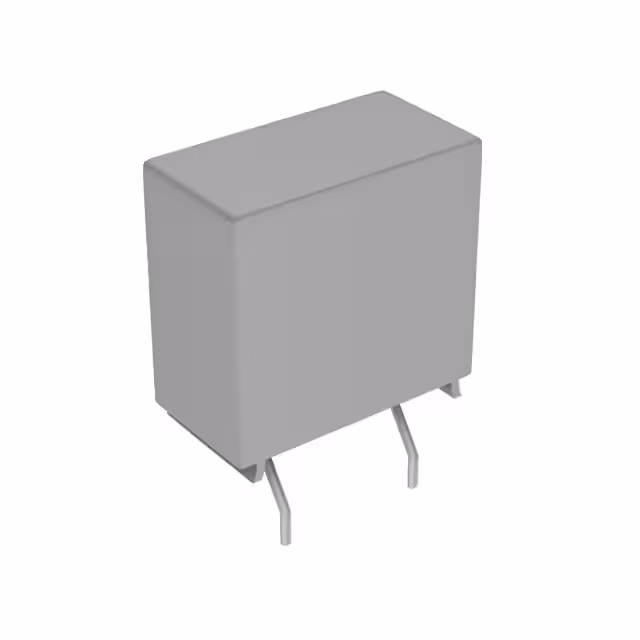

BK/PCH-2-1/2-RFUSE BRD MNT 2.5A 250VAC 450VDC |
476 | 4.89 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | Radial, Box | 50A AC, 5.9kA DC | 0.3 | CSA, UL | - | |
|
BK/S505-12-RFUSE CERAMIC 12A 250VAC 5X20MM |
154 | 4.95 |
RFQ |
Datasheet |
Bulk | S505 | Active | Holder | Cartridge, Ceramic | 12 A | 250 V | - | Slow Blow | 5mm x 20mm | 1kA | 713.7 | cULus, VDE | - | |
|
BK/S506-40-RFUSE GLASS 40MA 250VAC 5X20MM |
108 | 3.05 |
RFQ |
Datasheet |
Bulk | S506 | Active | Holder | Cartridge, Glass | 40 mA | 250 V | - | Slow Blow | 5mm x 20mm | 35A | 0.0072 | BSI, CCC, IMQ, SEMKO, UL, VDE | - | |
|
BK-S505H-V-10-RFUSE CERM 10A 600VAC 400VDC 5X20 |
1,000 | 3.21 |
RFQ |
Datasheet |
Bulk | S505H | Active | Through Hole | Cartridge, Ceramic | 10 A | 600 V | 400 V | Slow Blow | 5mm x 20mm (Axial) | 1.5kA | 349.5 | cULus, PSE/JET | -40°C ~ 85°C | |
|
|
BK-S505H-V-2-RFUSE CERM 2A 600VAC 400VDC 5X20 |
953 | 3.21 |
RFQ |
Datasheet |
Bulk | S505H | Active | Through Hole | Cartridge, Ceramic | 2 A | 600 V | 400 V | Slow Blow | 5mm x 20mm (Axial) | 1.5kA | 11.44 | cULus, PSE/JET | -40°C ~ 85°C | |
|
BK/MDL-7-1/2-RFUSE GLASS 7.5A 250VAC 3AB 3AG |
201 | 3.48 |
RFQ |
Datasheet |
Bulk | MDL | Active | Holder | Cartridge, Glass | 7.5 A | 250 V | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | - | - | - | - | |
|
BK/S501-V-63R81FUSE CERAMIC 63MA 250VAC 5X20MM |
1,000 | 3.82 |
RFQ |
Datasheet |
Bulk | S501 | Active | Through Hole | Cartridge, Ceramic | 63 mA | 250 V | - | Fast Blow | 5mm x 20mm (Axial) | 1.5kA | 0.0005 | CCC, CSA, cULus | - | |
|

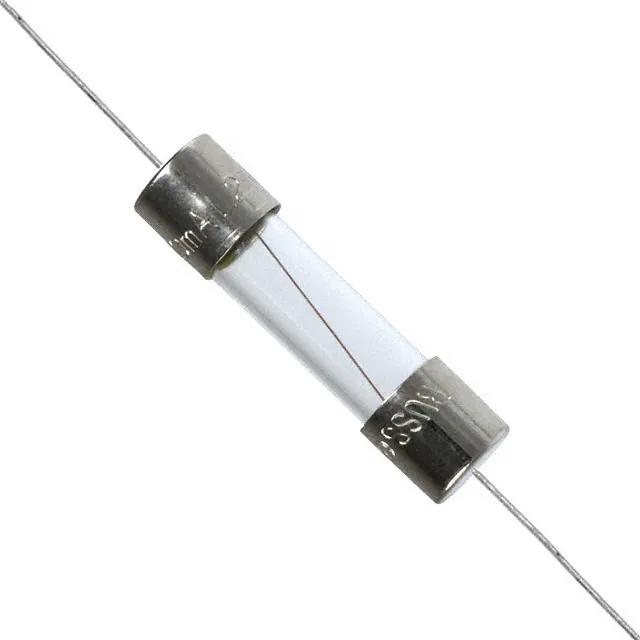

BK/S506-V-50-RFUSE GLASS 50MA 250VAC 5X20MM |
321 | 3.96 |
RFQ |
Datasheet |
Bulk | S506 | Active | Through Hole | Cartridge, Glass | 50 mA | 250 V | - | Slow Blow | 5mm x 20mm (Axial) | 35A | 0.0095 | BSI, CCC, CSA, IMQ, SEMKO, UR, VDE | - | |
|
|
BK/PCH-3-RFUSE BOARD MNT 3A 250VAC/450VDC |
1,052 | 5.20 |
RFQ |
Datasheet |
Bulk | PC-Tron® | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | 450 V | Fast Blow | Radial, Box | 50A AC, 4.4kA DC | 0.75 | CSA, UL | - | |
|
|
BK/S506-200-RFUSE GLASS 200MA 250VAC 5X20MM |
147 | 5.63 |
RFQ |
Datasheet |
Bulk | S506 | Active | Holder | Cartridge, Glass | 200 mA | 250 V | - | Slow Blow | 5mm x 20mm | 35A | 0.114 | BSI, CCC, CSA, IMQ, SEMKO, UR, VDE | - | |
|
BK/S501-63-RFUSE CERAMIC 63MA 250VAC 5X20MM |
306 | 5.77 |
RFQ |
Datasheet |
Bulk | S501 | Active | Holder | Cartridge, Ceramic | 63 mA | 250 V | - | Fast Blow | 5mm x 20mm | 1.5kA | 0.0005 | CCC, CSA, cULus | - | |
|
BK1/TDC11-500-RFUSE GLASS 500MA 1KVAC 3AB 3AG |
761 | 6.59 |
RFQ |
Datasheet |
Bulk | TDC11 | Active | Holder | Cartridge, Glass | 500 mA | 1 kV | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 5A | - | - | - | |
|
BK/GBB-3-RFUSE CERM 3A 250VAC/125VDC 3AB |
726 | 7.24 |
RFQ |
Datasheet |
Bulk | GBB | Active | Holder | Cartridge, Ceramic | 3 A | 250 V | 125 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | - | CSA, UR | - | |
|
|
BK/GBB-4-RFUSE CERM 4A 250VAC/125VDC 3AB |
394 | 7.63 |
RFQ |
Datasheet |
Bulk | GBB | Active | Holder | Cartridge, Ceramic | 4 A | 250 V | 125 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | - | CSA, UR | - | |
|
BK1/TDC11-150-RFUSE GLASS 150MA 1KVAC 3AB 3AG |
382 | 9.84 |
RFQ |
Datasheet |
Bulk | TDC11 | Active | Holder | Cartridge, Glass | 150 mA | 1 kV | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 1.5A | - | - | - | |
|
BK/S500-32-RFUSE GLASS 32MA 250VAC 5X20MM |
205 | 10.14 |
RFQ |
Datasheet |
Bulk | S500 | Active | Holder | Cartridge, Glass | 32 mA | 250 V | - | Fast Blow | 5mm x 20mm | 35A | 4.7E-05 | - | - | |
|
|
BK1/TDC11-50-RFUSE GLASS 50MA 1KVAC 3AB 3AG |
750 | 11.31 |
RFQ |
Datasheet |
Bulk | - | Active | Holder | Cartridge, Glass | 50 mA | 1 kV | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 500mA | - | - | - | |
|
CC06FA1-25A-TRFUSE BOARD MNT 1.25A 63VDC 0603 |
8,435 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CC06FA | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 63 V | Fast Blow | 0603 (1608 Metric) | 50A | 0.008 | UR | -55°C ~ 125°C |
