| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | BreakingCapacity@RatedVoltage | MeltingI²t | ApprovalAgency | OperatingTemperature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

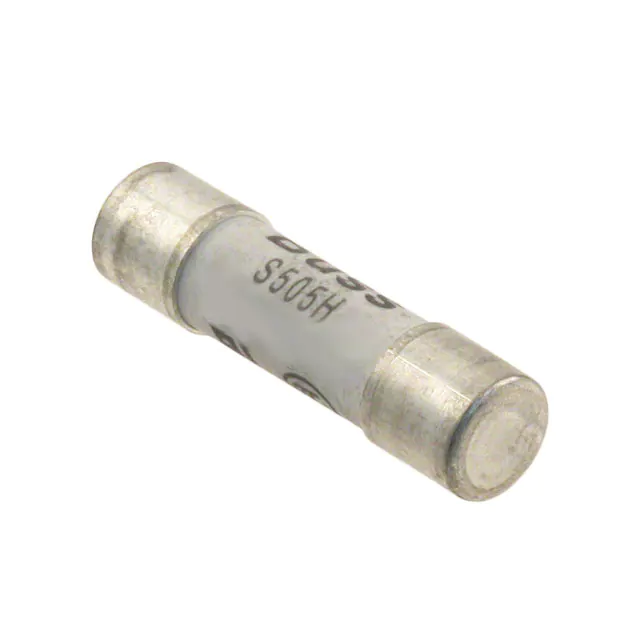

BK1-S505H-16-RFUSE 500V 5X20MM CART 16A |
2,000 | 2.13 |
RFQ |
Datasheet |
Bulk | S505H | Active | Holder | Cartridge, Ceramic | 1.6 A | 600 V | 400 V | Slow Blow | 5mm x 20mm | 100A | 6.78 | CCC, cURus, PSE/JET, UL | -55°C ~ 125°C | |
|
|
BK1-S505H-12-RFUSE 500V 5X20MM CART 12A |
1,975 | 2.13 |
RFQ |
Datasheet |
Bulk | S505H | Active | Holder | Cartridge, Ceramic | 12 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 200A | 550 | cURus, UL | -55°C ~ 125°C | |
|
|
BK1-S505H-15-RFUSE 500V 5X20MM CART 15A |
1,965 | 2.13 |
RFQ |
Datasheet |
Bulk | S505H | Active | Holder | Cartridge, Ceramic | 15 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 200A | 900 | cURus, UL | -55°C ~ 125°C | |
|
|
BK1-S505H-20-RFUSE 500V 5X20MM CART 20A |
1,955 | 2.13 |
RFQ |
Datasheet |
Bulk | S505H | Active | Holder | Cartridge, Ceramic | 20 A | 500 V | - | Slow Blow | 5mm x 20mm | 200A | 1500 | cURus, UL | -55°C ~ 125°C | |
|
C308F80MA-TR13X8.4FA, CERAMIC FUSE, 80MA, TR1 |
2,516 | 4.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Surface Mount | Cartridge, Ceramic | 80 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard | 4kA | 0.00018 | cURus | -55°C ~ 125°C | |
|
|
C308F250MA-TR13X8.4FA, CERAMIC FUSE, 250MA, TR |
5,000 | 5.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Surface Mount | Cartridge, Ceramic | 250 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard | 4kA | 0.0053 | cURus | -55°C ~ 125°C | |
|
|
C308F160MA-TR13X8.4FA, CERAMIC FUSE, 160MA, TR |
2,000 | 5.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Surface Mount | Cartridge, Ceramic | 160 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard | 4kA | 0.00166 | cURus | -55°C ~ 125°C | |
|
C308F-V-100MA-TR1FUSE CERAMIC 100MA 250VAC/VDC |
1,501 | 5.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | C308F | Active | Through Hole | Cartridge, Ceramic | 100 mA | 250 V | 250 V | Fast Blow | Cartridge, Non-Standard (Axial) | 4kA | 0.00087 | cURus | -55°C ~ 125°C | |
|

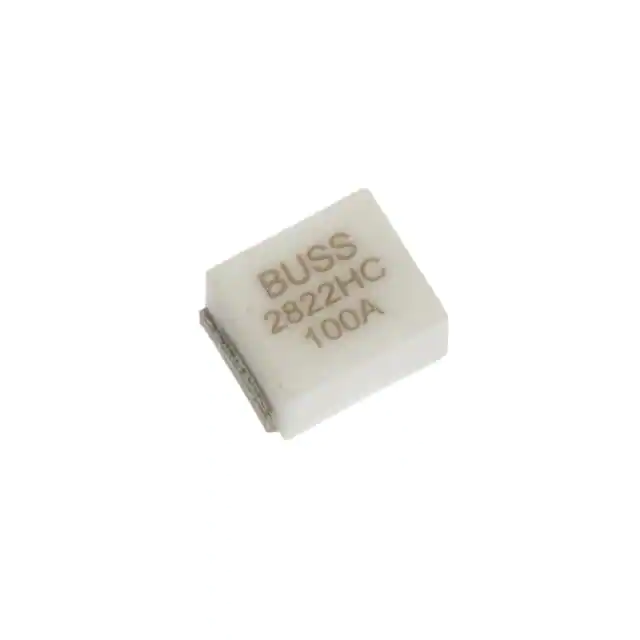

2822HC80-RTRFUSE 72V HIGH CURRENT SMD 80A |
2,000 | 7.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 2822HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 A | - | 72 V | - | 2-SMD, J-Lead | 500A | - | cURus, UL | - | |
|
|
2822HC40-RTRFUSE 72V HIGH CURRENT SMD 40A |
2,000 | 6.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 2822HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | - | 72 V | - | 2-SMD, J-Lead | 1kA | - | cURus, UL | - | |
|
|
2822HC50-RTRFUSE 72V HIGH CURRENT SMD 50A |
1,975 | 6.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 2822HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | - | 72 V | - | 2-SMD, J-Lead | 1kA | - | cURus, UL | - | |
|
|
2822HC90-RTRFUSE 72V HIGH CURRENT SMD 90A |
2,000 | 8.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 2822HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 90 A | - | 72 V | - | 2-SMD, J-Lead | 500A | - | cURus, UL | - | |
|
|
2822HC100-RTRFUSE 72V HIGH CURRENT SMD 100A |
1,975 | 8.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 2822HC | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 A | - | 72 V | - | 2-SMD, J-Lead | 500A | - | cURus, UL | - | |
|

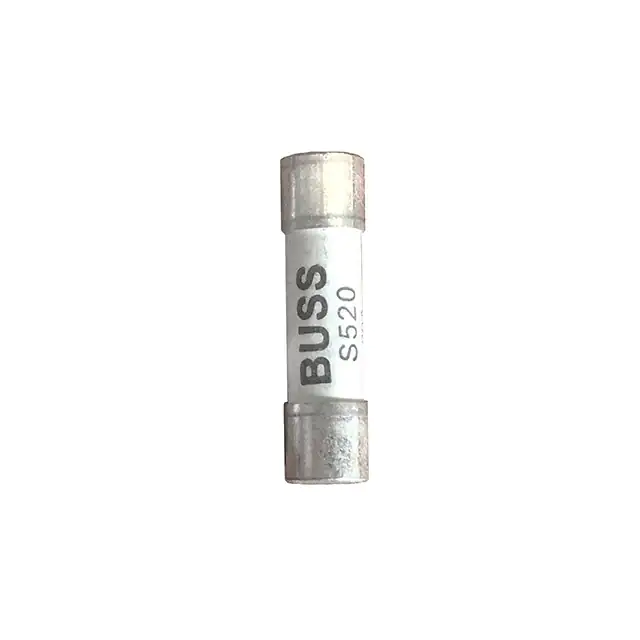

BK/S520-8-RFUSE 8A 420VAC CARTRIDGE |
200 | 4.26 |
RFQ |
Datasheet |
Bulk | S520 | Active | Holder | Cartridge, Ceramic | 8 A | 420 V | - | Fast Blow | 5mm x 20mm | 200A | 104 | TUV, UR | -55°C ~ 125°C | |
|
MDH-V-21-RTR6.3X32MM, HIGH SURGE WITHSTAND. |
1,002 | 8.79 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | MDH-R | Active | Through Hole | Cartridge, Ceramic | 21 A | 600 V | 150 V | - | 3AB, 3AG, 1/4 x 1-1/4 (Axial) | 200A | 5100 | cURus | -55°C ~ 125°C | ||
|

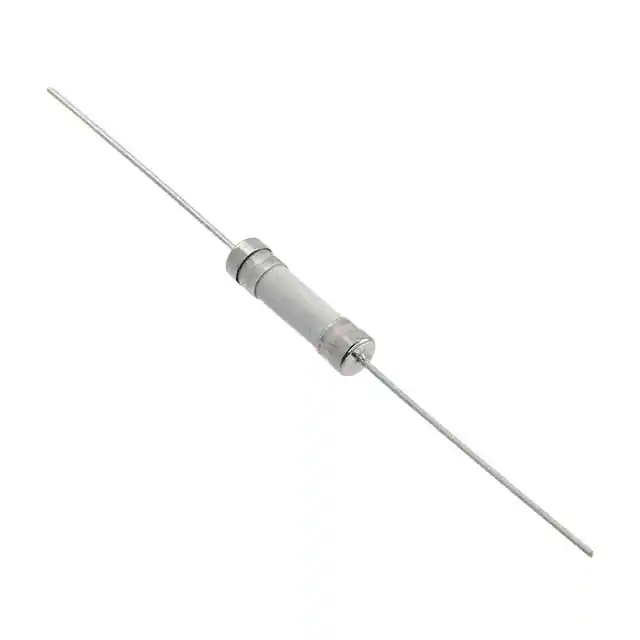

BK-S505SC-4-RFUSE CERAMIC 4A 250VAC 5X20MM |
200 | 4.48 |
RFQ |
Datasheet |
Bulk | S505 | Active | Through Hole | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 5mm x 20mm (Axial) | 1.5kA | 38.45 | BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE | - | |
|
BK-ADC-25-RFUSE 500V 3AB CARTRIDGE 25A |
500 | 7.07 |
RFQ |
Datasheet |
Bulk | ADC | Active | Holder | Cartridge, Ceramic | 25 A | 500 V | 500 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 30kA AC, 20kA DC | 125 | cURus, UL | -50°C ~ 125°C | |
|
|
BK-ADC-30-RFUSE 500V 3AB CARTRIDGE 30A |
488 | 7.07 |
RFQ |
Datasheet |
Bulk | ADC | Active | Holder | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 30kA AC, 20kA DC | 270 | cURus, UL | -50°C ~ 125°C | |
|

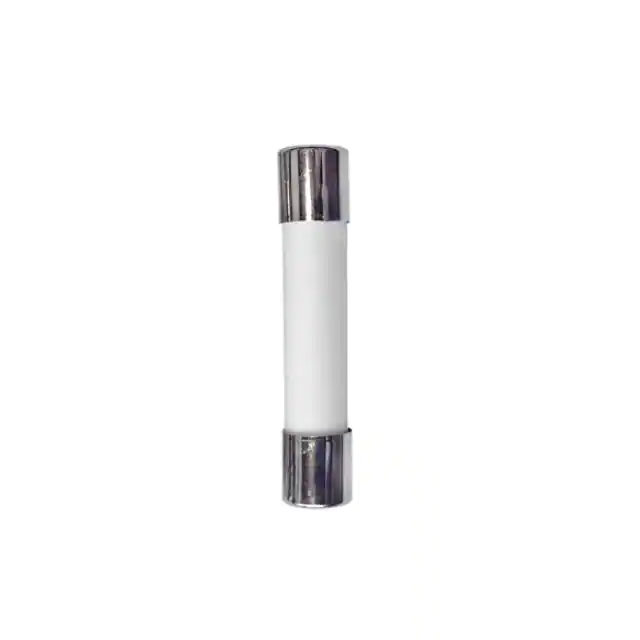

BK-AHC-5-RFUSE 600V 3AB CARTRIDGE 5A |
400 | 7.07 |
RFQ |
Datasheet |
Bulk | AHC | Active | Holder | Cartridge, Ceramic | 5 A | 600 V | - | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | 10 | UL | -55°C ~ 125°C | |
|
|
BK-AHC-4-RFUSE 600V 3AB CARTRIDGE 4A |
400 | 7.07 |
RFQ |
Datasheet |
Bulk | AHC | Active | Holder | Cartridge, Ceramic | 4 A | 600 V | - | Fast Blow | 3AB, 3AG, 1/4 x 1-1/4 | 10kA | 9 | UL | -55°C ~ 125°C |
