| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

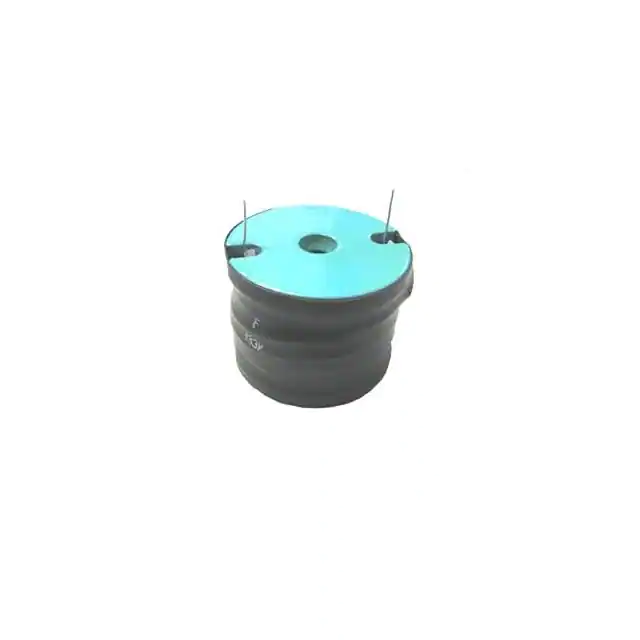

CTDR6F-272KRADIAL LEADED DRUM CORE INDUCTOR |
2,756 | 22.19 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR6F | Active | Drum Core, Wirewound | - | 2.7 mH | ±10% | 5.5 A | 5.1A | Unshielded | 364mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
CTDO1606TF-104M100UH SMD UNSHLDED POWR INDUCTOR |
3,900 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 100 µH | ±20% | 300 mA | 270mA | Unshielded | 2.3Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|
CTDO1606TF-104K100UH SMD UNSHLDED POWR INDUCTOR |
3,406 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 100 µH | ±10% | 300 mA | 270mA | Unshielded | 2.3Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
CT0806SQF-16NGSMD SQUARE AIR CORE INDUCTOR |
3,332 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0806sqf | Active | Wirewound | - | 15.7 nH | ±2% | - | - | - | 9mOhm | - | 4.4GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CTDO1606TF-154M150UH SMD UNSHLDED POWR INDUCTOR |
2,442 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 150 µH | ±20% | 250 mA | 220mA | Unshielded | 3.2Ohm Max | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|
CTDO1606TF-103M10UH SMD UNSHLDED POWR INDUCTOR |
2,212 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 10 µH | ±20% | 900 mA | 900mA | Unshielded | 300mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
CT0807SQF-17NGSMD SQUARE AIR CORE INDUCTOR |
3,737 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0807sqf | Active | Wirewound | - | 17 nH | ±2% | - | - | - | 9mOhm | - | 4GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0806SQF-12NGSMD SQUARE AIR CORE INDUCTOR |
2,048 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0806sqf | Active | Wirewound | - | 12.3 nH | ±2% | - | - | - | 8mOhm | - | 4.8GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
CT0908SQF-25NJSMD SQUARE AIR CORE INDUCTOR |
3,028 | 0.00 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0908sqf | Active | Wirewound | - | 25 nH | ±5% | - | - | - | 10mOhm | - | 2.5GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-25NGSMD SQUARE AIR CORE INDUCTOR |
2,997 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0908sqf | Active | Wirewound | - | 25 nH | ±2% | - | - | - | 10mOhm | - | 2.5GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-27NGSMD SQUARE AIR CORE INDUCTOR |
3,901 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0908sqf | Active | Wirewound | - | 27.3 nH | ±2% | - | - | - | 10mOhm | - | 3.2GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-23NJSMD SQUARE AIR CORE INDUCTOR |
2,513 | 0.00 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0908sqf | Active | Wirewound | - | 23 nH | ±5% | - | - | - | 10mOhm | - | 2.6GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-8N1JSMD SQUARE AIR CORE INDUCTOR |
2,862 | 0.00 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0908sqf | Active | Wirewound | - | 8.1 nH | ±5% | - | - | - | 6mOhm | - | 5.2GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-14NGSMD SQUARE AIR CORE INDUCTOR |
2,773 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0908sqf | Active | Wirewound | - | 14.7 nH | ±2% | - | - | - | 7.2mOhm | - | 3GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CTDO1606TF-103K10UH SMD UNSHLDED POWR INDUCTOR |
3,279 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 10 µH | ±10% | 900 mA | 900mA | Unshielded | 300mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|
CTDO1606TF-105K1MH SMD UNSHLDED POWR INDUCTOR |
2,074 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 1 mH | ±10% | 80 mA | 70mA | Unshielded | 22.6Ohm Max | - | 4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|
CT0908SQF-12NGSMD SQUARE AIR CORE INDUCTOR |
2,532 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0908sqf | Active | Wirewound | - | 12.1 nH | ±2% | - | - | - | 7mOhm | - | 4.3GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CTDO1606TF-102M1.0UH SMD UNSHLDED POWR INDUCTOR |
2,440 | 0.00 |
RFQ |
Nonstandard | Bulk | CTDO1606TF | Obsolete | - | - | 1 µH | ±20% | 2.3 A | 2.25A | Unshielded | 50mOhm Max | - | 230MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | |
|
|
CT0807SQF-22NGSMD SQUARE AIR CORE INDUCTOR |
2,601 | 0.00 |
RFQ |
Datasheet |
- | Bulk | ct0807sqf | Active | Wirewound | - | 22 nH | ±2% | - | - | - | 10mOhm | - | 3.5GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
|
CT0908SQF-12NJSMD SQUARE AIR CORE INDUCTOR |
3,689 | 0.00 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | ct0908sqf | Active | Wirewound | - | 12.1 nH | ±5% | - | - | - | 7mOhm | - | 4.3GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - |
