| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

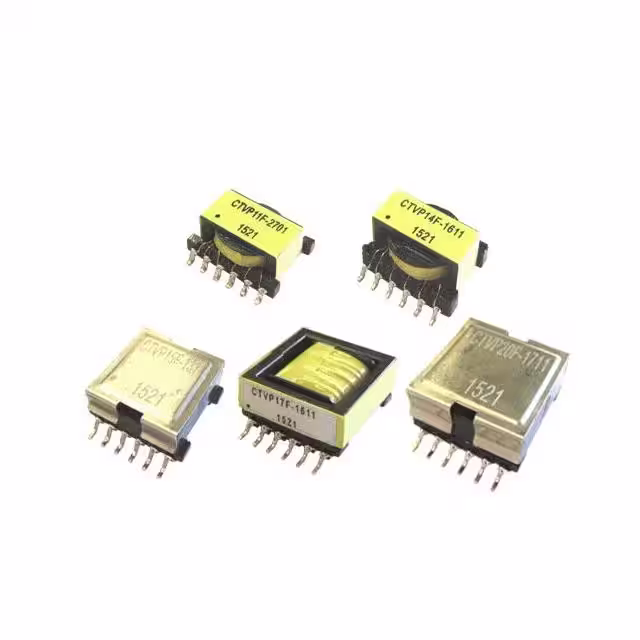

CTVP17F-130112.7UH SMD 6 WINDING TRANSFORMER |
2,558 | 9.39 |
RFQ |
12-SMD, Gull Wing | Bulk | CTVP | Active | Drum Core, Wirewound | Ferrite | 12.7 µH | ±20% | 160 mA | 1.21A | Unshielded | 1.41Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 12-SMD | |
|
|
CTVP17F-1611159.7 SMD 6 WINDING TRANSFORMER |
3,559 | 9.39 |
RFQ |
12-SMD, Gull Wing | Bulk | CTVP | Active | Drum Core, Wirewound | Ferrite | 159.7 µH | ±30% | 160 mA | 110mA | Unshielded | 1.41Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 12-SMD | |
|
|
CTVP17F-100110.1UH SMD 6 WINDING TRANSFORMER |
2,119 | 9.39 |
RFQ |
12-SMD, Gull Wing | Bulk | CTVP | Active | Drum Core, Wirewound | Ferrite | 10.1 µH | ±20% | 160 mA | 1.52A | Unshielded | 1.41Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 12-SMD | |
|
CTVFW2724F-220M2UH SHLDED POWER INDUCTOR |
3,347 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 22 µH | ±20% | 26 A | 14.7A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-6R8M6.UH SHLDED POWER INDUCTOR |
3,109 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 6.8 µH | ±20% | 26 A | 53A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-4R7M4.UH SHLDED POWER INDUCTOR |
3,504 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 4.7 µH | ±20% | 26 A | 69A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-330M3UH SHLDED POWER INDUCTOR |
2,194 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 33 µH | ±20% | 26 A | 9.2A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-150M5UH SHLDED POWER INDUCTOR |
2,458 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 15 µH | ±20% | 26 A | 23A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-3R3M3.UH SHLDED POWER INDUCTOR |
3,708 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 3.3 µH | ±20% | 26 A | 104A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|
|
CTVFW2724F-100M0UH SHLDED POWER INDUCTOR |
3,165 | 9.53 |
RFQ |
Datasheet |
Vertical, 6 PC Pin | Bulk | CTVFW2724F | Active | Wirewound | - | 10 µH | ±20% | 26 A | 34A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | Vertical, 6 PC Pin |
|

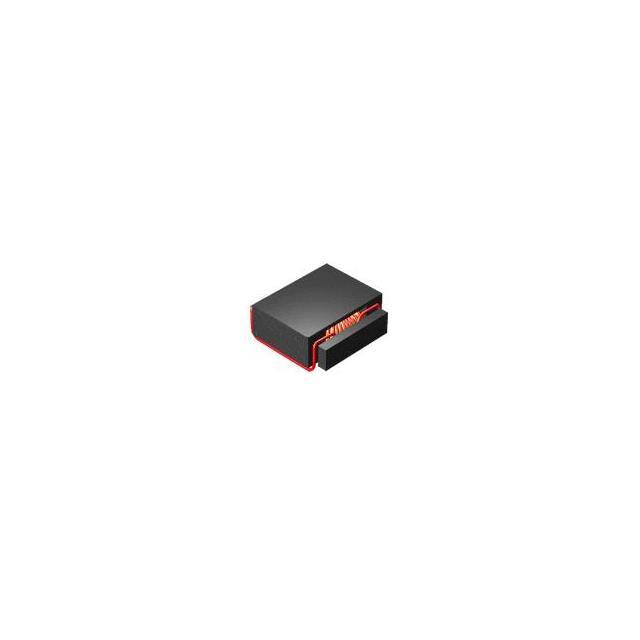

CTSPT68HF-183M18UH SMT TOL INDUCTOR |
2,751 | 10.01 |
RFQ |
Nonstandard | Bulk | CTSPT-H | Active | Toroidal | - | 18 µH | ±20% | 10.9 A | - | Unshielded | 12.3µOhms Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | |
|
CTDR4F-821K820UH RADIAL DRUM CORE INDUCTOR |
3,240 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 820 µH | ±10% | - | 7.2A | Unshielded | 154mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-561K560UH RADIAL DRUM CORE INDUCTOR |
3,270 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 560 µH | ±10% | - | 7.2A | Unshielded | 125mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-681K680UH RADIAL DRUM CORE INDUCTOR |
2,631 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 680 µH | ±10% | - | 7.2A | Unshielded | 139mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-471K470UH RADIAL DRUM CORE INDUCTOR |
3,345 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 470 µH | ±10% | - | 7.2A | Unshielded | 114mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-331K330UH RADIAL DRUM CORE INDUCTOR |
2,782 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 330 µH | ±10% | - | 11.4A | Unshielded | 74mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-682K6800UH RADIAL DRUM CORE INDUCTOR |
3,587 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 6.8 mH | ±10% | - | 1.6A | Unshielded | 1.76Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-470K47UH RADIAL DRUM CORE INDUCTOR |
3,883 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 47 µH | ±10% | - | 14.4A | Unshielded | 18mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-221K220UH RADIAL DRUM CORE INDUCTOR |
2,725 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 220 µH | ±10% | - | 11.4A | Unshielded | 50mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR4F-4R7M4.7UH RADIAL DRUM CORE INDUCTOR |
3,977 | 10.18 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR4F | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | - | 27A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
