| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDAT1623F-160MSMD SHLD PWR INDUCTOR FOR DIG AM |
2,635 | 7.37 |
RFQ |
Datasheet |
Vertical, 4 PC Pin | Bulk | CTDAT1623F | Active | Wirewound | - | 16 µH | ±20% | 5.2 mA | 11A | Shielded | 22.6Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin |
|
CTDAT2315F-220MSMD SHLD PWR INDUCTOR FOR DIG AM |
2,299 | 8.46 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Bulk | CTDAT2315F | Active | - | - | 22 µH | ±20% | 13 A | 20.5A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial |
|
|
CTDAT2315F-120MSMD SHLD PWR INDUCTOR FOR DIG AM |
3,748 | 8.46 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Bulk | CTDAT2315F | Active | - | - | 12 µH | ±20% | 14 A | 32A | Shielded | 7.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial |
|
|
CTDAT2315F-180MSMD SHLD PWR INDUCTOR FOR DIG AM |
3,843 | 8.46 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Bulk | CTDAT2315F | Active | - | - | 18 µH | ±20% | 14 A | 22.5A | Shielded | 7.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial |
|
|
CTDAT2315F-100MSMD SHLD PWR INDUCTOR FOR DIG AM |
3,972 | 8.46 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Bulk | CTDAT2315F | Active | - | - | 10 µH | ±20% | 14 A | 38A | Shielded | 7.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial |
|
|
CTDAT2315F-150MSMD SHLD PWR INDUCTOR FOR DIG AM |
2,330 | 8.46 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Bulk | CTDAT2315F | Active | - | - | 15 µH | ±20% | 13 A | 29A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial |
|

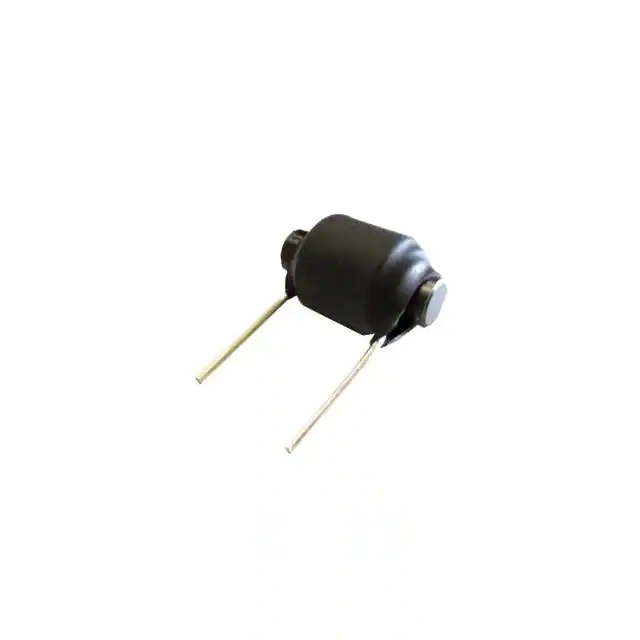

CTHR15F-500K50UH FILTER INDUCTOR |
2,494 | 8.69 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 50 µH | ±10% | 15 A | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTHR15F-100K10UH FILTER INDUCTOR |
2,381 | 8.69 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 10 µH | ±10% | 20 A | 19A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTHR15F-50K5.0UH FILTER INDUCTOR |
2,333 | 8.69 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 5 µH | ±10% | 24 A | 25A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTHR15F-270K27UH FILTER INDUCTOR |
2,521 | 8.69 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 27 µH | ±10% | 16 A | 14A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
CTDR3F-472K4700UH RADIAL DRUM CORE INDUCTOR |
3,561 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 4.7 mH | ±10% | - | 1A | Unshielded | 1.86Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-681K680UH RADIAL DRUM CORE INDUCTOR |
3,434 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 680 µH | ±10% | - | 2.8A | Unshielded | 256mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-122K1200UH RADIAL DRUM CORE INDUCTOR |
2,435 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 1.2 mH | ±10% | - | 2A | Unshielded | 462mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-821K820UH RADIAL DRUM CORE INDUCTOR |
2,727 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 820 µH | ±10% | - | 2.8A | Unshielded | 288mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-152K1500UH RADIAL DRUM CORE INDUCTOR |
3,918 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 1.5 mH | ±10% | - | 2A | Unshielded | 518mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-8R2M8.2UH RADIAL DRUM CORE INDUCTOR |
2,107 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 8.2 µH | ±20% | - | 21A | Unshielded | 4mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-392K3900UH RADIAL DRUM CORE INDUCTOR |
3,187 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 3.9 mH | ±10% | - | 1A | Unshielded | 1.67Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-391K390UH RADIAL DRUM CORE INDUCTOR |
3,087 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 390 µH | ±10% | - | 4A | Unshielded | 169mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-4R7M4.7UH RADIAL DRUM CORE INDUCTOR |
3,874 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | - | 21A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
|
|
CTDR3F-150K15UH RADIAL DRUM CORE INDUCTOR |
2,108 | 8.93 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR3F | Active | Drum Core, Wirewound | - | 15 µH | ±10% | - | 13.5A | Unshielded | 9mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial |
