| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH8F-223K22000UH AXIAL PWR LINE INDUCTOR |
2,665 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 22 mH | ±10% | 130 mA | 190mA | Unshielded | 16.8Ohm Max | - | 200kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
CTS3F-332K3300UH AXL MOLDED SHLD INDUCTOR |
7,015 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 3.3 mH | ±10% | 40 mA | - | Shielded | 53Ohm Max | 43 @ 250kHz | 840kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial |
|
|
CTS3F-181K180UH AXL MOLDED SHLD INDUCTOR |
1,042 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 180 µH | ±10% | 135 mA | - | Shielded | 4.4Ohm Max | 60 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-683K68000UH AXIAL SHIELDD INDUCTOR |
885 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 68 mH | ±10% | 12 mA | - | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|
|
CTS3F-222J2200UH AXL MOLDED SHLD INDUCTOR |
864 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 2.2 mH | ±5% | 50 mA | - | Shielded | 34Ohm Max | 50 @ 250kHz | 970kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial |
|
|
CTS3F-183K18000UH AXIAL SHIELDD INDUCTOR |
500 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 18 mH | ±10% | 21 mA | - | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|
|
CTS3F-151K150UH AXL MOLDED SHLD INDUCTOR |
400 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 150 µH | ±10% | 140 mA | - | Shielded | 4.1Ohm Max | 56 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-271K270UH AXL MOLDED SHLD INDUCTOR |
400 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 270 µH | ±10% | 115 mA | - | Shielded | 5.8Ohm Max | 60 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-8R2J8.2UH AXL MOLDED SHLD INDUCTOR |
284 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 8.2 µH | ±5% | 250 mA | - | Shielded | 1.3Ohm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
|
CTS3F-180K18UH AXL MOLDED SHLD INDUCTOR |
582 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 18 µH | ±10% | 300 mA | - | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial |
|
|
CTS3F-331J330UH AXL MOLDED SHLD INDUCTOR |
200 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 330 µH | ±5% | 110 mA | - | Shielded | 6.4Ohm Max | 54 @ 790kHz | 6.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
CTS3F-820J82UH AXL MOLDED SHLD INDUCTOR |
190 | 2.15 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS3F | Active | Molded | - | 82 µH | ±5% | 180 mA | - | Shielded | 2.4Ohm Max | 45 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial |
|

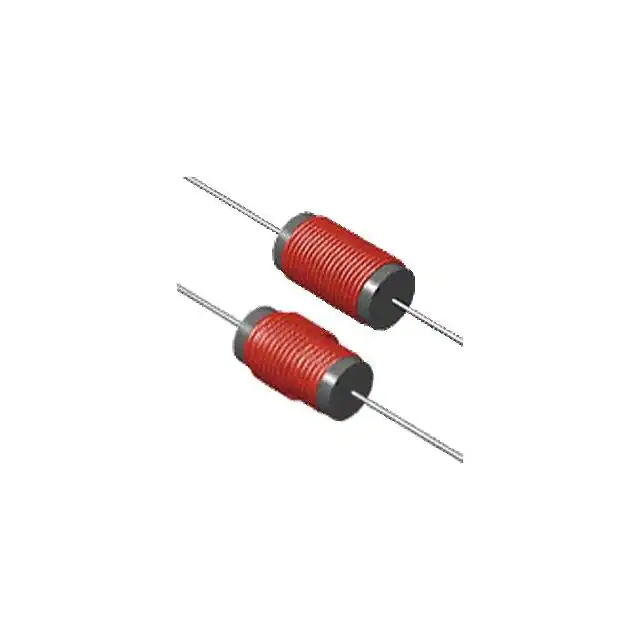

CTH9F-101M100UH AXIAL PWR LINE INDUCTOR |
800 | 2.19 |
RFQ |
Datasheet |
Axial | Bulk | CTH9F | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | - | 2A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH9F-501M500UH AXIAL PWR LINE INDUCTOR |
389 | 2.19 |
RFQ |
Datasheet |
Axial | Bulk | CTH9F | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±20% | - | 2A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-392K3900UH AXIAL PWR LINE INDUCTOR |
5,791 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 3.9 mH | ±10% | 400 mA | 430mA | Unshielded | 2.75Ohm Max | - | 550kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-331K330UH AXIAL PWR LINE INDUCTOR |
2,250 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 330 µH | ±10% | 1.6 A | 1.51A | Unshielded | 212mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-181K180UH AXIAL PWR LINE INDUCTOR |
1,765 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 180 µH | ±10% | 1.6 A | 1.98A | Unshielded | 150mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-6R8K6.8UH AXIAL PWR LINE INDUCTOR |
1,525 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 6.8 µH | ±10% | 4 A | 11.6A | Unshielded | 11mOhm Max | - | 26MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-104K100000UH AXIAL PWR LINE INDUCTOR |
1,414 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 100 mH | ±10% | 67 mA | 89mA | Unshielded | 71.7Ohm Max | - | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH8F-151K150UH AXIAL PWR LINE INDUCTOR |
1,215 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | CTH8F | Active | - | - | 150 µH | ±10% | 1.6 A | 2.22A | Unshielded | 129mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
