| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

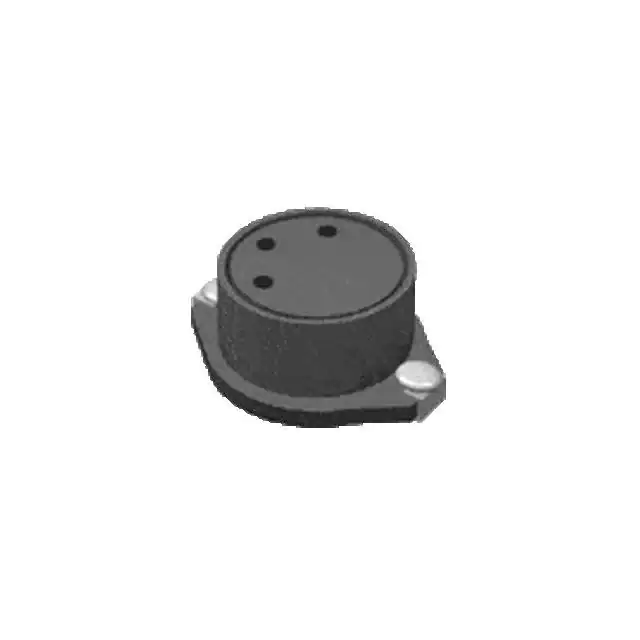

CTDS5022PF-47347UH SMD SHIELDED POWR INDUCTOR |
6,012 | 1.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTDS5022F | Active | - | - | 47 µH | ±20% | 2.4 A | 4A | Shielded | 100mOhm Max | 40 @ 100kHz | 8MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
CT914BYF-680MSMD SHIELDED POWER INDUCTOR |
4,013 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 68 µH | ±20% | - | - | - | 935mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CT914BYF-330MSMD SHIELDED POWER INDUCTOR |
4,003 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 33 µH | ±20% | - | - | - | 445mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CT914BYF-2R2MSMD SHIELDED POWER INDUCTOR |
4,000 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 2.2 µH | ±20% | - | - | - | 59mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CT914BYF-4R7MSMD SHIELDED POWER INDUCTOR |
4,000 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 4.7 µH | ±20% | - | - | - | 87mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CTDS5022PF-68368UH SMD SHIELDED POWR INDUCTOR |
3,000 | 1.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTDS5022F | Active | - | - | 68 µH | ±20% | 2 A | 3A | Shielded | 140mOhm Max | 40 @ 100kHz | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CT914BYF-150MSMD SHIELDED POWER INDUCTOR |
2,000 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 15 µH | ±20% | - | - | - | 210mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CT914BYF-101MSMD SHIELDED POWER INDUCTOR |
2,000 | 1.53 |
RFQ |
- | Bulk | ct914byf | Obsolete | - | - | 100 µH | ±20% | - | - | - | 1.5Ohm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | |
|
|
CTDS5022PF-10310UH SMD SHIELDED POWR INDUCTOR |
1,267 | 1.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTDS5022F | Active | - | - | 10 µH | ±20% | 3.9 A | 8A | Shielded | 40mOhm Max | 40 @ 100kHz | 24MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CTDS5022PF-334330UH SMD SHIELDED POWR INDUCTOR |
515 | 1.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTDS5022F | Active | - | - | 330 µH | ±20% | 860 mA | 1.1A | Shielded | 780mOhm Max | 50 @ 100kHz | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CTDS5022PF-15315UH SMD SHIELDED POWR INDUCTOR |
166 | 1.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTDS5022F | Active | - | - | 15 µH | ±20% | 3.4 A | 7A | Shielded | 50mOhm Max | 40 @ 100kHz | 16MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
CTMSS1278F-221K220UH SMD SHLDED POWER INDUCTOR |
2,773 | 1.54 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CTMSS1278F | Active | - | - | 220 µH | ±10% | 1.6 A | 1.8A | Shielded | 400mOhm Max | - | 3.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
CTHC1812F-6R8K6.8UH FERRITE CORE WW INDUCTOR |
6,000 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | - | 600mA | Unshielded | 350mOhm Max | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-1R0K1.0UH FERRITE CORE WW INDUCTOR |
4,500 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | - | 1.05A | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-8R2K8.2UH FERRITE CORE WW INDUCTOR |
4,000 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | - | 600mA | Unshielded | 400mOhm Max | 10 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-120JFERRITE CORE WW INDUCTOR |
1,500 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | - | 500mA | Unshielded | 600mOhm Max | 10 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-100K10UH FERRITE CORE WW INDUCTOR |
1,000 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | 550mA | Unshielded | 500mOhm Max | 10 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-821K820UH FERRITE CORE WW INDUCTOR |
500 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | - | 60A | Unshielded | 45Ohm Max | - | 2.5MHz | - | -25°C ~ 85°C | - | - | Surface Mount | 1812 | |
|
|
CTHC1812F-2R2K2.2UH FERRITE CORE WW INDUCTOR |
500 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 850mA | Unshielded | 180mOhm Max | 10 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | |
|
|
CTHC1812F-2R7K2.7UH FERRITE CORE WW INDUCTOR |
494 | 1.56 |
RFQ |
1812 (4532 Metric) | Bulk | CTHC1812F | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | - | 800mA | Unshielded | 200mOhm Max | 10 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
