| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

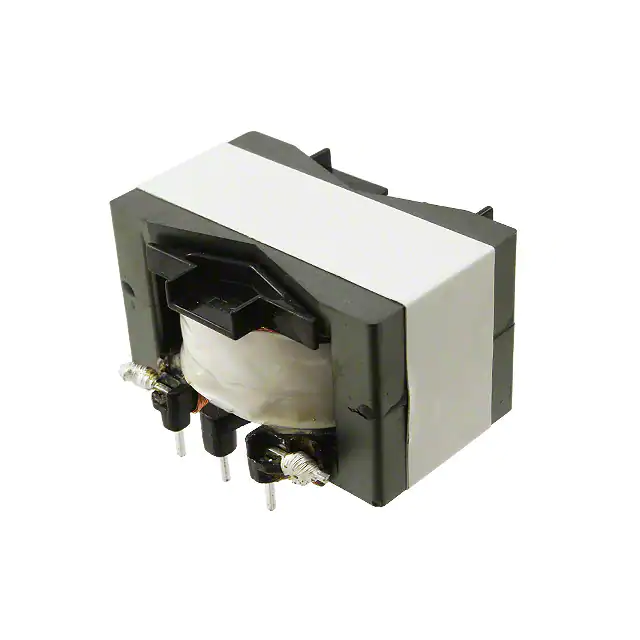

PFC4124QM-151K11D-00CHOKE COIL, 150UH |
2,169 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 11.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC4124QM-181K09D-00CHOKE COMMON MODE |
3,003 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 8.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|

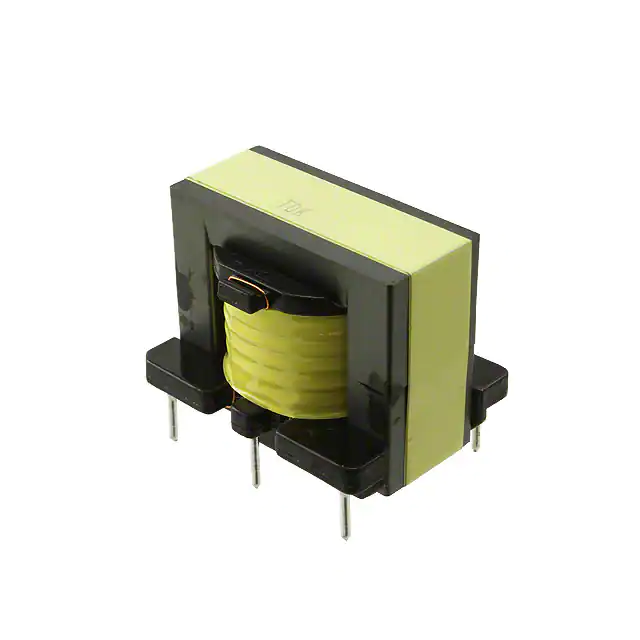

PFC3125ER-451K03E-00CHOKE COMMON MODE |
2,505 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 2.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|

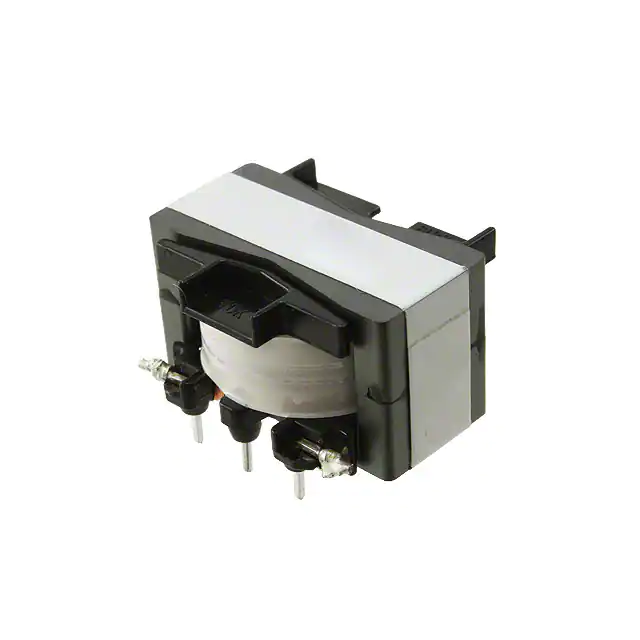

PFC3318QM-601K03E-00CHOKE COIL 600UH 2.8A TH |
2,316 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3318QM-601K03B-00CHOKE COMMON MODE |
3,854 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3318QM-451K04B-00CHOKE COMMON MODE |
2,320 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
PFC3514QM-351K04B-00CHOKE COMMON MODE |
2,036 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 350 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3514QM-281K05B-00CHOKE COMMON MODE |
3,223 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 280 µH | ±10% | 4.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3514QM-231K06B-00CHOKE COMMON MODE |
2,007 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 65 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
PFC3125ER-301K05B-00CHOKE COMMON MODE |
2,366 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 4.9 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3125ER-231K06B-00CHOKE COMMON MODE |
3,807 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 6.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|

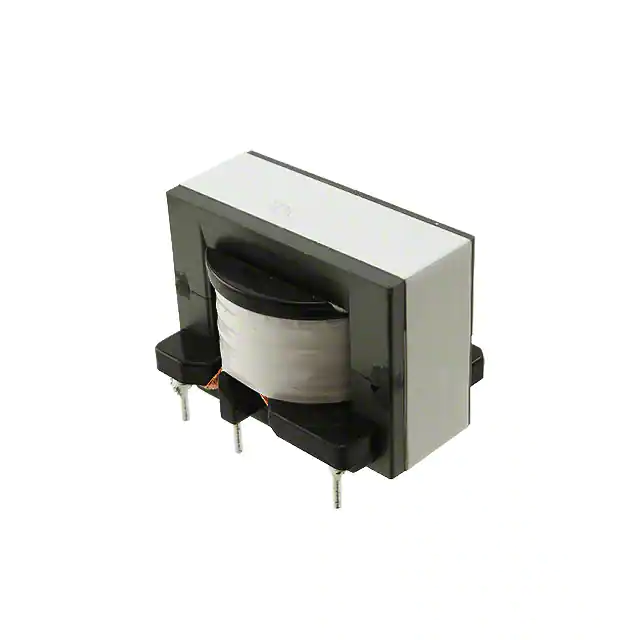

PFC3525ER-301K04E-00CHOKE COMMON MODE |
3,936 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 4.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3525ER-231K06E-00CHOKE COMMON MODE |
2,262 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 225 µH | ±10% | 5.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|
|
PFC3525ER-181K09B-00CHOKE COMMON MODE |
3,503 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 6 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 9.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|

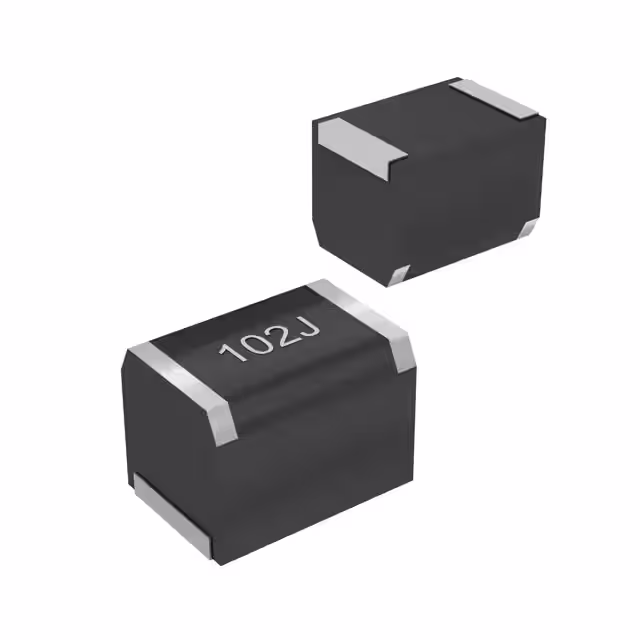

NL453232T-331JFIXED IND 330UH 85MA 14 OHM SMD |
3,799 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NL | Obsolete | Wirewound | - | 330 µH | ±5% | 85 mA | - | Unshielded | 14Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 |
|
|
NL453232T-471JFIXED IND 470UH 62MA 26 OHM SMD |
3,560 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NL | Obsolete | Wirewound | - | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 |
|
|
NL453232T-681JFIXED IND 680UH 50MA 30 OHM SMD |
2,400 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NL | Obsolete | Wirewound | - | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 |
|
|
NL453232T-102JFIXED IND 1MH 30MA 40 OHM SMD |
3,320 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NL | Obsolete | Wirewound | - | 1 mH | ±5% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 252kHz | 2.5MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1812 |
|
NLC453232T-1R0KFIXED IND 1UH 1.05A 110 MOHM SMD |
3,399 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NLC | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.05 A | - | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
NLC453232T-1R5KFIXED IND 1.5UH 950MA 150MOHM SM |
3,034 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | NLC | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 950 mA | - | Unshielded | 150mOhm Max | 10 @ 7.96MHz | 130MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1812 |
