| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

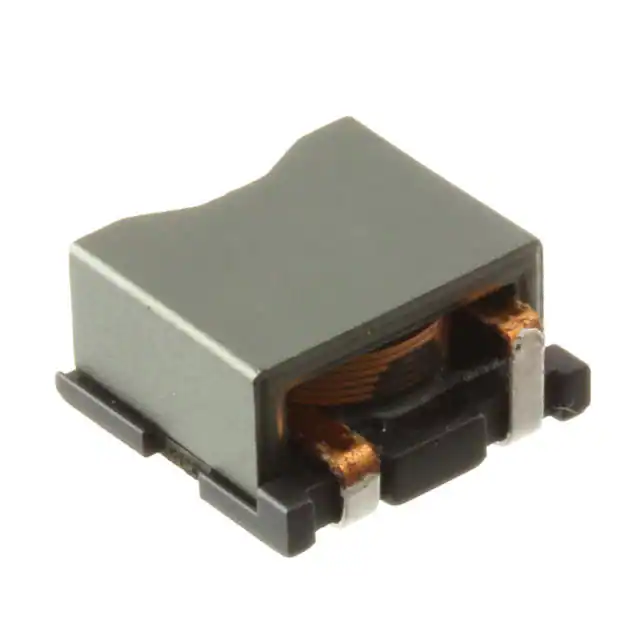

VLM10555T-2R5M8R0-2HFIXED IND 2.5UH 8A 7.71 MOHM SMD |
3,912 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 8 A | 15A | Shielded | 7.71mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-3R3M7R2-2HFIXED IND 3.3UH 7.2A 9.55MOHM SM |
2,628 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.2 A | 12A | Shielded | 9.55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-4R3M7R2-2HFIXED IND 4.3UH 7.2A 9.55MOHM SM |
3,402 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 7.2 A | 9A | Shielded | 9.55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-R33M180-3HFIXED IND 330NH 18A 1.2 MOHM SMD |
3,128 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 18 A | 34A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-R45M110-3HFIXED IND 450NH 11A 2.6 MOHM SMD |
3,434 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 450 nH | ±20% | 11 A | 40A | Shielded | 2.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-R56M120-3HFIXED IND 560NH 12A 2.5 MOHM SMD |
3,784 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 12 A | 34A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-R70M120-3HFIXED IND 700NH 12A 2.5 MOHM SMD |
2,620 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 700 nH | ±20% | 12 A | 26A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-1R2M100-3HFIXED IND 1.2UH 10A 3.2 MOHM SMD |
3,748 | 2.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 10 A | 18A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

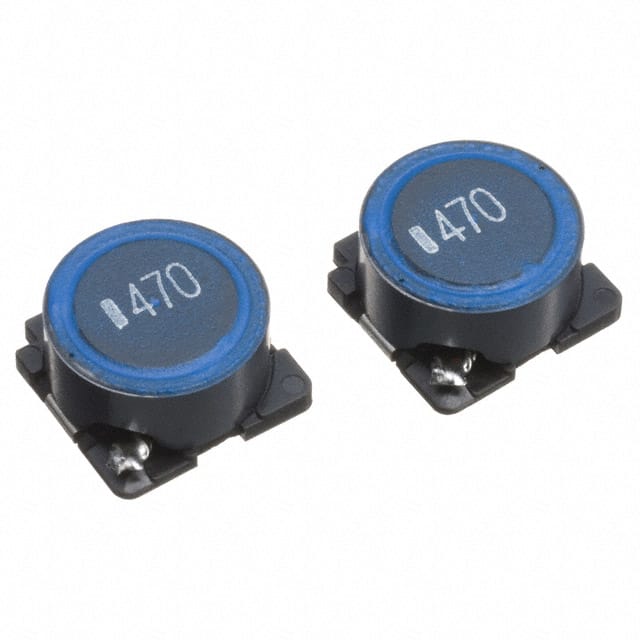

LGJ12565TS-150M4R2-HFIXED IND 15UH 4.4A 23.7MOHM SMD |
2,383 | 3.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.4 A | 4.2A | Shielded | 23.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
LGJ12565TS-151M1R3-HFIXED IND 150UH 1.4A 212MOHM SMD |
3,858 | 3.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.4 A | 1.3A | Shielded | 212mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
LGJ12565TS-7R0N5R0-HFIXED IND 7UH 5A 17.7 MOHM SMD |
2,141 | 3.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 5 A | 5.7A | Shielded | 17.7mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|

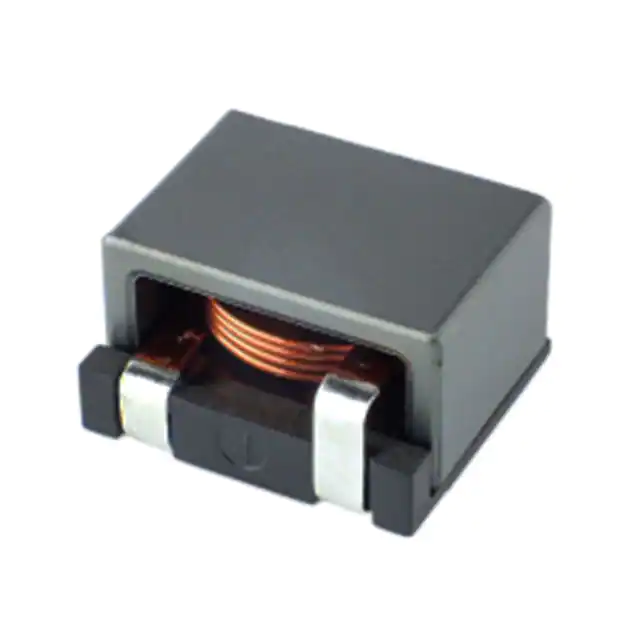

VLM13580T-R82M-D1FIXED IND 820NH 12.6A 2 MOHM SMD |
2,424 | 4.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 12.6 A | 36A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM13580T-1R5M-D1FIXED IND 1.5UH 11.3A 2.5MOHM SM |
3,878 | 4.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 11.3 A | 26A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM13580T-2R2M-D1FIXED IND 2.2UH 10.5A 3.9MOHM SM |
2,116 | 4.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10.5 A | 20A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM13580T-3R3M-D1FIXED IND 3.3UH 8.4A 4.5MOHM SMD |
2,945 | 4.24 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | VLM | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8.4 A | 18A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

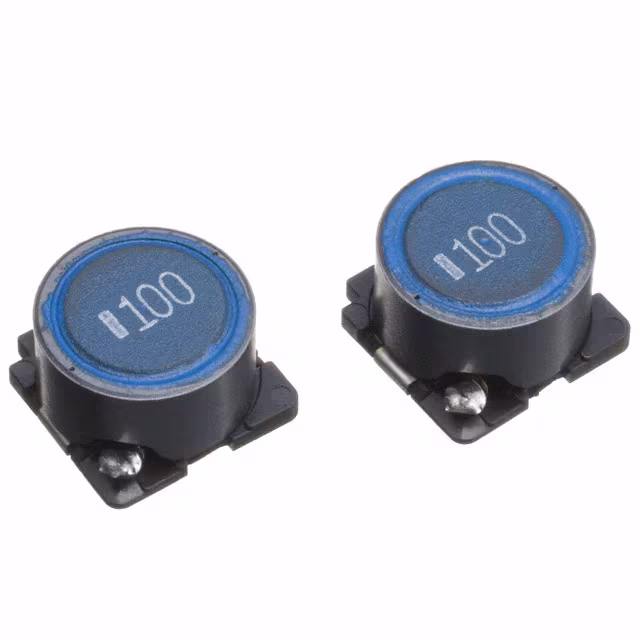

LGJ12575TS-101M1R9-HFIXED IND 100UH 1.9A 125MOHM SMD |
2,624 | 4.34 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.9A | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
LGJ12575TS-221M1R3-HFIXED IND 220UH 1.3A 258MOHM SMD |
2,174 | 4.34 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1.3A | Shielded | 258mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
|
LGJ12575TS-3R9N6R7-HFIXED IND 3.9UH 6.7A 10.4MOHM SM |
2,997 | 4.34 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 6.7 A | 9A | Shielded | 10.4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
PFC3819QM-301K06E-00CHOKE COMMON MODE |
3,190 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 8 Leads | Bulk | PFC | Last Time Buy | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
|

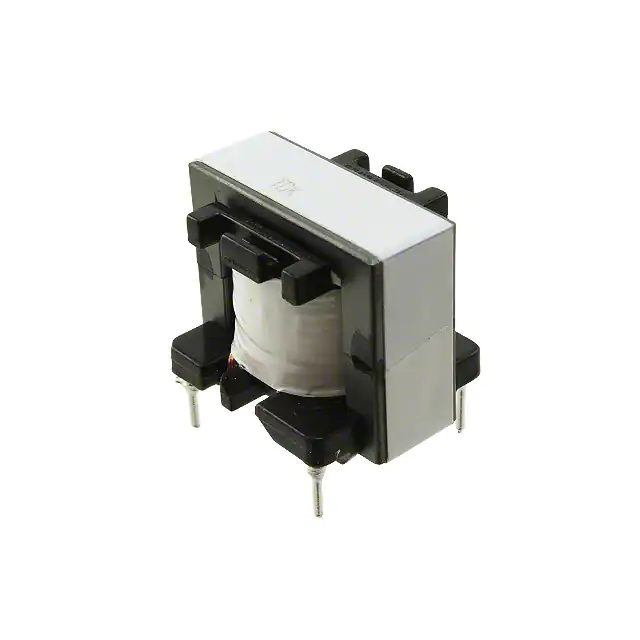

PFC2723ER-601K02B-00CHOKE COMMON MODE |
3,948 | 11.65 |
RFQ |
Datasheet |
Radial, Horizontal, 5 Leads | Bulk | PFC | Active | Drum Core, Wirewound | Ferrite | 600 µH | ±10% | 2.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - |
