Ferrite Cores(5020)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

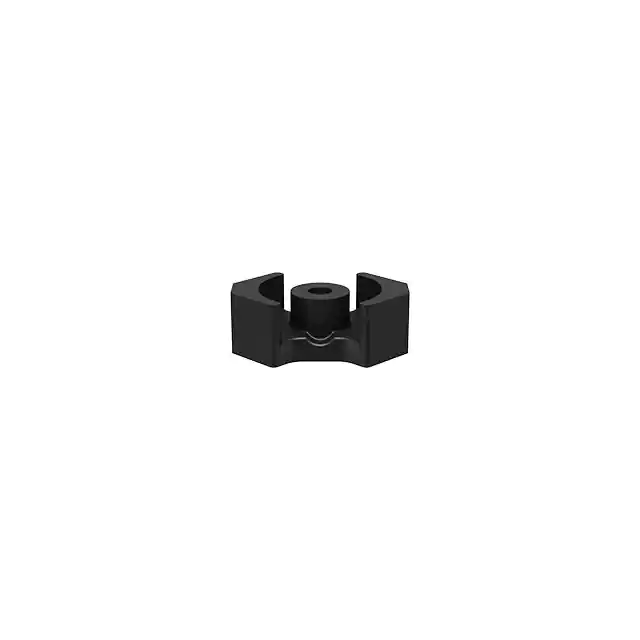

B65819N0250A048 FERRITE CORE EPCOS - TDK Electronics	2,319	2.12	RFQ	PDF	Box	RM7	Active	RM	RM 7	N48	-	-	-	Gapped	-	2300	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
B65819N0400A048 FERRITE CORE EPCOS - TDK Electronics	3,500	2.12	RFQ	PDF	Box	RM7	Active	RM	RM 7	N48	-	-	-	Gapped	-	2300	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
B64290A0720X097 R 36/23/10 N 97 EPCOS - TDK Electronics	3,537	2.15	RFQ	PDF	Box	T36/23/10	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B65845J0000R087 FERRITE CORE EP 2.4UH N87 2PCS EPCOS - TDK Electronics	3,657	2.17	RFQ	PDF	Box	EP17	Active	EP	EP 17	N87	-	2.4 µH	-20%, +30%	Ungapped	1600	2200	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B66506P0000X188 FERRITE CORE I30/2.7/20 N88 UNGA EPCOS - TDK Electronics	2,359	2.19	RFQ	-	Box	I30/2.7/20	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66329G0400X187 FERRITE CORE EPCOS - TDK Electronics	2,757	2.21	RFQ	PDF	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)
B66329G1600X187 FERRITE CORE EPCOS - TDK Electronics	3,963	2.21	RFQ	PDF	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)
B65845J0630D087 FERRITE CORE EPCOS - TDK Electronics	2,831	2.22	RFQ	PDF	Box	EP17	Active	EP	EP 17	N87	-	-	-	Gapped	-	2200	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B65845J0063A087 FERRITE CORE EPCOS - TDK Electronics	3,136	2.22	RFQ	PDF	Box	EP17	Active	EP	EP 17	N87	-	-	-	Gapped	-	2200	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B66325G0000X197 FERRITE CORE E N97 1PC EPCOS - TDK Electronics	3,189	2.23	RFQ	PDF	Box	E42/21/15	Active	E	E 42 x 21 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B65811P0000R092 FERRITE CORE RM 3.1UH N92 2PCS EPCOS - TDK Electronics	2,400	2.24	RFQ	PDF	Box	RM8/LP	Active	RM	RM 8 LP	N92	-	3.1 µH	-20%, +30%	Ungapped	1090	1500	0.44	28.7	64.9	55.4	1860	Uncoated	0.228 (5.80mm)
B65495B0000Y033 FERRITE CORE P 200NH M33 2PCS EPCOS - TDK Electronics	2,159	2.25	RFQ	PDF	Box	P4.6/4.1	Active	P (Pot Core)	P 4.6 x 4.1	M33	0.183 (4.65mm)	200 nH	-30%, +40%	Ungapped	430	750	2.7	7.6	2.8	-	21.3	Uncoated	0.079 (2.00mm)
B65939D0000X022 FERRITE CORE EPCOS - TDK Electronics	2,301	2.26	RFQ	-	Box	PS24.6/8	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66506G0000X188 FERRITE CORE EQ 30/8/20 N88 UNGA EPCOS - TDK Electronics	3,535	2.26	RFQ	-	Box	EQ30/8/20	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65541D0000R001 FERRITE CORE P 140NH K1 2PCS EPCOS - TDK Electronics	2,771	2.27	RFQ	PDF	Box	P14/8	Active	P (Pot Core)	P 14 x 8	K1	0.563 (14.30mm)	140 nH	-20%, +30%	Ungapped	89	80	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)

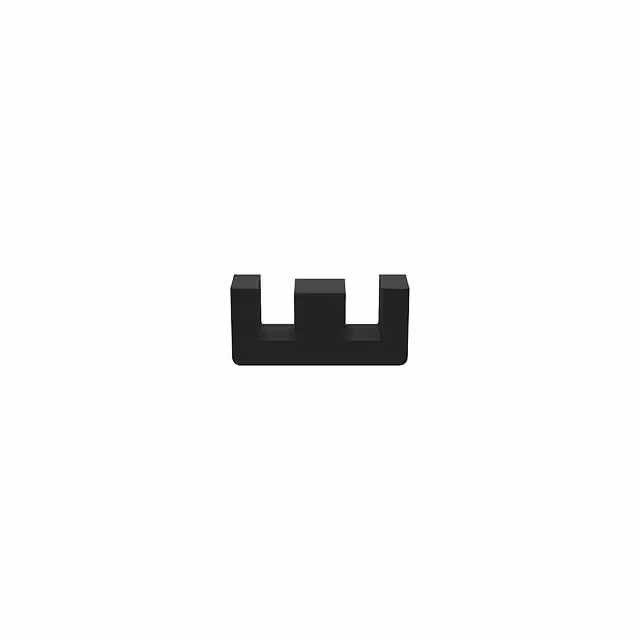

B66383G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,941	2.29	RFQ	PDF	Box	E47/20/16	Active	E	E 47 x 20 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
B65738J0000R087 FERRITE CORES EPCOS - TDK Electronics	3,954	2.29	RFQ	PDF	Box	PTS23/18	Active	-	-	N87	-	-	-	-	-	2200	0.62	45.1	73.1	67.4	3293	Uncoated	0.362 (9.20mm)
B65803N0040A033 FERRITE CORE RM 40NH M33 2PCS EPCOS - TDK Electronics	3,944	2.30	RFQ	PDF	Box	RM4	Active	RM	RM 4	M33	-	40 nH	±3%	Gapped	60.4	750	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B66341G0000X187 FERRITE CORES EPCOS - TDK Electronics	3,468	2.31	RFQ	PDF	Box	EC52/24/14	Active	EC	EC 52 x 24 x 14	N87	-	-	-	-	-	2200	0.58	105	180	141	18900	Uncoated	0.959 (24.35mm)
B65811J0250A057 FERRITE CORE EPCOS - TDK Electronics	3,760	2.31	RFQ	PDF	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
