| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65819P0250J087FERRITE CORE |
2,791 | 1.67 |
RFQ |
Datasheet |
Box | RM7/LP | Active | RM | RM 7 LP | N87 | - | - | - | Gapped | - | 2200 | 0.52 | 23.5 | 45.3 | 39.6 | 1060 | Uncoated | 0.193 (4.90mm) |
|
|
B65819P0275J087FERRITE CORE |
3,518 | 1.67 |
RFQ |
Datasheet |
Box | RM7/LP | Active | RM | RM 7 LP | N87 | - | - | - | Gapped | - | 2200 | 0.52 | 23.5 | 45.3 | 39.6 | 1060 | Uncoated | 0.193 (4.90mm) |
|
|
B65819P0315J087FERRITE CORE |
3,214 | 1.67 |
RFQ |
Datasheet |
Box | RM7/LP | Active | RM | RM 7 LP | N87 | - | - | - | Gapped | - | 2200 | 0.52 | 23.5 | 45.3 | 39.6 | 1060 | Uncoated | 0.193 (4.90mm) |
|
|
B65819P0060A087FERRITE CORE |
3,517 | 1.67 |
RFQ |
Datasheet |
Box | RM7/LP | Active | RM | RM 7 LP | N87 | - | - | - | Gapped | - | 2200 | 0.52 | 23.5 | 45.3 | 39.6 | 1060 | Uncoated | 0.193 (4.90mm) |
|
|
B65809A0000R035FERRITE CORE |
3,970 | 1.68 |
RFQ |
Box | RM6/R | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B65807P0000R097FERRITE CORE |
2,372 | 1.69 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 LP | N97 | - | - | - | - | - | 2300 | 0.58 | 21.8 | 37.5 | 31.2 | 820 | Uncoated | 0.177 (4.50mm) |
|
B66363G0100X127FERRITE CORE ETD N27 1PC |
2,641 | 1.69 |
RFQ |
Datasheet |
Box | ETD39/20/13 | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787 (20.00mm) |
|
|
B66363G0200X127FERRITE CORE ETD N27 1PC |
3,350 | 1.69 |
RFQ |
Datasheet |
Box | ETD39/20/13 | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787 (20.00mm) |
|
|
B66363G2000X127FERRITE CORE |
2,827 | 1.69 |
RFQ |
Datasheet |
Box | ETD39/20/13 | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | 2000 | 0.74 | 92.2 | 125 | 123 | 11500 | Uncoated | 0.787 (20.00mm) |
|
B65807J0000R045FERRITE CORE RM 3.5UH N45 2PCS |
2,084 | 1.70 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N45 | - | 3.5 µH | -20%, +30% | Ungapped | 2180 | 3800 | 0.78 | 28.6 | 36.6 | 31 | 1050 | Uncoated | 0.246 (6.25mm) |
|
|
B65807N0200A048FERRITE CORE |
3,939 | 1.70 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N48 | - | - | - | Gapped | - | 2300 | 0.78 | 26.9 | 31.3 | - | 840 | Uncoated | 0.246 (6.25mm) |
|
|
B65807N0500A048FERRITE CORE |
3,444 | 1.70 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N48 | - | - | - | Gapped | - | 2300 | 0.78 | 26.9 | 31.3 | - | 840 | Uncoated | 0.246 (6.25mm) |
|
B65807P0000R049FERRITE CORE RM 2.2UH N49 2PCS |
2,068 | 1.70 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 LP | N49 | - | 2.2 µH | -20%, +30% | Ungapped | 1020 | 1500 | 0.58 | 21.8 | 37.5 | 31.2 | 820 | Uncoated | 0.177 (4.50mm) |
|

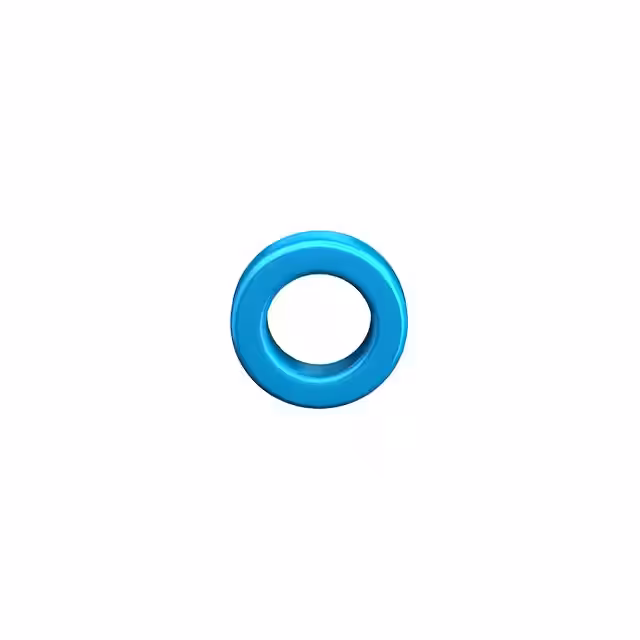

B64290L0710X035FERRITE CORE |
2,536 | 1.71 |
RFQ |
Datasheet |
Box | TX20/10/15 | Active | Toroid | - | T35 | - | 10.8 µH | ±25% | Gapped | - | 6000 | - | - | - | - | - | Epoxy | - |
|

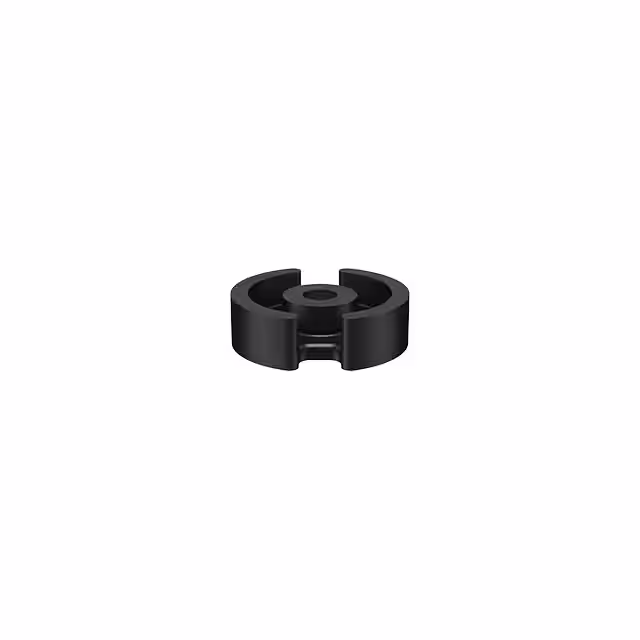

B65517T0100A048FERRITE CORE P 100NH N48 2PCS |
2,772 | 1.72 |
RFQ |
Datasheet |
Box | P9/5 | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366 (9.30mm) | 100 nH | ±3% | Gapped | 100 | - | 1.25 | 12.5 | 10 | - | 125 | Uncoated | 0.106 (2.70mm) |
|
B65517T0160A048FERRITE CORE P 160NH N48 2PCS |
3,129 | 1.72 |
RFQ |
Datasheet |
Box | P9/5 | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366 (9.30mm) | 160 nH | ±3% | Gapped | 159 | - | 1.25 | 12.5 | 10 | - | 125 | Uncoated | 0.106 (2.70mm) |
|
|
B64290A0672X037FERRITE CORE |
3,951 | 1.73 |
RFQ |
Datasheet |
Box | T26/14.5/15 | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - |
|
|
B65807J1000K045FERRITE CORE |
2,634 | 1.75 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N45 | - | - | - | Gapped | - | 3800 | 0.78 | 28.6 | 36.6 | 31 | 1050 | Uncoated | 0.246 (6.25mm) |
|
B65511A0000Y065FERRITE CORE P 2PCS |
3,482 | 1.77 |
RFQ |
Datasheet |
Box | P7/4 | Active | P (Pot Core) | P 7 x 4 | - | 0.289 (7.35mm) | - | - | Ungapped | - | - | 1.43 | 10 | 7 | - | 70 | Uncoated | 0.083 (2.10mm) |
|
|
B65805N0020A033FERRITE CORE |
2,884 | 1.79 |
RFQ |
Datasheet |
Box | RM5 | Active | RM | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | - |
