| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66387Q0100K187E65/32/27-N87-DG100 |
294 | 10.87 |
RFQ |
Datasheet |
Bulk | E65/32/27 | Active | E | E 65 x 32 x 27 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | 2200 | 0.27 | 147 | 535 | 529 | 78600 | Uncoated | 1.291 (32.80mm) |
|
|
B66387Q0400K187E65/32/27-N87-DG400 |
119 | 10.87 |
RFQ |
Datasheet |
Bulk | E65/32/27 | Active | E | E 65 x 32 x 27 | N87 | - | 400 nH | ±10% | Distributed Gapped | - | 2200 | 0.27 | 147 | 535 | 529 | 78600 | Uncoated | 1.291 (32.80mm) |
|
B65881Q0100K095PQ35/35-N95-DG100 |
342 | 16.34 |
RFQ |
Datasheet |
Bulk | PQ35/35 | Active | PQ | PQ 35 x 35 | N95 | - | 100 nH | ±10% | Distributed Gapped | - | 3000 | 0.47 | 79.7 | 171 | 161 | 13650 | Uncoated | 0.685 (17.40mm) |
|
B66479G0000X195FERRITE CORE |
3,224 | 1.64 |
RFQ |
Datasheet |
Box | EQ13/9/3 | Active | - | - | N95 | - | - | - | - | - | 3000 | - | - | - | - | - | - | - |
|
B65885A0000R087FERRITE CORE PQ 2.35UH N87 2PCS |
3,109 | 2.15 |
RFQ |
Datasheet |
Box | PQ16/11.6 | Active | PQ | PQ 16 x 11.6 | N87 | - | 2.35 µH | -20%, +30% | Ungapped | 1200 | 2200 | 0.641 | 27 | 42.1 | 38.5 | 1136 | Uncoated | 0.228 (5.80mm) |
|
|
B65885A0000R097FERRITE CORE PQ 2.45UH N97 2PCS |
3,103 | 2.73 |
RFQ |
Datasheet |
Box | PQ16/11.6 | Active | PQ | PQ 16 x 11.6 | N97 | - | 2.45 µH | -20%, +30% | Ungapped | 1250 | 2300 | 0.641 | 27 | 42.1 | 38.5 | 1136 | Uncoated | 0.228 (5.80mm) |
|
B65875B0000R092FERRITE CORE PQ 2.4UH N92 2PCS |
424 | 4.36 |
RFQ |
Datasheet |
Box | PQ20/16 | Active | PQ | PQ 20 x 16 | N92 | - | 2.4 µH | -20%, +30% | Ungapped | 1105 | 1500 | 0.579 | 37 | 64 | 57.6 | 2367 | Uncoated | 0.319 (8.10mm) |
|
|
B65875B0000R095FERRITE CORE PQ 3.75UH N95 2PCS |
232 | 4.72 |
RFQ |
Datasheet |
Box | PQ20/16 | Active | PQ | PQ 20 x 16 | N95 | - | 3.75 µH | -20%, +30% | Ungapped | 1730 | 2000 | 0.579 | 37 | 64 | 57.6 | 2367 | Uncoated | 0.319 (8.10mm) |
|
B65701T0400A048FERRITE CORE P 400NH N48 2PCS |
220 | 13.11 |
RFQ |
Datasheet |
Box | P30/19 | Active | P (Pot Core) | P 30 x 19 | N48 | 1.200 (30.50mm) | 400 nH | ±3% | Gapped | 105 | - | 0.33 | 45 | 136 | - | 6120 | Uncoated | 0.374 (9.50mm) |
|
|
B65883A0000R092FERRITE CORE PQ 3.2UH N92 2PCS |
109 | 13.39 |
RFQ |
Datasheet |
Box | PQ40/40 | Active | PQ | PQ 40 x 40 | N92 | - | 3.2 µH | -20%, +30% | Ungapped | 1250 | 1500 | 0.49 | 92.5 | 188.3 | 159.9 | 17430 | Uncoated | 0.783 (19.90mm) |
|

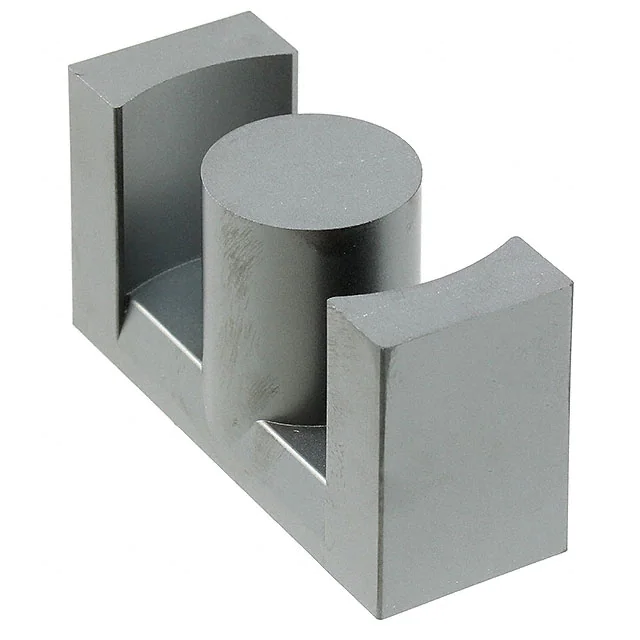

B66397G0000X197FERRITE CORE ETD N97 1PC |
3,778 | 11.15 |
RFQ |
Datasheet |
Box | ETD59/31/22 | Active | ETD | ETD 59 x 31 x 22 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.228 (31.20mm) |
|

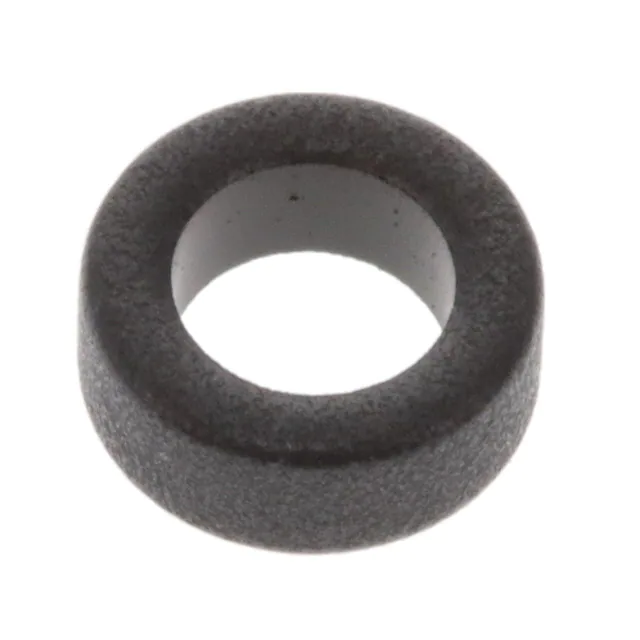

B64290P0037X049FERRITE CORE |
113 | 0.79 |
RFQ |
Datasheet |
Box | TC6.3/3.8/2.5 | Active | Toroid | R 6.3 x 3.8 x 2.5 | N49 | 0.248 (6.30mm) | 330 nH | ±25% | Gapped | - | 1500 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.098 (2.50mm) |
|
B66413G0000X197FERRITE CORE EFD N97 1PC |
128 | 0.98 |
RFQ |
Datasheet |
Box | EFD15/8/5 | Active | EFD | EFD 15 x 8 x 5 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.295 (7.50mm) |
|

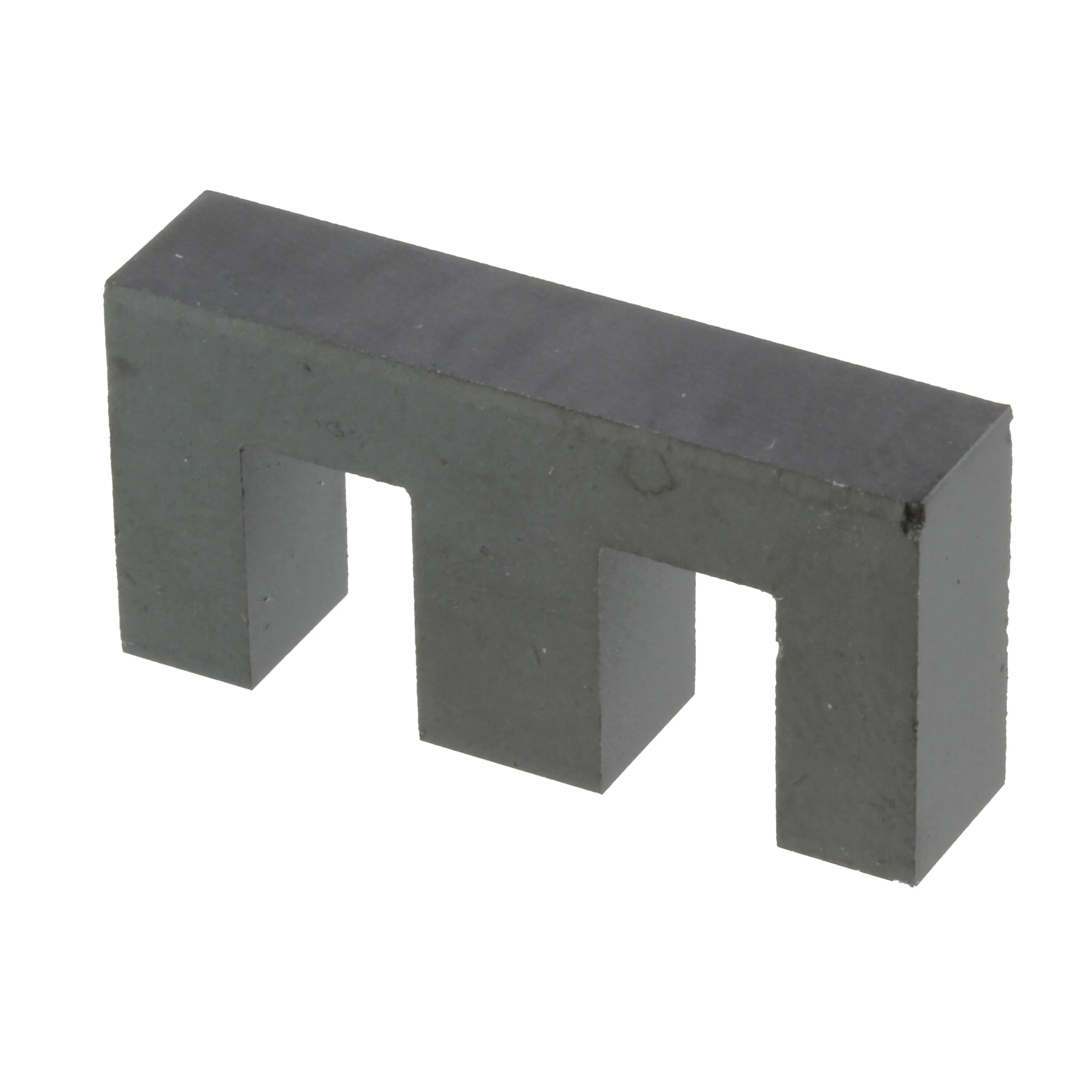

B66319G0000X187FERRITE CORE E N87 1PC |
676 | 1.06 |
RFQ |
Datasheet |
Box | E30/15/7 | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.598 (15.20mm) |
|
B66281G0000X187FERRITE CORE ELP N87 1PC |
436 | 1.12 |
RFQ |
Datasheet |
Box | ELP14/3.5/5 | Active | ELP | ELP 14 x 3.5 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.138 (3.50mm) |
|
B64290P0037X001FERRITE CORE TOROID 20NH K1 |
114 | 1.36 |
RFQ |
Datasheet |
Box | TC6.3/3.8/2.5 | Active | Toroid | - | K1 | 0.249 (6.32mm) | 20 nH | ±25% | Ungapped | - | 80 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099 (2.52mm) |
|
B65513J0000R087FERRITE CORE ER 1.5UH N87 2PCS |
962 | 1.52 |
RFQ |
Datasheet |
Box | ER14.5 | Active | ER | ER 14.5 x 6 | N87 | - | 1.5 µH | -20%, +30% | Ungapped | 1250 | 2200 | 1.1 | 19 | 17.6 | - | 333 | Uncoated | 0.116 (2.95mm) |
|

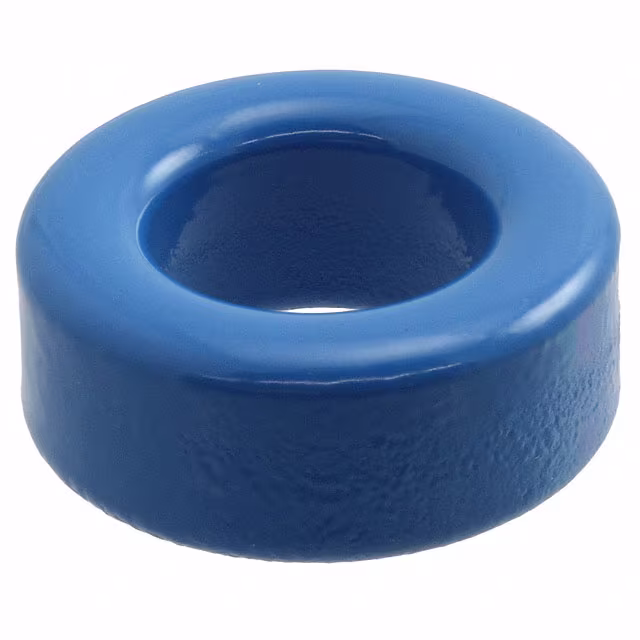

B64290L0632X087FERRITE CORE TOROID 2.13UH N87 |
694 | 1.54 |
RFQ |
Datasheet |
Box | TX20/10/7 | Active | Toroid | - | N87 | 0.835 (21.20mm) | 2.13 µH | ±25% | Ungapped | - | 2200 | 1.3 | 43.55 | 33.63 | - | 1465 | Epoxy | 0.319 (8.10mm) |
|

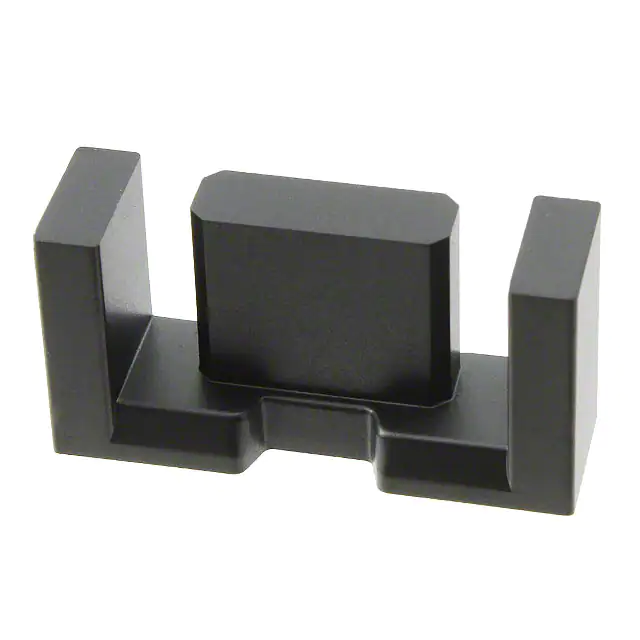

B66423G0000X187FERRITE CORE EFD N87 1PC |
625 | 1.55 |
RFQ |
Datasheet |
Box | EFD30/15/9 | Active | EFD | EFD 30 x 15 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.591 (15.00mm) |
|
B64290A0618X830FERRITE CORE TOROID 4.6UH N30 |
434 | 1.56 |
RFQ |
Datasheet |
Bulk | T25.3/14.8/15 | Active | Toroid | R 25.3 x 14.8 x 10 | N30 | 0.996 (25.30mm) | 4.62 µH | ±25% | Ungapped | - | 4300 | 1.17 | 60.07 | 51.26 | - | 3079 | Uncoated | 0.394 (10.00mm) |
