| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | Applications | Features | Class | ApprovalAgency | OperatingTemperature | BreakingCapacity@RatedVoltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

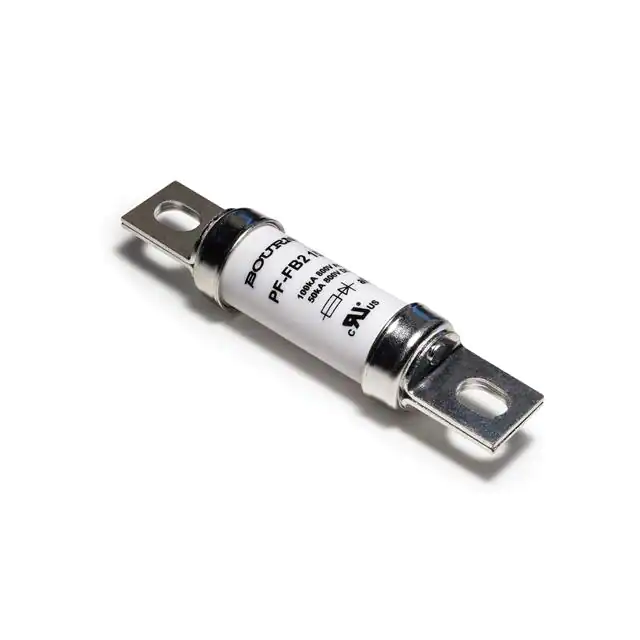

PF-FB2-300FUSE BOLT MNT 800VAC 800VDC 300A |
3,623 | 176.55 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 300A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
|
PF-FB1-300FUSE BOLT MNT 800VAC 800VDC 300A |
2,968 | 176.55 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 300A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
|
|
PF-FB2-250FUSE BOLT MNT 800VAC 800VDC 250A |
2,670 | 176.55 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 250A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
|
PF-EC1-15FUSE POWR CART PHOTO 1000VDC 15A |
3,968 | 17.33 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-E | Active | Holder | Cartridge, Ceramic | 15A | - | 1 kV | - | Solar (Photovoltaic) | - | - | cULus, UL | -55°C ~ 125°C | 20kA |
|
|
PF-EC1-30FUSE POWR CART PHOTO 1000VDC 30A |
3,823 | 17.33 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-E | Active | Holder | Cartridge, Ceramic | 30A | - | 1 kV | - | Solar (Photovoltaic) | - | - | cULus, UL | -55°C ~ 125°C | 20kA |
|
|
PF-EC1-20FUSE POWR CART PHOTO 1000VDC 20A |
3,211 | 17.33 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-E | Active | Holder | Cartridge, Ceramic | 20A | - | 1 kV | - | Solar (Photovoltaic) | - | - | cULus, UL | -55°C ~ 125°C | 20kA |
|
|
PF-EC1-25FUSE POWR CART PHOTO 1000VDC 25A |
2,393 | 17.33 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-E | Active | Holder | Cartridge, Ceramic | 25A | - | 1 kV | - | Solar (Photovoltaic) | - | - | cULus, UL | -55°C ~ 125°C | 20kA |
|
PF-HC1-30FUSE POWR CART PHOTO 600VDC 30A |
3,296 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-H | Active | Holder | Cartridge, Ceramic | 30A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
|
PF-HC1-15FUSE POWR CART PHOTO 600VDC 15A |
2,721 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-H | Active | Holder | Cartridge, Ceramic | 15A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
PF-HC1-12FUSE CT 600VAC 600VDC 12A |
3,719 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Box | POWrFuse™ PF-H | Active | Holder | Cartridge | 12A | 600 V | 600 V | - | Electrical, Industrial | - | - | cULus, UL | -55°C ~ 125°C | 100kA |
|
|
PF-HC1-6FUSE CT 600VAC 600VDC 6A |
2,432 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Box | POWrFuse™ PF-H | Active | Holder | Cartridge | 6A | 600 V | 600 V | - | Electrical, Industrial | - | - | cULus, UL | -55°C ~ 125°C | 100kA |
|
|
PF-HC1-25FUSE POWR CART PHOTO 600VDC 25A |
3,309 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-H | Active | Holder | Cartridge, Ceramic | 25A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
|
PF-HC1-20FUSE POWR CART PHOTO 600VDC 20A |
3,200 | 21.21 |
RFQ |
Datasheet |
5AG, 10mm x 38.1mm | Box | POWrFuse™ PF-H | Active | Holder | Cartridge, Ceramic | 20A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
PF-MB1-125FUSE BOLT MNT 240VAC 150VDC 125A |
2,696 | 76.76 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 125A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-100FUSE BOLT MNT 240VAC 150VDC 100A |
2,419 | 76.76 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 100A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-80FUSE BOLT MNT 240VAC 150VDC 80A |
2,004 | 76.76 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 80A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-FB2-225FUSE BOLT MNT 800VAC 800VDC 225A |
2,964 | 176.55 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 225A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
|
B0500TFUSE BRD MNT 500MA 600VAC 2SMD |
3,105 | 0.00 |
RFQ |
Datasheet |
2-SMD, Square End Block | Tape & Reel (TR),Cut Tape (CT) | Telefuse™ | Obsolete | Surface Mount | Board Mount | 500mA | 600 V | - | - | Telecom | - | - | UR | -55°C ~ 125°C | - |
|
|
B1250TFUSE BRD MNT 1.25A 600VAC 2SMD |
2,726 | 0.00 |
RFQ |
Datasheet |
2-SMD, Square End Block | Tape & Reel (TR),Cut Tape (CT) | Telefuse™ | Obsolete | Surface Mount | Board Mount | 1.25A | 600 V | - | - | Telecom | - | - | UR | -55°C ~ 125°C | - |
|
|
B2000TFUSE BOARD MOUNT 2A 600VAC 2SMD |
2,103 | 0.00 |
RFQ |
Datasheet |
2-SMD, Square End Block | Tape & Reel (TR),Cut Tape (CT) | Telefuse™ | Obsolete | Surface Mount | Board Mount | 2A | 600 V | - | - | Telecom | - | - | UR | -55°C ~ 125°C | - |
