| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | Applications | Features | Class | ApprovalAgency | OperatingTemperature | BreakingCapacity@RatedVoltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF-HT1-12FUSE TH 600VAC 600VDC 12A |
3,936 | 25.45 |
RFQ |
Datasheet |
Radial Bend Cylinder | Tray | POWrFuse™ PF-H | Active | Through Hole | Cartridge | 12A | 600 V | 600 V | - | Electrical, Industrial | - | - | cULus, UL | -55°C ~ 125°C | 100kA |
|
PF-HT1-30FUSE POWR TH PHOTO 600VDC 30A |
2,416 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Tray | POWrFuse™ PF-H | Active | Through Hole | Cartridge, Ceramic | 30A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
|
PF-HT1-25FUSE POWR TH PHOTO 600VDC 25A |
2,271 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Tray | POWrFuse™ PF-H | Active | Through Hole | Cartridge, Ceramic | 25A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
|
PF-HT1-20FUSE POWR TH PHOTO 600VDC 20A |
2,107 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Tray | POWrFuse™ PF-H | Active | Through Hole | Cartridge, Ceramic | 20A | 600 V | 600 V | - | Solar (Photovoltaic) | - | - | cULus, TUV, UL | -55°C ~ 125°C | 150kA AC, 50kA DC |
|
PF-NT2-40FUSE TH HRZ 170VDC 40A |
3,199 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 40A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|
PF-NT2-50FUSE TH HRZ 170VDC 50A |
2,532 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 50A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|
PF-NT2-60FUSE TH HRZ 170VDC 60A |
3,066 | 27.57 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 60A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
PF-NT5-40FUSE TH VRT 170VDC 40A |
2,130 | 28.63 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 40A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|
PF-NT5-50FUSE TH VRT 170VDC 50A |
2,254 | 28.63 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 50A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|
PF-NT5-60FUSE TH VRT 170VDC 60A |
2,878 | 29.69 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 60A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|

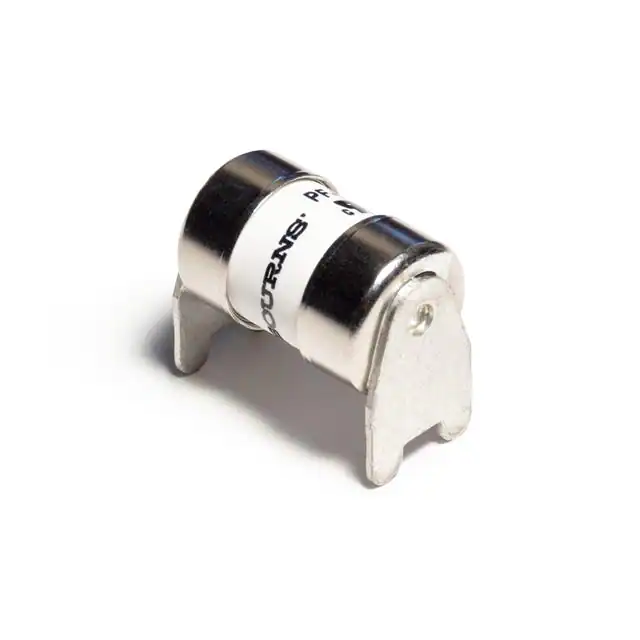

PF-NT2-80FUSE TH HRZ 170VDC 80A |
3,631 | 30.75 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 80A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
|

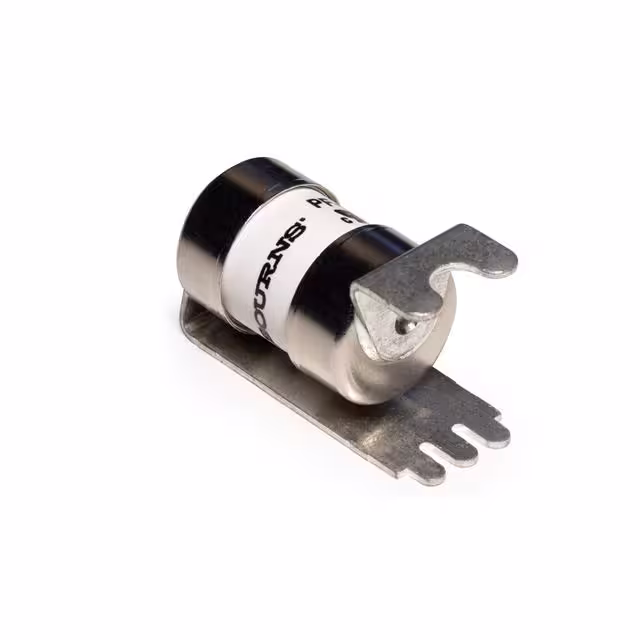

PF-NT5-80FUSE TH VRT 170VDC 80A |
3,520 | 31.82 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-N | Active | Through Hole | Cartridge | 80A | - | 170 V | - | Telecom | - | - | cURus | -55°C ~ 125°C | 100kA |
|
PF-GT3-90FUSE TH 500VAC 90A |
2,884 | 42.42 |
RFQ |
Datasheet |
Radial Bend Cylinder | Box | POWrFuse™ PF-G | Active | Through Hole | Cartridge | 90A | 500 V | - | - | Electrical, Industrial | - | - | cURus, UL | -55°C ~ 125°C | 1.5kA |
|
PF-MB1-70FUSE BOLT MNT 240VAC 150VDC 70A |
2,180 | 64.64 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 70A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-50FUSE BOLT MNT 240VAC 150VDC 50A |
3,880 | 64.64 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 50A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-60FUSE BOLT MNT 240VAC 150VDC 60A |
3,991 | 64.64 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 60A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-180FUSE BOLT MNT 240VAC 150VDC 180A |
2,671 | 76.76 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 180A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
|
PF-MB1-150FUSE BOLT MNT 240VAC 150VDC 150A |
2,768 | 76.76 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-M | Active | Bolt Mount | Cartridge | 150A | 240 V | 150 V | - | Semiconductors | - | - | cURus, UL | -55°C ~ 125°C | 160kA AC, 50kA DC |
|
PF-FB2-50FUSE BOLT MNT 800VAC 800VDC 50A |
3,815 | 78.78 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 50A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
|
PF-FB1-50FUSE BOLT MNT 800VAC 800VDC 50A |
2,751 | 78.78 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Box | POWrFuse™ PF-F | Active | Bolt Mount | Cartridge | 50A | 800 V | 800 V | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC |
