Categories
Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VI20100SG-E3/4WDIODE SCHOTTKY 100V 20A TO262AA |
2,379 | 0.60 |
RFQ |
Datasheet |
Tube | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 350 µA @ 100 V | 100 V | 20A | -40°C ~ 150°C | 1.07 V @ 20 A |
|
LSM190GE3/TR13DIODE SCHOTTKY 1A 90V SMBG |
3,678 | 0.56 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
VS-41HFR20DIODE GEN PURP 200V 40A DO203AB |
3,252 | 7.30 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 9 mA @ 200 V | 200 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
1N486B/TRSIGNAL/COMPUTER DIODE |
3,228 | 4.40 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/118 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 225 V | 225 V | 200mA | -65°C ~ 200°C | 1 V @ 100 mA | |
|

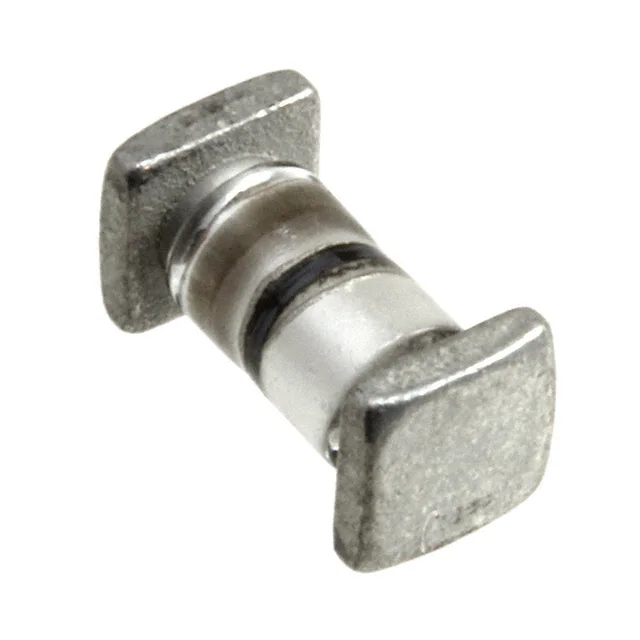

1N5419DIODE GEN PURP 500V 3A B-MELF |
2,383 | 4.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | 1 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
.jpg)
|
UFS560J/TR13DIODE GEN PURP 600V 5A DO214AB |
2,232 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 600 V | 600 V | 5A | -55°C ~ 175°C | 1.35 V @ 5 A | |
|
NRTS15100PFST3GDIODE SCHOTTKY 15A 100V TO277-3 |
2,010 | 0.60 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1150pf @ 1V, 1MHz | - | 50 µA @ 100 V | 100 V | 15A | -55°C ~ 175°C | 810 mV @ 15 A | ||
|
UPS115UE3/TR13DIODE SCHOTTKY 15V 1A POWERMITE |
3,354 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 mA @ 15 V | 15 V | 1A | -55°C ~ 150°C | 220 mV @ 1 A | |
|
1N5623US/TRRECTIFIER UFR,FRR |
2,738 | 7.30 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 12V, 1MHz | 500 ns | 500 nA @ 1 V | 1000 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
1N4148DIODE GEN PURP 100V 200MA DIE |
3,629 | 4.40 |
RFQ |
Tray | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -55°C ~ 175°C | 1 V @ 10 mA | ||
|
JANTX1N3611/TRHIGH VOLTAGE RECTIFIER |
3,933 | 4.89 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
UFS570J/TR13DIODE GEN PURP 700V 5A DO214AB |
2,777 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 700 V | 700 V | 5A | -55°C ~ 175°C | 1.35 V @ 5 A | |
|
VBT3080S-E3/4WDIODE SCHOTTKY 30A 80V TO-263AB |
2,086 | 0.60 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 80 V | 80 V | 30A | -55°C ~ 150°C | 950 mV @ 30 A | |
|
VT1080S-M3/4WDIODE SCHOTTKY 10A 80V TO-220AB |
2,099 | 0.56 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 600 µA @ 80 V | 80 V | 10A | -55°C ~ 150°C | 810 mV @ 10 A | |
|
|
VS-80PF160DIODE GEN PURP 1.6KV 80A DO203AB |
2,238 | 7.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1600 V | 80A | -55°C ~ 150°C | 1.46 V @ 220 A | |
|
|
1N914DIODE GEN PURP 100V 200MA DIE |
2,894 | 4.40 |
RFQ |
Tray | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | - | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 200mA | -55°C ~ 175°C | 1 V @ 10 mA | |
|
VS-16FL20S05DIODE GEN PURP 200V 16A DO203AA |
3,756 | 4.90 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 200 V | 200 V | 16A | -65°C ~ 150°C | 1.4 V @ 16 A | |
|
|
UFS580J/TR13DIODE GEN PURP 800V 5A DO214AB |
2,096 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 10 µA @ 800 V | 800 V | 5A | -55°C ~ 175°C | 1.35 V @ 5 A | |
|
CMR1U-06M BK PBFREEDIODE GEN PURP 600V 1A SMA |
3,215 | 0.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.4 V @ 1 A | |
|
DSS6-0025BS-TRLDIODE SCHOTTKY 25V 6A TO252AA |
3,785 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 6 mA @ 25 V | 25 V | 6A | -55°C ~ 150°C | 400 mV @ 6 A |
