Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N3600ZENER DIODE |
2,128 | 4.39 |
RFQ |
Bulk | Military, MIL-PRF-19500/231 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA | |
.jpg)
|
UFS520J/TR13DIODE GEN PURP 200V 5A DO214AB |
2,984 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 10 µA @ 200 V | 200 V | 5A | -55°C ~ 175°C | 950 mV @ 5 A | |
|
RURD420S9ADIODE GEN PURP 200V 4A DPAK |
2,533 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Not For New Designs | Surface Mount | - | 35 ns | 100 µA @ 200 V | 200 V | 4A | -65°C ~ 175°C | 1 V @ 4 A | |
|
LSM160GE3/TR13DIODE SCHOTTKY 1A 60V SMBG |
3,715 | 0.56 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
VS-EBU15006HF4DIODE GP 600V 150A POWERTAB |
2,976 | 7.29 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 100 ns | 8 µA @ 600 V | 600 V | 150A | -55°C ~ 175°C | 1.63 V @ 150 A |
|

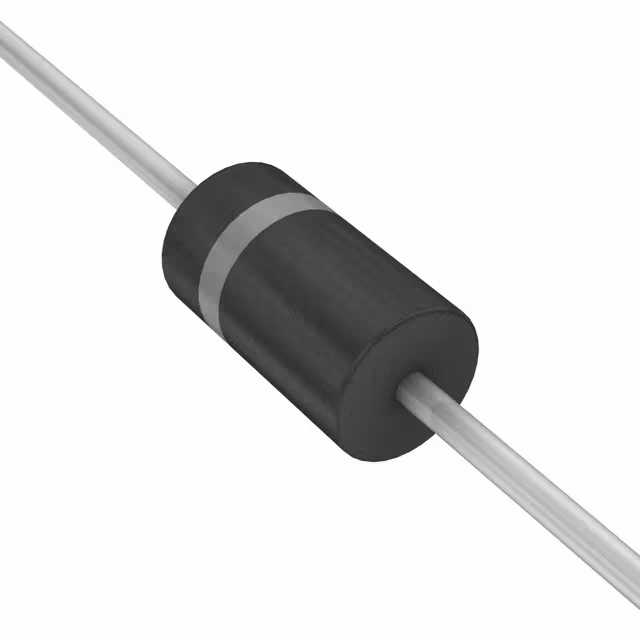

1N4247DIODE GEN PURP 600V 1A AXIAL |
3,735 | 4.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 5 µs | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.3 V @ 3 A | |
|
JAN1N5806/TRRECTIFIER UFR,FRR |
3,745 | 4.88 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 150 V | 150 V | 2.5A | -65°C ~ 175°C | 975 mV @ 2.5 A |
|
|
UFS530J/TR13DIODE GEN PURP 300V 5A DO214AB |
3,522 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 300 V | 300 V | 5A | -55°C ~ 175°C | 1.2 V @ 5 A | |
|
VS-MBRB1045-M3DIODE SCHOTTKY 45V 10A TO263AB |
2,374 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 600pF @ 5V, 1MHz | - | 100 µA @ 45 V | 45 V | 10A | -65°C ~ 150°C | 570 mV @ 10 A | |
|
|
LSM170GE3/TR13DIODE SCHOTTKY 1A 70V SMBG |
3,305 | 0.56 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
VS-95PF140WDIODE GEN PURP 1.4KV 95A DO203AB |
3,402 | 7.30 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 1400 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A | |
|
|
1N5417E3STANDARD RECTIFIER |
3,096 | 4.40 |
RFQ |
Bulk | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | - | 200 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
FFSH1665ADN-F155650V 16A SIC SBD |
3,273 | 4.88 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 463pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 11A (DC) | -55°C ~ 175°C | - | |
|
|
UFS540J/TR13DIODE GEN PURP 400V 5A DO214AB |
3,079 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 400 V | 400 V | 5A | -55°C ~ 175°C | 1.2 V @ 5 A | |
|
PDS340Q-13DIODE SCHOTTKY 40V 3A POWERDI5 |
3,575 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 490 mV @ 3 A |
|
|
LSM180GE3/TR13DIODE SCHOTTKY 1A 80V SMBG |
2,638 | 0.56 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
VS-41HF20DIODE GEN PURP 200V 40A DO203AB |
2,465 | 7.30 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9 mA @ 200 V | 200 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
1N5417/TRRECTIFIER UFR,FRR |
2,411 | 4.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
VS-100BGQ100HF4DIODE SCHOTTKY 30V 100A POWERTAB |
2,661 | 4.88 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 2.4 mA @ 30 V | 30 V | 100A | -55°C ~ 150°C | 630 mV @ 100 A |
|
|
UFS550J/TR13DIODE GEN PURP 500V 5A DO214AB |
2,073 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 500 V | 500 V | 5A | -55°C ~ 175°C | 1.2 V @ 5 A |
