| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4007G LGENERAL DIODE 1KV 1A DO-41 |
1,425,000 | 0.17 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-41 | RoHS | - | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | - | -65°C ~ 150°C | 1.1 V @ 1 A |
|

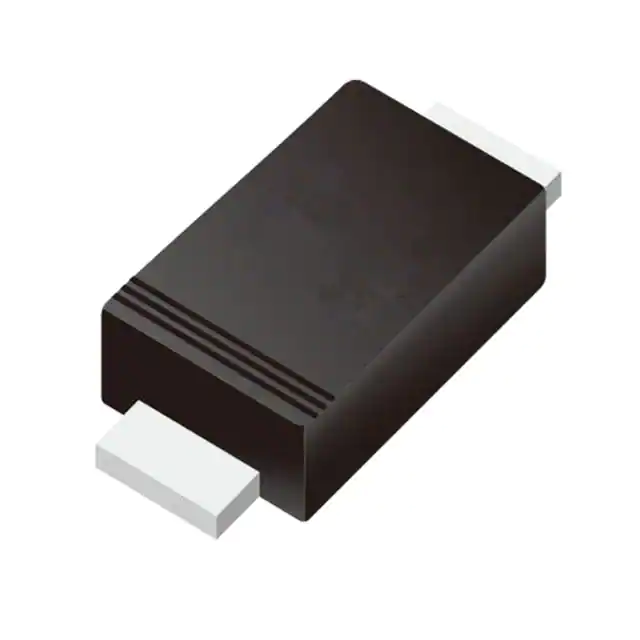

SS36FSCHOTTKY DIODE SMAF 60V 3A |
648,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMAF | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 180pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | - |
|
1N4007-T/BGeneral Diode DO-41 1KV 1A |
315,000 | 0.17 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-41 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1 V @ 1 A |
|

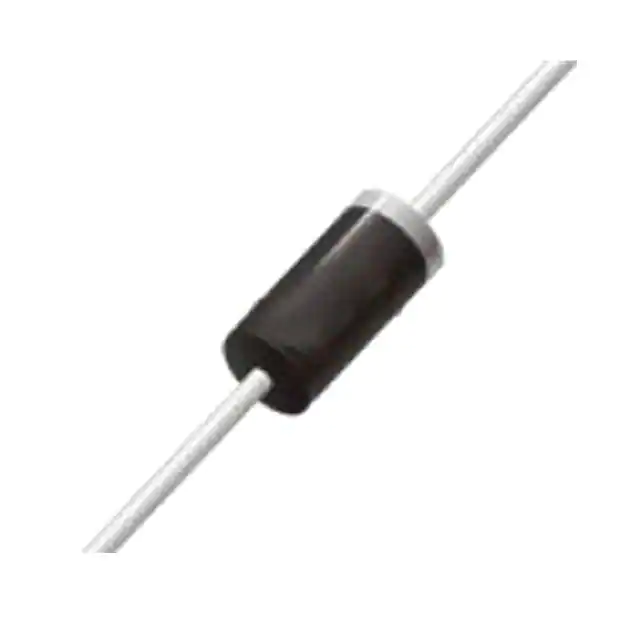

FR107-T/BFast Recovery DO-41 1KV 1A |
140,000 | 0.17 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-41 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 6 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A |
|
DSK310SCHOTTKY DIODE SOD-123FL 100V 3A |
69,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | SOD-123FL | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 160pF @ 4V, 1MHz | - | 0.3 mA @ 100 V | 100 V | 3A | -55°C ~ 125°C | 850 mV @ 3 A |
|
|
DSK36SCHOTTKY DIODE SOD-123FL 60V 3A |
405,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | SOD-123FL | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 160pF @ 4V, 1MHz | - | 0.3 mA @ 60 V | 60 V | 3A | -55°C ~ 125°C | 700 mV @ 3 A |
|
HER108-T/BHigh Efficiency DO-41 1KV 1A |
115,000 | 0.17 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-41 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 12pF @ 4V, 1MHz | 70 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A |
|
SF18-T/BSuper Fast Diode DO-41 600V 1A |
110,000 | 0.17 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-41 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A |
|

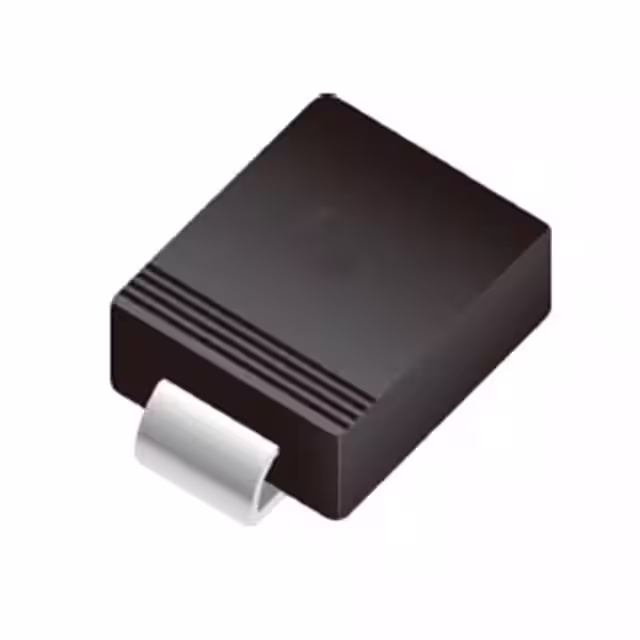

RS3MCFast Recovery SMC 1KV 3A |
321,000 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A |
|

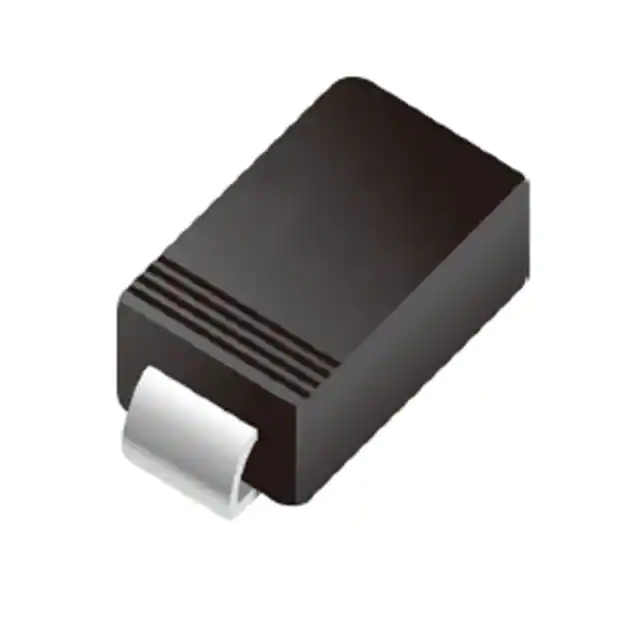

SS36SCHOTTKY DIODE SMA 60V 3A |
1,135,000 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMA | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | - |
|
SS34FSchottky Diode SMAF 40V 3A |
804,000 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMAF | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 550 mV @ 3 A |
|

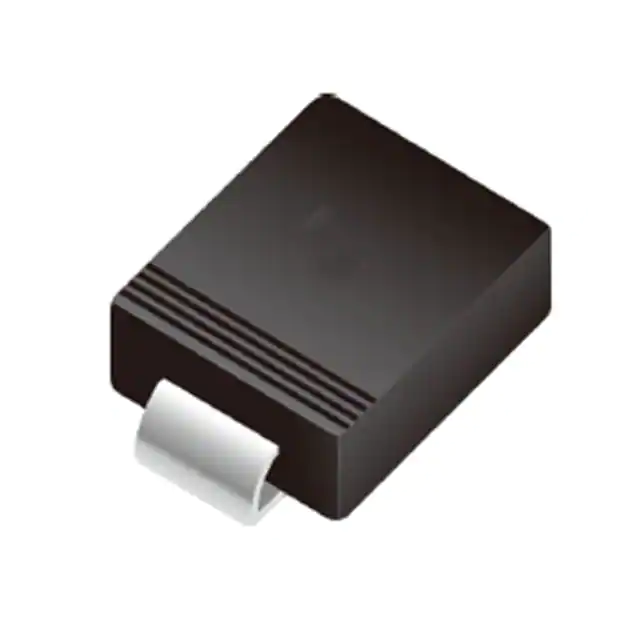

SK106CSCHOTTKY DIODE SMC 60V 10A |
66,000 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 60 V | 60 V | 10A | - | 650 mV @ 10 A |
|
|
SK1010CSCHOTTKY DIODE SMC 100V 10A |
282,000 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 100 V | 100 V | 10A | - | 850 mV @ 10 A |
|
|
SS310FSCHOTTKY DIODE SMAF100V 3A |
342,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMAF | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 180pF @ 4V, 1MHz | - | 300 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | - |
|

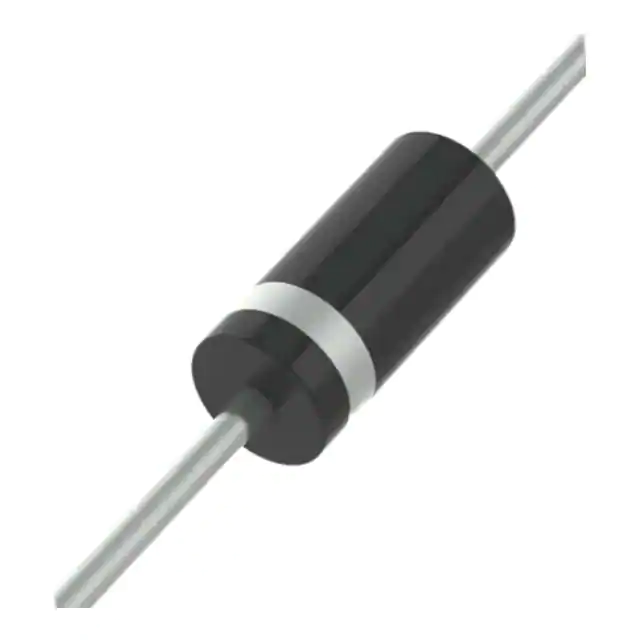

RL207GEN PURP 1000V 2.0A DO15 |
7,500 | 0.19 |
RFQ |
Datasheet |
Tape & Box (TB) | DO-15 | RoHS | - | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | - | 1000 V | 2A | -50°C ~ 150°C | 1.1 V @ 2 A |
.jpg)
|
S3MCRECTIFIER DIODE 1KV 3A SMC |
288,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | - | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | - | - | 1000 V | 3A | -55°C ~ 150°C | 1 V @ 3 A |
|
|
S3JCRECTIFIER DIODE 600V 3A SMC |
105,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | - | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | - | - | 600 V | 3A | -55°C ~ 150°C | 1 V @ 3 A |
|

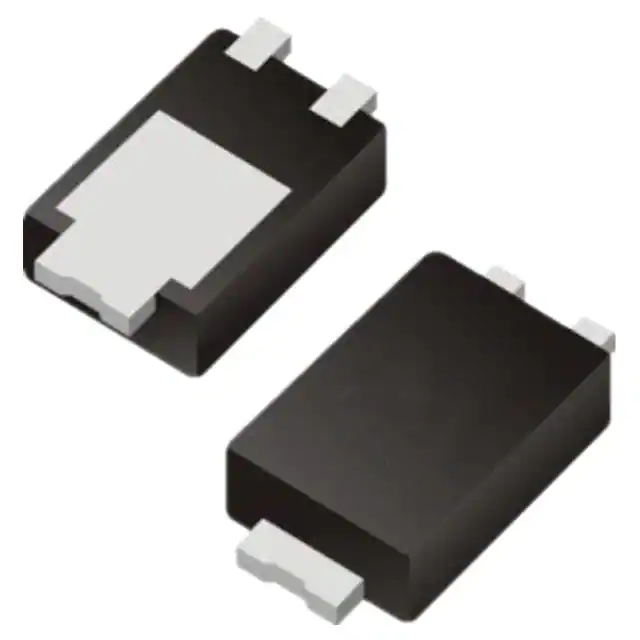

SB1045LSCHOTTKY DIODE TO-277 45V 10A |
370,000 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 45 V | 45 V | 10A | - | 550 mV @ 10 A | |
|
|
S5MCRECTIFIER DIODE 1KV 5A SMC |
78,000 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | SMC | RoHS | - | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | - | - | 1000 V | 5A | -55°C ~ 150°C | 1 V @ 5 A |
|
|
SB10100LSCHOTTKY DIODE TO-277 100V 10A |
160,000 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 100 V | 100 V | 10A | - | 850 mV @ 10 A |
