| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF1MRECTIFIER DIODE, 1A, 1000V, DO-2 |
3,739 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 1 V | 1 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A | |
|
SS29FARECTIFIER DIODE, SCHOTTKY, 2A, 9 |
3,802 | 0.12 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 100 µA @ 90 V | 90 V | 2A | -55°C ~ 150°C | 850 mV @ 2 A |
|
SB350RECTIFIER DIODE, SCHOTTKY, 3A, 5 |
2,793 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 3A | -50°C ~ 150°C | 680 mV @ 3 A | |
|
|
PMEG060V050EPD,139NOW NEXPERIA PMEG060V050EPD |
3,171 | 0.12 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
ISL9K1560G3RECTIFIER DIODE, AVALANCHE, 2 EL |
3,392 | 1.33 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
IDW30E60AFKSA1IDW30E60 - SILICON POWER DIODE |
2,236 | 1.34 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 143 ns | 40 µA @ 600 V | 600 V | 60A (DC) | -40°C ~ 175°C | 2 V @ 30 A | |
|
IDW40E65D1IDW40E65 - SILICON POWER DIODE |
3,341 | 1.36 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 129 ns | 40 µA @ 650 V | 650 V | 80A | -40°C ~ 175°C | 1.7 V @ 40 A | |
|
IDD05SG60CIDD05SG60 - COOLSIC SCHOTTKY DIO |
2,455 | 1.39 |
RFQ |
Datasheet |
Bulk | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 110pF @ 1V, 1MHz | 0 ns | 30 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 175°C | 2.3 V @ 5 A |
|
|
RHRG3060-F085RECTIFIER DIODE, AVALANCHE, 30A, |
2,551 | 1.49 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.1 V @ 30 A |
|
|
ISL9R1560G2-F085RECTIFIER DIODE, AVALANCHE, 15A, |
3,179 | 1.55 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, Stealth™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 100 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 2.2 V @ 15 A |
|

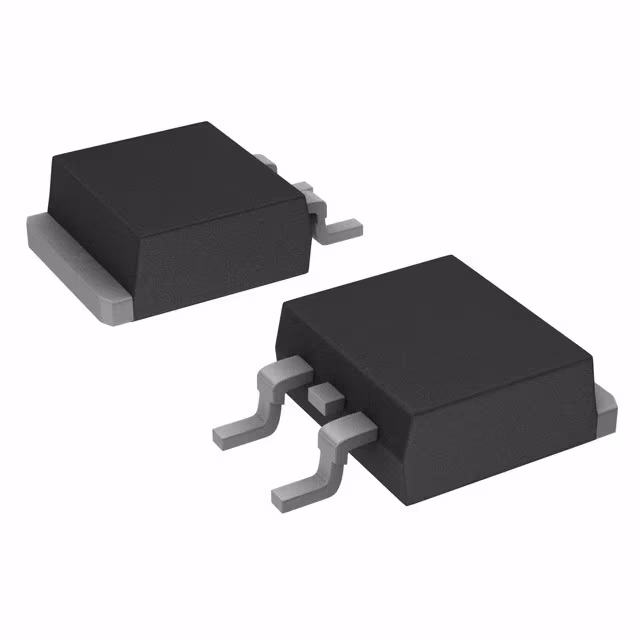

RUR1S1560S9A15A, 600V, ULTRAFAST DIODE |
3,301 | 0.97 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 60 ns | 100 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 1.5 V @ 15 A | |
|
MUR180EDIODE GEN PURP 800V 1A AXIAL |
22,000 | 0.14 |
RFQ |
Datasheet |
Bulk,Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 100 ns | 10 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.75 V @ 1 A |
|
MUR405DIODE GEN PURP 50V 4A DO201AD |
2,694 | 0.14 |
RFQ |
Datasheet |
Bulk,Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 5 µA @ 50 V | 50 V | 4A | -65°C ~ 175°C | 890 mV @ 4 A |
|
MUR415DIODE GEN PURP 150V 4A DO201AD |
3,807 | 0.14 |
RFQ |
Datasheet |
Bulk,Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 5 µA @ 150 V | 150 V | 4A | -65°C ~ 175°C | 890 mV @ 4 A |
|
|
MUR480EDIODE GEN PURP 800V 4A DO201AD |
18,030 | 0.20 |
RFQ |
Datasheet |
Bulk,Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 100 ns | 25 µA @ 800 V | 800 V | 4A | -65°C ~ 175°C | 1.85 V @ 4 A |
|
IDH05G65C5XKSA2IDH05G65 - 600 V SILICION CARBID |
3,878 | 1.13 |
RFQ |
Datasheet |
Bulk | CoolSiC™+ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 160pF @ 1V, 1MHz | 0 ns | 90 µA @ 650 V | 650 V | 5A (DC) | -55°C ~ 175°C | 1.7 V @ 5 A |
|
MURS140T3DIODE ULTRA FAST 1A 400V SMB |
3,659 | 0.20 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 75 ns | 5 µA @ 400 V | 400 V | 2A | - | 1.25 V @ 1 A | |
|
MBR10100DIODE SCHOTTKY 100V 10A TO220-2 |
2,147 | 0.37 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 100 V | 100 V | 10A | -65°C ~ 175°C | 800 mV @ 10 A |
|
|
MURS115T3DIODE ULTRA FAST 1A 150V SMB |
2,211 | 0.20 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 35 ns | 2 µA @ 150 V | 150 V | 2A | - | 875 mV @ 1 A | |
|
|
MUR815DIODE GEN PURP 150V 8A TO220AC |
4,391 | 0.52 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 5 µA @ 150 V | 150 V | 8A | -65°C ~ 175°C | 975 mV @ 8 A |
