| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUR3015RECTIFIER DIODE, 30A, 150V |
460 | 0.81 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 30 µA @ 150 V | 150 V | 30A | -55°C ~ 175°C | 1 V @ 30 A | |
|
RHRD460S96HYPER-FAST RECOVERY RECTIFIER |
610 | 0.84 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 35 ns | 100 µA @ 600 V | 600 V | 4A | -65°C ~ 175°C | 2.1 V @ 4 A | |
|
|
RHRP1590RECTIFIER DIODE |
630 | 0.93 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 70 ns | 100 µA @ 900 V | 900 V | 15A | -65°C ~ 175°C | 3 V @ 15 A | |
|
|
RURP1570RECTIFIER DIODE |
956 | 0.97 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 125 ns | 100 µA @ 700 V | 700 V | 15A | -65°C ~ 175°C | 1.8 V @ 15 A | |
|
FFPF2OU60DNTURECTIFIER, AVALANCHE, 1 PHASE, 2 |
700 | 1.09 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
BYV415K-600PQ127ULTRAFAST RECTIFIER DIODE |
438 | 1.09 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
RHRP8120S2536RECTIFIER, AVALANCHE, 2 CHANNEL, |
700 | 1.11 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
PEF20470HV1.1SWITI MTSI-L SWITCHING IC |
2,609 | 33.77 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
PMEG45A10EPD139NEXPERIA PMEG45A10EPD - RECTIFIE |
5,000 | 0.25 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
PMEG45A10EPDPMEG45A10EPD - 45 V, 10 A LOW VF |
3,647 | 0.25 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
SB560RECTIFIER DIODE, SCHOTTKY, 5A, 6 |
33,710 | 0.26 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 5A | -50°C ~ 150°C | 670 mV @ 5 A | |
|
|
EGP30CRECTIFIER DIODE, 3A, 150V, DO-20 |
5,000 | 0.26 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 95pF @ 4V, 1MHz | 50 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A | |
|
|
MUR460FFGRECTIFIER DIODE, 4A, 600V, DO-20 |
89,870 | 0.27 |
RFQ |
Datasheet |
Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 600 V | 600 V | 4A | -65°C ~ 175°C | 1.28 V @ 4 A |
|
|
MUR460FFGRECTIFIER DIODE, 4A, 600V, DO-20 |
4,000 | 0.27 |
RFQ |
Datasheet |
Bulk | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 600 V | 600 V | 4A | -65°C ~ 175°C | 1.28 V @ 4 A |
|

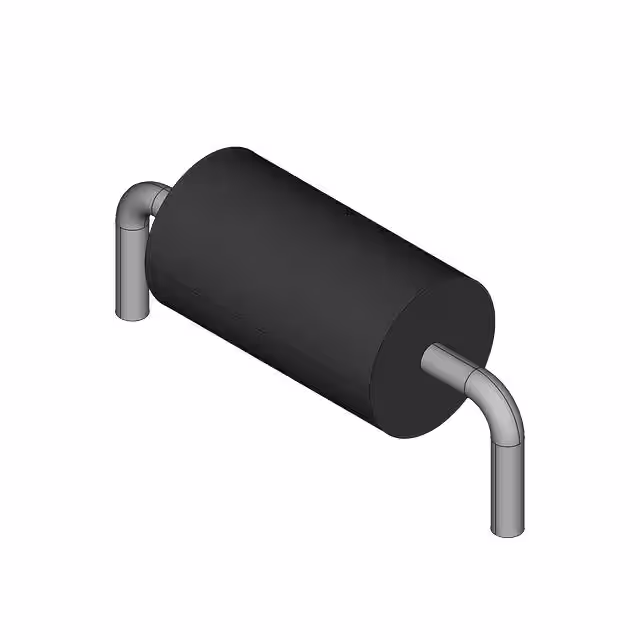

EGP30ARECTIFIER DIODE, 3A, 50V, DO-201 |
3,800 | 0.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 95pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A | |
|
EGP20GRECTIFIER DIODE, 2A, 400V, DO-15 |
3,070 | 0.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 2A | -65°C ~ 150°C | 1.25 V @ 2 A | |
|
|
EGP30FRECTIFIER DIODE, 3A, 300V, DO-20 |
2,500 | 0.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 50 ns | 5 µA @ 300 V | 300 V | 3A | -65°C ~ 150°C | 1.25 V @ 3 A | |
|
SS32RECTIFIER DIODE, SCHOTTKY, 3A, 2 |
168,219 | 0.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 20 V | 20 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A | |
|
|
EGP30KRECTIFIER DIODE, 3A, 800V, DO-20 |
5,057 | 0.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 75pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 3A | -65°C ~ 150°C | 1.7 V @ 3 A | |
|
|
EGP30BRECTIFIER DIODE, 3A, 100V, DO-20 |
2,400 | 0.28 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 95pF @ 4V, 1MHz | 50 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A |
