| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBAS21LT1GDIODE GEN PURP 250V 200MA SOT23 |
10,998 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
MUR440RLGDIODE GEN PURP 400V 4A DO201AD |
2,656 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 75 ns | 10 µA @ 400 V | 400 V | 4A | -65°C ~ 175°C | 1.28 V @ 4 A |
|
FFSH4065BDN-F085SIC DIODE 650V |
310 | 9.33 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 866pF @ 1V, 100kHz | 0 ns | 40 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | 1.7 V @ 20 A |
|
MMBD1501ADIODE GEN PURP 200V 200MA SOT23 |
47,976 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | - | 10 nA @ 180 V | 200 V | 200mA | 150°C (Max) | 1.1 V @ 200 mA | |
|
1N456ADIODE GEN PURP 30V 500MA DO35 |
22,389 | 0.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 25 nA @ 25 V | 30 V | 500mA | 175°C (Max) | 1 V @ 100 mA | |
|
|
1N485BDIODE GEN PURP 200V 200MA DO35 |
11,696 | 0.32 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 175 V | 200 V | 200mA | 175°C (Max) | 1 V @ 100 mA | |
|
1N5401RLGDIODE GEN PURP 100V 3A DO201AD |
19,934 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 100 V | 100 V | 3A | -65°C ~ 150°C | 1 V @ 3 A | |
|
|
1N457DIODE GEN PURP 70V 200MA DO35 |
2,262 | 0.32 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 8pF @ 0V, 1MHz | - | 25 nA @ 60 V | 70 V | 200mA | 175°C (Max) | 1 V @ 20 mA | |
|
BYW80-200GDIODE GEN PURP 200V 8A TO220-2 |
1,270 | 1.14 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 200 V | 200 V | 8A | -65°C ~ 175°C | 1.25 V @ 22 A |
|
FFPF30UA60SDIODE GEN PURP 600V 30A TO220-2 |
1,332 | 1.37 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | 100 µA @ 600 V | 600 V | 30A | -65°C ~ 150°C | 2.2 V @ 30 A | |
|
FFSP08120ADIODE SCHOTTKY 1.2KV 8A TO220-2 |
762 | 6.44 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 538pF @ 1V, 100kHz | - | 200 µA @ 1200 V | 1200 V | 8A (DC) | -55°C ~ 175°C | 1.75 V @ 8 A | |
|
|
RHRP1560DIODE GEN PURP 600V 15A TO220AC |
2,414 | 1.59 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 100 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 2.1 V @ 15 A | |
|
|
1N4148TRDIODE GEN PURP 100V 200MA DO35 |
519,967 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -65°C ~ 175°C | 1 V @ 10 mA | |
|
FDLL4148DIODE GEN PURP 100V 200MA SOD80 |
347,441 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -65°C ~ 175°C | 1 V @ 10 mA | |
|
|
RHRP3060DIODE GEN PURP 600V 30A TO220AC |
1,218 | 2.04 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 250 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.1 V @ 30 A | |
|
LL4148DIODE GEN PURP 100V 200MA SOD80 |
637,070 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 200mA | -55°C ~ 175°C | 1 V @ 10 mA | |
|
FFSPF2065A650V 20A SIC SBD |
685 | 10.65 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1085pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 20A (DC) | -55°C ~ 175°C | - | |
|
BAS21LT1GDIODE GP 250V 200MA SOT23-3 |
668,612 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|

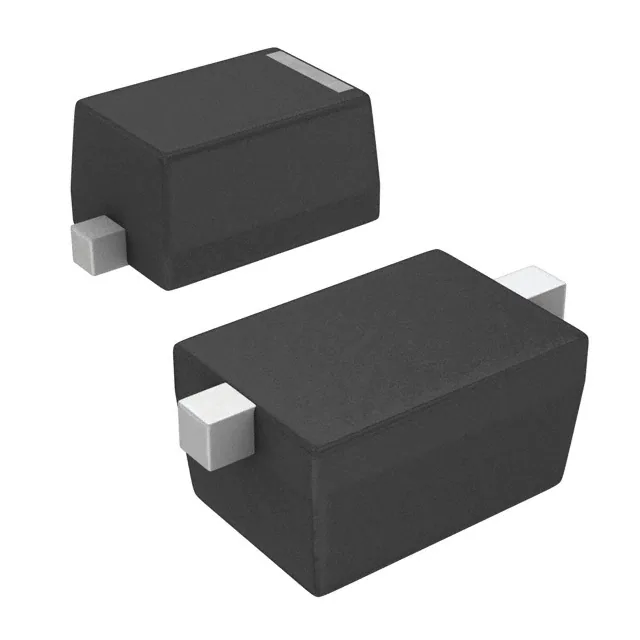

1N4148WTDIODE GEN PURP 75V 200MA SOD523F |
273,131 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 75 V | 200mA | -55°C ~ 150°C | 1 V @ 10 mA | |
|
1N4148WSDIODE GEN PURP 75V 150MA SOD323F |
496,161 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 75 V | 150mA | 150°C (Max) | 1 V @ 10 mA |
