| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1B-FSMT GLASS PASSIVATED RECTIFIER |
2,766 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1D-FSMT GLASS PASSIVATED RECTIFIER |
3,116 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1G-FSMT GLASS PASSIVATED RECTIFIER |
2,064 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1J-FSMT GLASS PASSIVATED RECTIFIER |
2,562 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1K-FSMT GLASS PASSIVATED RECTIFIER |
2,030 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
S1M-FMODULAR |
2,362 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
ER38MODULAR |
3,372 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
ER3ASMT SUPER FAST RECTIFIER |
3,815 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 50 V | 50 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A | |
|
|
ER3CSMT SUPER FAST RECTIFIER |
2,013 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A | |
|
|
ER3DSMT SUPER FAST RECTIFIER |
2,906 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 150°C | 950 mV @ 3 A | |
|
|
ER3ESMT SUPER FAST RECTIFIER |
3,084 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 300 V | 300 V | 3A | -65°C ~ 150°C | 1.25 V @ 3 A | |
|
|
ER3JSMT SUPER FAST RECTIFIER |
2,643 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 3A | -65°C ~ 150°C | 1.7 V @ 3 A | |
|
|
GS1ASMT GLASS PASSIVATED RECTIFIER |
2,979 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
RS1JTRDIODE GEN PURP 600V 1A SMA |
99,605 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
RS1GTRDIODE GEN PURP 400V 1A SMA |
115,074 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
|
RS1BTRDIODE GEN PURP 100V 1A SMA |
111,991 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1.3 V @ 1 A | |
|
BAV19WTRDIODE GEN PURP 100V 200MA SOD123 |
314,093 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 100 V | 200mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|

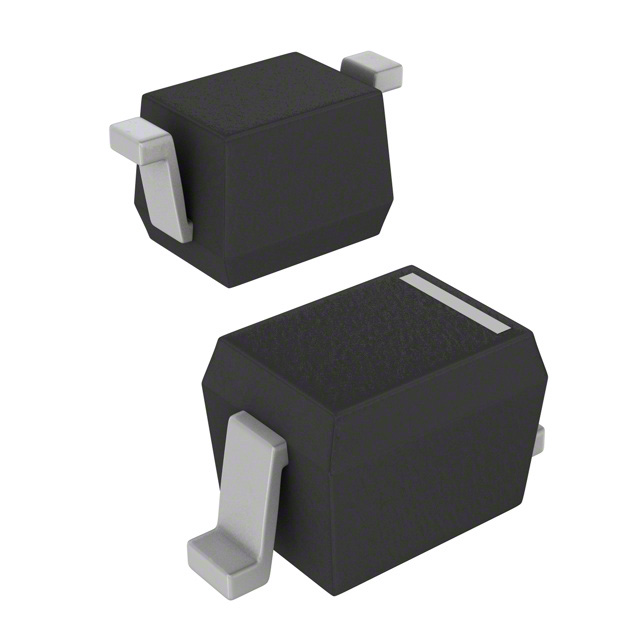

BAV19WSTRDIODE GEN PURP 100V 200MA SOD323 |
179,518 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 100 V | 200mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
BAV21WSTRDIODE GEN PURP 200V 200MA SOD323 |
155,490 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 100 V | 200 V | 200mA | -65°C ~ 150°C | 1 V @ 100 mA | |
|
BY133TADIODE GEN PURP 1.3KV 1A DO41 |
37,409 | 0.26 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1300 V | 1300 V | 1A | -65°C ~ 125°C | 1 V @ 1 A |
