| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R7012003XXUADIODE GEN PURP 2KV 300A DO200 |
2,082 | 138.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2000 V | 2000 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|

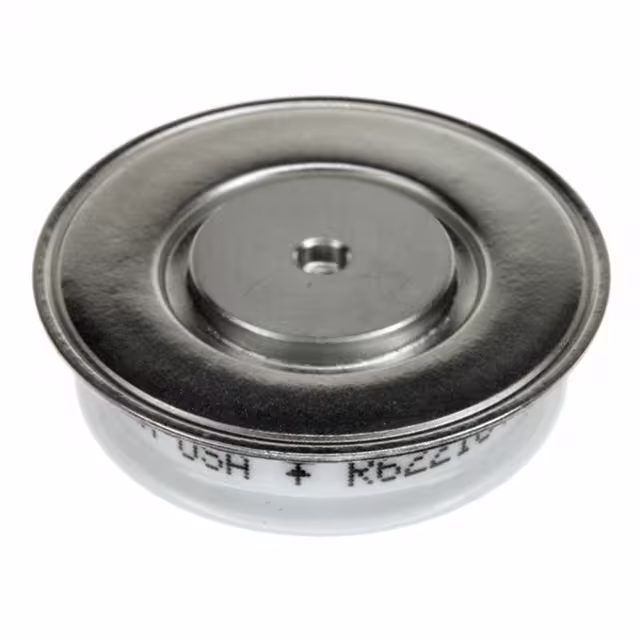

R6221640ESOODIODE GEN PURP 1.6KV 400A DO200 |
3,616 | 93.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 50 mA @ 1600 V | 1600 V | 400A | -40°C ~ 150°C | 2 V @ 800 A | |
|
|
R7220605ESOODIODE GEN PURP 600V 500A DO200AB |
2,065 | 93.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3 µs | 50 mA @ 600 V | 600 V | 500A | - | 2.25 V @ 1500 A | |
|
|
R7220607CSOODIODE GEN PURP 600V 700A DO200AB |
3,507 | 93.33 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 5 µs | 50 mA @ 600 V | 600 V | 700A | - | 1.65 V @ 1500 A | |
|
|
R7202806XXOODIODE GP 2.8KV 600A DO200AB |
3,483 | 138.29 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7 µs | 50 mA @ 2800 V | 2800 V | 600A | - | 2.15 V @ 1500 A | |
|
|
R6202630XXOODIODE GP 2.6KV 300A DO200AA R62 |
3,999 | 93.62 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 6 µs | 50 mA @ 2600 V | 2600 V | 300A | - | 1.7 V @ 800 A | |
|
|
R7002403XXUADIODE GEN PURP 2.4KV 300A DO200 |
2,956 | 146.56 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2400 V | 2400 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
R7012403XXUADIODE GEN PURP 2.4KV 300A DO200 |
3,702 | 146.56 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2400 V | 2400 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
R9G00212XXDIODE GP 200V 1200A DO200AB |
3,091 | 146.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 150 mA @ 200 V | 200 V | 1200A | - | 1.45 V @ 1500 A | |
|
|
R7200609XXOODIODE GEN PURP 600V 900A DO200AB |
3,000 | 94.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 600 V | 600 V | 900A | - | 1.6 V @ 1500 A | |
|
|
A437PDDIODE GEN PURP 1.4KV 600A DO200 |
2,978 | 146.85 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 3.5 µs | - | 1400 V | 600A | -40°C ~ 125°C | - | |
|
|
R6002625XXYADIODE GEN PURP 2.6KV 250A DO205 |
3,528 | 94.76 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 2600 V | 2600 V | 250A | -65°C ~ 175°C | 1.5 V @ 800 A | |
|
|
R6012625XXYADIODE GEN PURP 2.6KV 250A DO205 |
3,898 | 94.76 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 2600 V | 2600 V | 250A | -65°C ~ 175°C | 1.5 V @ 800 A | |
|
|
R7222407CSOODIODE GP 2.4KV 700A DO200AB |
2,361 | 147.92 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 5 µs | 50 mA @ 2400 V | 2400 V | 700A | - | 1.65 V @ 1500 A | |
|
|
R6021435ESYADIODE GEN PURP 1.4KV 350A DO205 |
3,784 | 94.85 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 2 µs | 50 mA @ 1400 V | 1400 V | 350A | -45°C ~ 150°C | 1.5 V @ 800 A | |
|
|
R7222507ASOODIODE GP 2.5KV 700A DO200AB |
3,876 | 147.92 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 5 µs | 50 mA @ 2500 V | 2500 V | 700A | - | 1.65 V @ 1500 A | |
|
|
R6031435ESYADIODE GEN PURP 1.4KV 350A DO205 |
3,221 | 94.85 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 2 µs | 50 mA @ 1400 V | 1400 V | 350A | -45°C ~ 150°C | 1.5 V @ 800 A | |
|
|
A190PEDIODE GEN PURP 1.5KV 250A DO205 |
2,263 | 95.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1500 V | 250A | -40°C ~ 200°C | 1.3 V @ 250 A | |
|
|
A190RPEDIODE GEN PURP REV 1.5KV DO205AB |
3,054 | 95.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1500 V | 250A | -40°C ~ 200°C | 1.3 V @ 250 A | |
|
|
R7220606HSOODIODE GEN PURP 600V 650A DO200AB |
3,053 | 95.48 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 2 µs | 50 mA @ 600 V | 600 V | 650A | - | 2.05 V @ 1500 A |
