| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R7222405ASOODIODE GP 2.4KV 500A DO200AB |
2,406 | 135.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3 µs | 50 mA @ 2400 V | 2400 V | 500A | - | 2.25 V @ 1500 A | |
|
|
R7200412XXOODIODE GP 400V 1200A DO200AB |
3,582 | 92.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 13 µs | 50 mA @ 400 V | 400 V | 1200A | - | 1.2 V @ 1500 A | |
|
|
R7200606XXOODIODE GEN PURP 600V 600A DO200AB |
3,332 | 92.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7 µs | 50 mA @ 600 V | 600 V | 600A | - | 2.15 V @ 1500 A | |
|
|
A190PDDIODE GEN PURP 1.4KV 250A DO205 |
2,336 | 92.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1400 V | 250A | -40°C ~ 200°C | 1.3 V @ 250 A | |
|
|
A190RPDDIODE GEN PURP REV 1.4KV DO205AB |
3,547 | 92.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1400 V | 250A | -40°C ~ 200°C | 1.3 V @ 250 A | |
|
|
R7002004XXUADIODE GEN PURP 2KV 450A DO200 |
2,828 | 142.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 2000 V | 2000 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|
R7002203XXUADIODE GEN PURP 2.2KV 300A DO200 |
3,672 | 142.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2200 V | 2200 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
R7012004XXUADIODE GEN PURP 2KV 450A DO200 |
3,823 | 142.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 2000 V | 2000 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|
R7012203XXUADIODE GEN PURP 2.2KV 300A DO200 |
3,310 | 142.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2200 V | 2200 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
R7203006XXOODIODE GP 3KV 600A DO200AA R62 |
3,625 | 142.58 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7 µs | 50 mA @ 3000 V | 3000 V | 600A | - | 2.15 V @ 1500 A | |
|

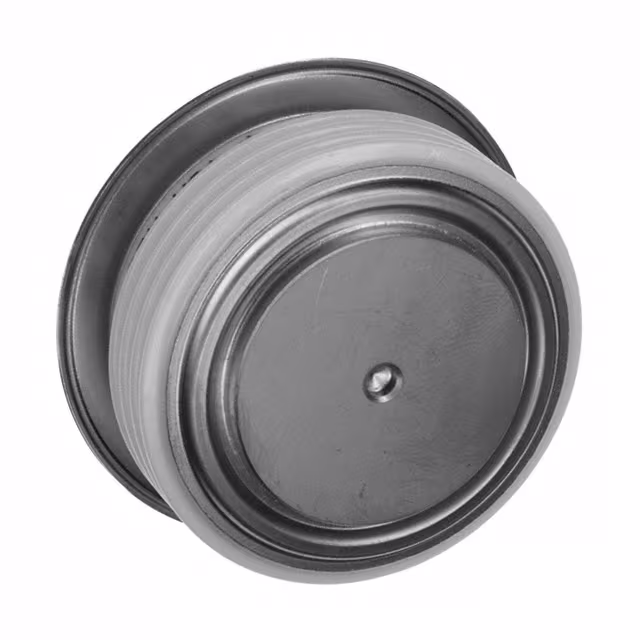

R7221608CSOODIODE GP 1.6KV 800A DO200AB |
2,185 | 137.22 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 2 µs | 50 mA @ 1600 V | 1600 V | 800A | - | 1.65 V @ 1500 A | |
|
|
R7S01412XXDIODE GP 1.4KV 1200A DO200AA R62 |
2,097 | 92.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 1400 V | 1400 V | 1200A | - | 1.6 V @ 1500 A | |
|
|
A430PEDIODE GP 1.5KV 1000A DO200AB |
2,893 | 142.92 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 2000 V | 1500 V | 1000A | - | 1.42 V @ 3140 A | |
|
|
R7S01608XXDIODE GP 1.6KV 800A DO200AA R62 |
2,383 | 92.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 1600 V | 1600 V | 800A | - | 1.8 V @ 1500 A | |
|
|
R7001804XXUADIODE GEN PURP 1.8KV 450A DO200 |
3,476 | 138.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 1800 V | 1800 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A | |
|
|
R7S01416XXRECTIFIER DISC R7S |
2,341 | 92.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7 µs | 50 mA @ 1400 V | 1400 V | 2020A | -65°C ~ 200°C | - | |
|
|
R7222207CSOODIODE GP 2.2KV 700A DO200AB |
2,044 | 143.64 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 5 µs | 50 mA @ 2200 V | 2200 V | 700A | - | 1.65 V @ 1500 A | |
|
|
R7002003XXUADIODE GEN PURP 2KV 300A DO200 |
3,698 | 138.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 2000 V | 2000 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
R7222505CSOODIODE GP 2.5KV 500A DO200AB |
2,639 | 143.64 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 3 µs | 50 mA @ 2500 V | 2500 V | 500A | - | 2.25 V @ 1500 A | |
|
|
R7011804XXUADIODE GEN PURP 1.8KV 450A DO200 |
3,266 | 138.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 11 µs | 50 mA @ 1800 V | 1800 V | 450A | -65°C ~ 175°C | 1.6 V @ 1500 A |
