Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
S5DL-TPDIODE GEN PURP 200V 5A DO214AB |
3,282 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 100pF @ 4V, 1MHz | - | 10 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.2 V @ 5 A | |
|
CDSER4448DIODE GEN PURP 80V 125MA 0503 |
2,835 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 9pF @ 0.5V, 1MHz | 9 ns | 100 nA @ 80 V | 80 V | 125mA | 125°C (Max) | 1 V @ 100 mA | |
|
MBR6150_T0_00001SCHOTTKY BARRIER RECTIFIERS |
2,326 | 1.24 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 150 V | 150 V | 6A | -65°C ~ 175°C | 900 mV @ 6 A | ||
|
|
BD8100YS_S2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,126 | 0.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 100 V | 100 V | 8A | -65°C ~ 175°C | 800 mV @ 8 A | ||
|
DSEP8-12ADIODE GEN PURP 1.2KV 10A TO220AC |
2,652 | 1.82 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 60 µA @ 1200 V | 1200 V | 10A | -55°C ~ 175°C | 2.94 V @ 10 A |
|
STTH3006DPIDIODE GEN PURP 600V 30A DOP3I |
3,884 | 6.42 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 40 µA @ 600 V | 600 V | 30A | 150°C (Max) | 3.6 V @ 30 A | |
|
NRVBSS14HEDIODE SCHOTTKY SOD323-2 |
3,461 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 55pF @ 4V, 1MHz | 5.6 ns | 50 µA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A |
|
1SS400-GDIODE GEN PURP 80V 100MA SOD523 |
3,655 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
|
MBR640_T0_00001SCHOTTKY BARRIER RECTIFIERS |
3,890 | 1.24 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 40 V | 40 V | 6A | -55°C ~ 150°C | 700 mV @ 6 A | ||
|
|
RURP860_NLRECTIFIER DIODE |
2,486 | 0.37 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 70 ns | 100 µA @ 600 V | 600 V | 8A | -65°C ~ 175°C | 1.5 V @ 8 A | ||
|
MURF1560GDIODE GEN PURP 600V 15A TO220FP |
2,762 | 1.85 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 10 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A |
|
STPSC20065DDIODE SCHOTTKY 650V 20A TO220AC |
2,350 | 6.42 |
RFQ |
Datasheet |
Tube | ECOPACK®2 | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1250pF @ 0V, 1MHz | 0 ns | 300 µA @ 650 V | 650 V | 20A | -40°C ~ 175°C | 1.45 V @ 20 A |
|
|
SB3100L_AY_00001LOW VF SCHOTTKY BARRIER RECTIFIE |
3,465 | 0.55 |
RFQ |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 740 mV @ 3 A | ||
|
AS1K-HFAUTOMOTIVE RECTIFIER GEN PURP 80 |
2,276 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
MBR650F_T0_00001SCHOTTKY BARRIER RECTIFIERS |
2,986 | 1.24 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 50 V | 50 V | 6A | -65°C ~ 175°C | 750 mV @ 6 A | ||
|
STPS5L60SDIODE SCHOTTKY 60V 5A SMC |
2,101 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 220 µA @ 60 V | 60 V | 5A | 150°C (Max) | 520 mV @ 5 A | |
|
STTH8R06DIRGDIODE GEN PURP 600V 8A TO220AC |
3,547 | 1.86 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 45 ns | 30 µA @ 600 V | 600 V | 8A | 175°C (Max) | 2.9 V @ 8 A | |
|

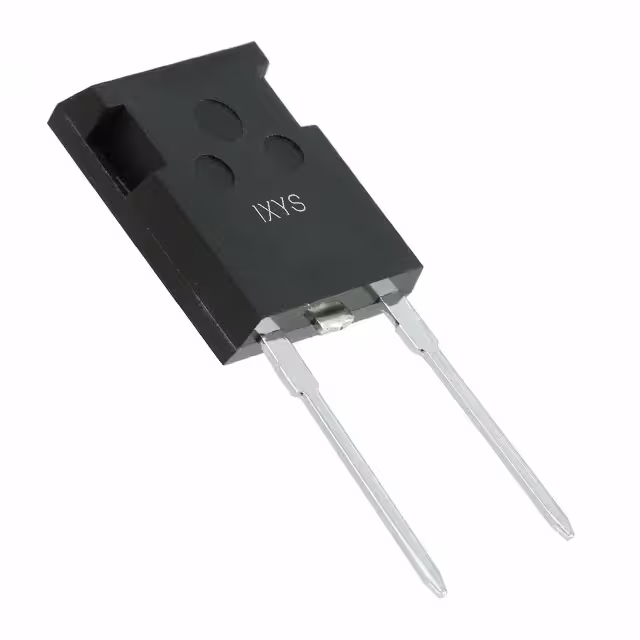

DSEP15-12CRDIODE GP 1.2KV 15A ISOPLUS247 |
3,430 | 6.46 |
RFQ |
Datasheet |
Tube | HiPerDynFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 20 ns | 100 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 4.04 V @ 15 A |
|
|
MUR460IM_AY_00001SUPERFAST RECOVERY RECTIFIERS |
2,510 | 0.55 |
RFQ |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 600 V | 600 V | 4A | -55°C ~ 175°C | 1.28 V @ 4 A | ||
|
|
AS1J-HFAUTOMOTIVE RECTIFIER GEN PURP 60 |
2,262 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
