Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-25ETS12SLHM3DIODES - D2PAK-E3 |
3,687 | 2.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 100 µA @ 1200 V | 1200 V | 25A | -40°C ~ 150°C | 1.14 V @ 25 A |
|

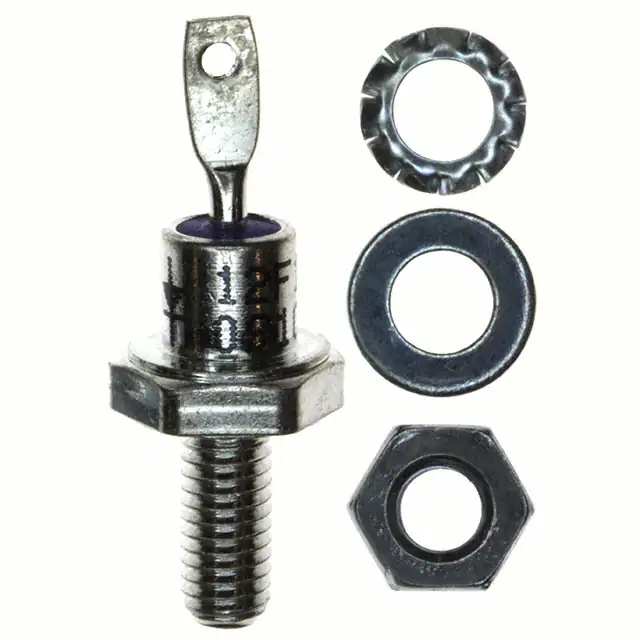

VS-12F10DIODE GEN PURP 100V 12A DO203AA |
3,622 | 5.01 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 100 V | 100 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | |
|
SBRS81100NT3GDIODE SCHOTTKY 100V 1A 1202-SMB2 |
3,048 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 2A | -65°C ~ 175°C | 750 mV @ 1 A |
|
S1FLK-M-18DIODE GEN PURP 800V 1A DO219AB |
2,375 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 1.8 µs | 10 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
ER1002_T0_00001SUPERFAST RECOVERY RECTIFIERS |
2,732 | 0.98 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 62pF @ 4V, 1MHz | 35 ns | 1 µA @ 200 V | 200 V | 10A | -55°C ~ 150°C | 950 mV @ 10 A | ||
|
|
BD840YS_S2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
2,533 | 0.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 40 V | 40 V | 8A | -55°C ~ 150°C | 700 mV @ 8 A | ||
|
|
VS-20TQ045S-M3DIODE SCHOTTKY 45V 20A TO263AB |
2,471 | 1.72 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1400pF @ 5V, 1MHz | - | 2.7 mA @ 45 V | 45 V | 20A | -55°C ~ 150°C | 570 mV @ 20 A | |
|
VS-E5PH6012L-N3DIODE FREDS 1200V 60A TO-247 |
2,757 | 5.17 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 130 ns | 50 µA @ 1200 V | 1200 V | 60A | -55°C ~ 175°C | 2.3 V @ 60 A |
|
|
NRVUS160VT3GDIODE GEN PURP 600V 2A SMB |
2,371 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 2A | -65°C ~ 175°C | 1.25 V @ 1 A |
|
|
S1FLM-M-18DIODE GEN PURP 1KV 1A DO219AB |
3,585 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 4V, 1MHz | 1.8 µs | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
QR806_T0_00001PLANAR STRUCTURED SUPERFAST RECO |
2,813 | 1.02 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 70 ns | 3 µA @ 600 V | 600 V | 8A | -55°C ~ 175°C | 1.65 V @ 8 A | ||
|
|
BD890YS_L2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,307 | 0.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 90 V | 90 V | 8A | -65°C ~ 175°C | 800 mV @ 8 A | ||
|
STTH8R04DDIODE GEN PURP 400V 8A TO220AC |
2,095 | 1.76 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 400 V | 400 V | 8A | -40°C ~ 175°C | 1.5 V @ 8 A | |
|
STTH75S12WDIODE GEN PURP 1.2KV 75A DO247 |
2,557 | 5.26 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 50 µA @ 1200 V | 1200 V | 75A | -40°C ~ 175°C | 3.2 V @ 75 A | |
~~2-Bottom-View.jpg)
|
VSS8D5M12HM3/I5A, 120V, SLIMSMAW TRENCH SKY |
2,498 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 460pF @ 4V, 1MHz | - | 350 µA @ 120 V | 100 V | 2.2A | -40°C ~ 175°C | 620 mV @ 2.5 A |
|
BAS70WT-TPDIODE SCHOTTKY 70V 70MA SOT323 |
2,818 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | 5 ns | 100 nA @ 50 V | 70 V | 70mA (DC) | -55°C ~ 125°C | 1 V @ 15 mA | |
|
|
MBR8200F_T0_00001SCHOTTKY BARRIER RECTIFIERS |
2,599 | 1.06 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 200 V | 200 V | 8A | -65°C ~ 175°C | 900 mV @ 8 A | ||
|
|
BD8150YS_L2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
2,539 | 0.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 150 V | 150 V | 8A | -65°C ~ 175°C | 900 mV @ 8 A | ||
|
|
STTH15RQ06DYDIODE GEN PURP 600V 15A TO220AC |
2,898 | 1.76 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 20 µA @ 600 V | 600 V | 15A | -40°C ~ 175°C | 2.95 V @ 15 A |
|
DSEP30-06BRDIODE GP 600V 30A ISOPLUS247 |
2,872 | 5.37 |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 250 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.51 V @ 30 A |
