Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QR406F_T0_00001PLANAR STRUCTURED SUPERFAST RECO |
2,260 | 0.70 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 3 µA @ 600 V | 600 V | 4A | -55°C ~ 175°C | 1.45 V @ 4 A | ||
|
|
PG5408_R2_00001GLASS PASSIVATED JUNCTION PLASTI |
2,014 | 0.49 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1.2 V @ 3 A | ||
|
|
UF801_T0_00001ULTRA FAST RECOVERY RECTIFIERS |
3,288 | 0.78 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 1 µA @ 100 V | 100 V | 8A | -55°C ~ 150°C | 1 V @ 8 A | ||
|
STTH61W04SWDIODE GEN PURP 400V 60A TO247 |
2,398 | 3.36 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 20 µA @ 400 V | 400 V | 60A | 175°C (Max) | 1.35 V @ 60 A | |
|
|
MBR20H150YD_L2_00001ULTRA LOW IR SCHOTTKY BARRIER RE |
2,127 | 0.89 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 350pF @ 4V, 1MHz | - | 800 nA @ 150 V | 150 V | 20A | -55°C ~ 175°C | 900 mV @ 20 A | ||
|
FES16BT-E3/45DIODE GEN PURP 100V 16A TO220AC |
3,440 | 1.36 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 100 V | 100 V | 16A | -65°C ~ 150°C | 975 mV @ 16 A | |
|
|
SB640F_T0_00001ISOLATION SCHOTTKY BARRIER RECTI |
2,818 | 0.70 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 40 V | 40 V | 6A | -55°C ~ 150°C | 550 mV @ 6 A | ||
|
|
MBR3150_R2_00001SCHOTTKY BARRIER RECTIFIERS |
3,773 | 0.49 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 150 V | 150 V | 3A | -65°C ~ 150°C | 900 mV @ 3 A | ||
|
|
SB660F_T0_00001ISOLATION SCHOTTKY BARRIER RECTI |
2,408 | 0.79 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 60 V | 60 V | 6A | -55°C ~ 150°C | 700 mV @ 6 A | ||
|
APT60D120BGDIODE GEN PURP 1.2KV 60A TO247 |
2,723 | 3.37 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 250 µA @ 1200 V | 1200 V | 60A | -55°C ~ 175°C | 2.5 V @ 60 A | |
|
|
BYV10ED-600PJDIODE GEN PURP 600V 10A DPAK |
2,389 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 600 V | 600 V | 10A | 175°C (Max) | 2 V @ 10 A | |
|
VS-15EWH06FN-M3DIODE GEN PURP 600V 15A DPAK |
3,775 | 1.36 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 36 ns | 50 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 2.1 V @ 15 A |
|
|
SB1045F_T0_00001SCHOTTKY BARRIER RECTIFIER |
3,710 | 0.71 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 550 mV @ 10 A | ||
|
ZHCS400TADIODE SCHOTTKY 40V 400MA SOD323 |
3,224 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 20pF @ 25V, 1MHz | - | 40 µA @ 30 V | 40 V | 400mA (DC) | - | 500 mV @ 400 mA | |
|

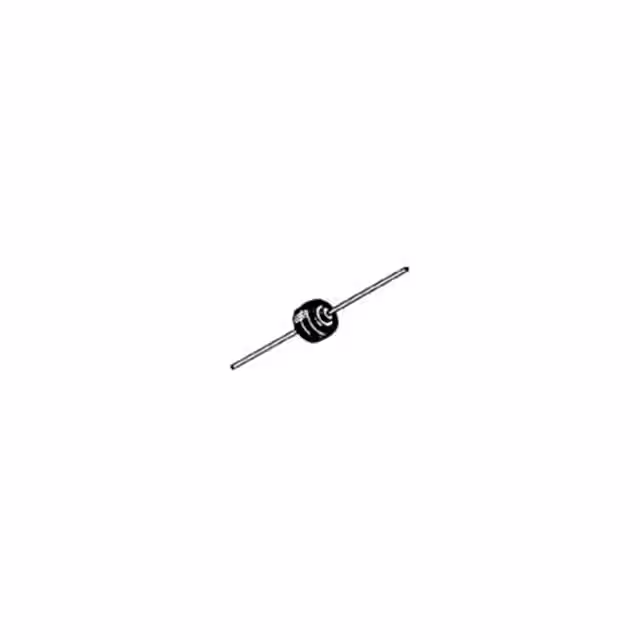

MR756RECT 600 V 6 AMPS |
2,989 | 0.80 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | - | - | - | 25 µA @ 600 V | 600 V | 6A | -65°C ~ 175°C | 900 mV @ 6 A | |
|
VS-EPU6006LHN3DIODE GEN PURP 600V 60A TO247AD |
3,275 | 3.41 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 110 ns | 30 µA @ 600 V | 600 V | 60A | -55°C ~ 175°C | 1.5 V @ 60 A |
|
|
BD5200S_L2_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,408 | 0.91 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 200 V | 200 V | 5A | -65°C ~ 175°C | 900 mV @ 5 A | ||
|
|
VS-15EWL06FN-M3DIODE GEN PURP 600V 15A DPAK |
3,216 | 1.36 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 220 ns | 10 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 1.05 V @ 15 A |
|
|
MBR8100_T0_00001SCHOTTKY BARRIER RECTIFIERS |
3,853 | 0.71 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 50 µA @ 100 V | 100 V | 8A | -65°C ~ 175°C | 800 mV @ 8 A | ||
|
|
SK32_R1_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,618 | 0.48 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 20 V | 20 V | 3A | -55°C ~ 125°C | 500 mV @ 3 A |
