Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURSD860A-TP8A/600V FRED RECTIFIERS,DPAK PAC |
2,828 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 35pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 8A | -55°C ~ 150°C | 1.6 V @ 8 A | |
|
SB840F_T0_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,454 | 0.67 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 40 V | 40 V | 8A | -55°C ~ 150°C | 550 mV @ 8 A | ||
~~2-Bottom-View.jpg)
|
VSS8D2M6HM3/I2A, 60V, SLIMSMAW TRENCH SKY REC |
2,790 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 430pF @ 4V, 1MHz | - | 200 µA @ 60 V | 60 V | 2A | -40°C ~ 175°C | 480 mV @ 1 A |
|
BAS101,215DIODE GP 300V 200MA TO236AB |
2,078 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 50 ns | 150 nA @ 250 V | 300 V | 200mA (DC) | 150°C (Max) | 1.1 V @ 100 mA | |
|
UF1001_T0_00001ULTRA FAST RECOVERY RECTIFIERS |
3,585 | 0.78 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 80pF @ 4V, 1MHz | 50 ns | 1 µA @ 100 V | 100 V | 10A | -55°C ~ 150°C | 1 V @ 10 A | ||
|
STTH30R04GDIODE GEN PURP 400V 30A D2PAK |
3,557 | 3.11 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 100 ns | 15 µA @ 400 V | 400 V | 30A | -40°C ~ 175°C | 1.45 V @ 30 A | |
|
|
PU6BCH25NS, 6A, 100V, ULTRA FAST RECOV |
3,030 | 0.87 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 110pF @ 4V, 1MHz | 25 ns | 2 µA @ 100 V | 100 V | 6A (DC) | -55°C ~ 175°C | 940 mV @ 6 A | |
|
RUR1550RECTIFIER DIODE, 15A, 500V |
2,477 | 0.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 60 ns | 10 µA @ 500 V | 500 V | 15A | -55°C ~ 175°C | 1.5 V @ 15 A | |
|
|
VSS8D5M12-M3/I5A, 120V, SLIMSMAW TRENCH SKY |
3,298 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 460pF @ 4V, 1MHz | - | 350 µA @ 120 V | 100 V | 2.2A | -40°C ~ 175°C | 620 mV @ 2.5 A |
|
NSVBAS21SLT1GDIODE GEN PURP 250V 225MA SOT23 |
3,057 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 µA @ 200 V | 250 V | 225mA (DC) | -55°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
SB820_T0_00001D PAK SURFACE MOUNT SCHOTTKY BAR |
3,393 | 0.78 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 200 µA @ 20 V | 20 V | 8A | -55°C ~ 125°C | 550 mV @ 8 A | ||
|
STBR3012WYDIODE GEN PURP 1.2KV 30A DO247 |
3,794 | 3.11 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 2 µA @ 1200 V | 1200 V | 30A | -40°C ~ 175°C | 1.3 V @ 30 A |
|
|
PU6DCH25NS, 6A, 200V, ULTRA FAST RECOV |
2,789 | 0.87 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 110pF @ 4V, 1MHz | 25 ns | 2 µA @ 200 V | 200 V | 6A (DC) | -55°C ~ 175°C | 940 mV @ 6 A | |
|
|
RHRP4120CCRECTIFIER DIODE, 4A, 1200V |
2,564 | 0.68 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
STPS2H100AFYAUTOMOTIVE 100 V, 2 A SMA SMB PO |
6,000 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 µA @ 100 V | 100 V | 2A | -40°C ~ 175°C | 790 mV @ 2 A |
|
RB160LAM-40TRDIODE SCHOTTKY 40V 1A PMDTM |
2,454 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 1A | 150°C (Max) | 550 mV @ 1 A | |
|
|
UF1004_T0_00001ULTRA FAST RECOVERY RECTIFIERS |
2,576 | 0.78 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 80pF @ 4V, 1MHz | 50 ns | 1 µA @ 400 V | 400 V | 10A | -55°C ~ 150°C | 1.3 V @ 10 A | ||
|
STPSC606DDIODE SCHOTTKY 600V 6A TO220AC |
3,518 | 3.17 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 375pF @ 0V, 1MHz | 0 ns | 75 µA @ 600 V | 600 V | 6A | -40°C ~ 175°C | 1.7 V @ 6 A | |
|

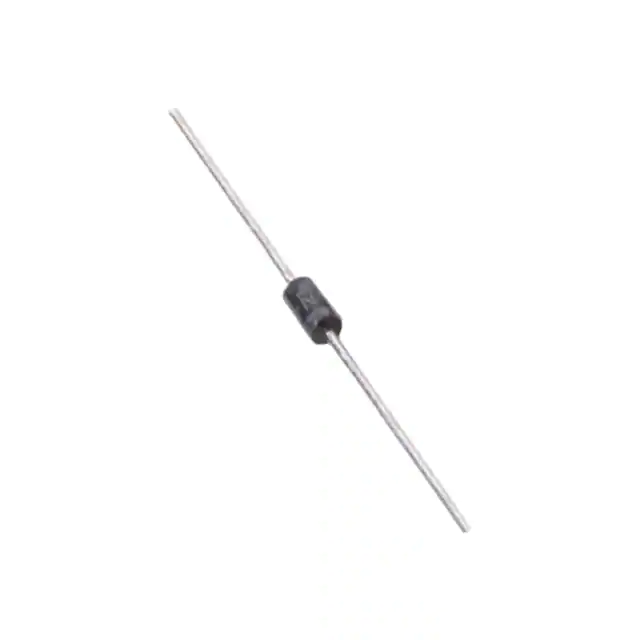

863-1N4006FFG1N4006 DIODE 1A / 800V RECTIFIER |
2,273 | 0.34 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 10 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | ||
|
|
QRT812D_R2_00001PLANAR STRUCTURED SUPERFAST RECO |
3,862 | 1.18 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 45 ns | 3 µA @ 1200 V | 1200 V | 8A | -55°C ~ 175°C | 3.2 V @ 8 A |
