| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDBU0340-HFDIODE SCHOTTKY 40V 350MA 0603 |
46,200 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | 6.4 ns | 5 µA @ 30 V | 40 V | 350mA | 125°C (Max) | 600 mV @ 200 mA | |
|
CDSW3004-HFDIODE GEN PURP 300V 225MA SOD123 |
2,233 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 240 V | 300 V | 225mA | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
|
CDBW0520L-GDIODE SCHOTTKY 20V 500MA SOD123 |
34,973 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 250 µA @ 20 V | 20 V | 500mA | 125°C (Max) | 385 mV @ 500 mA | |
|
CDBU00340-HFDIODE SCHOTTKY 40V 30MA 0603 |
256,221 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 1.5pF @ 1V, 1MHz | - | 1 µA @ 40 V | 40 V | 30mA | 125°C (Max) | 370 mV @ 1 mA | |
|
SS220-HFDIODE SCHOTTKY 200V 2A DO214AC S |
63,928 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 300 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 950 mV @ 2 A | |
|
CGRM4005-GDIODE GEN PURP 600V 1A MINISMA |
188,910 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Not For New Designs | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|

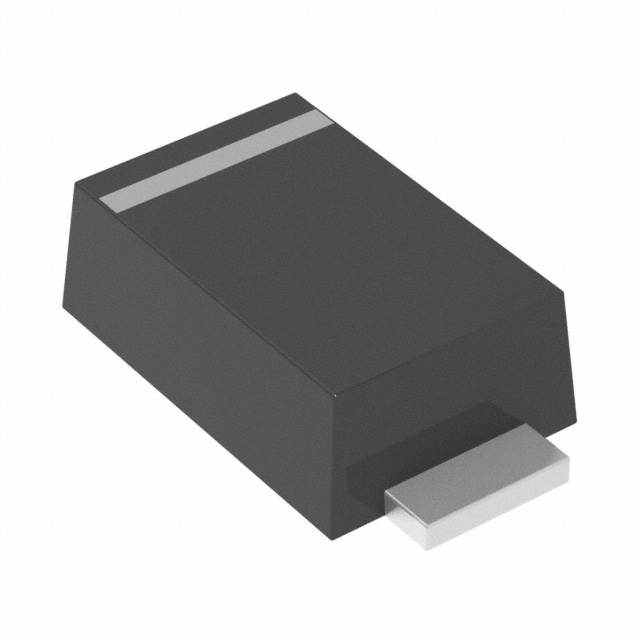

CGRTS4001-HFDIODE GEN PURP 50V 1A TS/SOD-123 |
16,508 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | - | 10 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
CGRTS4007-HFDIODE GEN PURP 1000V 1A TS/SOD-1 |
24,124 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | - | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
SS24-HFDIODE SCHOTTKY 40V 2A DO214AC SM |
37,687 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 220pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 2A | -55°C ~ 150°C | 550 mV @ 2 A | |
|
|
SS26-HFDIODE SCHOTTKY 60V 2A DO214AC SM |
25,000 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A | |
|
|
SS210-HFDIODE SCHOTTKY 100V 2A DO214AC S |
87,750 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 300 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 850 mV @ 2 A | |
|
|
CDBU0520-HFDIODE SCHOTTKY 20V 500MA 0603 |
49,247 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 100pF @ 0V, 1MHz | - | 100 µA @ 20 V | 20 V | 500mA | 125°C (Max) | 470 mV @ 500 mA | |
|
|
SS34-HFDIODE SCHOTTKY 40V 3A DO214AC SM |
40,529 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 450pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 125°C | 550 mV @ 3 A | |
|
CDBT0230-HFDIODE SCHOTTKY 30V 200MA SOT23 |
18,858 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 40pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 200mA | 125°C (Max) | 500 mV @ 200 mA | |
|
|
CDBU0130DIODE SCHOTTKY 30V 100MA 0603 |
31,271 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 9pF @ 10V, 1MHz | - | 30 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 440 mV @ 100 mA | |
|
|
CDBA260-HFDIODE SCHOTTKY 60V 2A DO214AC |
14,300 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 2A | -50°C ~ 150°C | 700 mV @ 2 A | |
|
|
CDBA240-GDIODE SCHOTTKY 40V 2A DO214AC |
32,492 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 2A | 125°C (Max) | 500 mV @ 2 A | |
|
ES1J-HFRECTIFIER SUPER FAST RECOVERY 60 |
1,356 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
CGRKM4001-HFDIODE GEN PURP 50V 1A SOD123F |
98,439 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CDBU0130RDIODE SCHOTTKY 30V 100MA 0603 |
110,570 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 500 nA @ 10 V | 30 V | 100mA | 125°C (Max) | 450 mV @ 10 mA |
