| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDBU40DIODE SCHOTTKY 40V 200MA 0603 |
30,449 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | 125°C (Max) | 1 V @ 40 mA | |
|
CURB207-GDIODE GEN PURP 1KV 2A DO214AA |
46,701 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 2A | 150°C (Max) | 1.7 V @ 2 A | |
|
CDSF4148DIODE GEN PURP 75V 150MA 1005 |
10,573 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 150mA | 125°C (Max) | 1 V @ 50 mA | |
|
ACURN103-HFDIODE GEN PURP 600V 1A 1206 |
4,500 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 50 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A |
|
US1M-HFRECTIFIER ULTRA FAST RECOVERY 10 |
40,407 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.65 V @ 1 A | ||
|
SB560ET-GDIODE SCHOTTKY 60V 5A DO201AD |
5,683 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 500pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 5A | -65°C ~ 150°C | 700 mV @ 5 A | |
|
|
ACURN105-HFDIODE GEN PURP 1KV 1A 1206 |
39,948 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A |
|
|
CURN105-HFDIODE GEN PURP 1KV 1A 1206 |
15,111 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | - | 1000 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A | |
|
1N4007-GDIODE GEN PURP 1KV 1A DO41 |
147,138 | 0.21 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
S1K-HFRECTIFIER GEN PURP 800V 1A SMA |
10,355 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
ACDBA140-HFDIODE SCHOTTKY 40V 1A DO214AC |
9,986 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 500 mV @ 1 A |
|
|
CGRA4004-GDIODE GEN PURP 400V 1A DO214AC |
618,699 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CGRA4007-GDIODE GEN PURP 1KV 1A DO214AC |
554,712 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CDSU101ADIODE GEN PURP 80V 100MA 0603 |
1,202,213 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 50 nA @ 75 V | 80 V | 100mA | 125°C (Max) | 1 V @ 100 mA | |
|
CDSU400BDIODE GEN PURP 80V 100MA 0603 |
824,670 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1 V @ 100 mA | |
|
CDBQC0130L-HFDIODE SCHOTTKY 30V 100MA 0402 |
310,984 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 20pF @ 1V, 1MHz | - | 10 µA @ 10 V | 30 V | 100mA | 125°C (Max) | 300 mV @ 10 mA | |
|
CDSP400-GDIODE GEN PURP 80V 100MA SOD723 |
1,070,528 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0.5V, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|

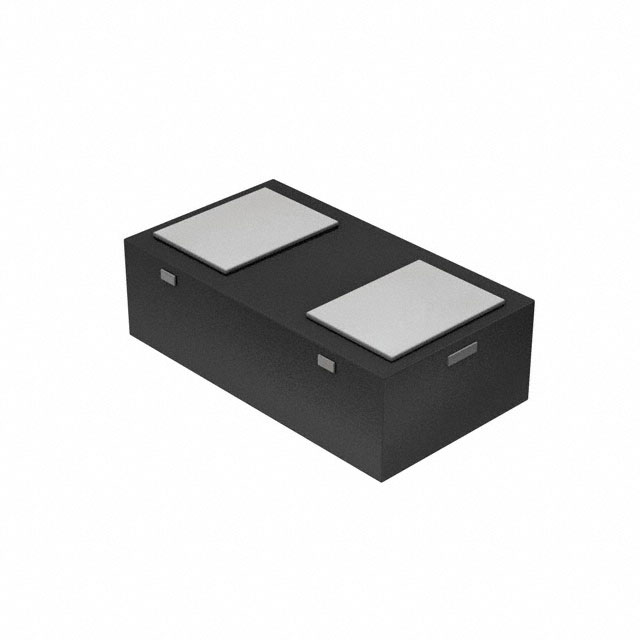

CDBQR0130RDIODE SCHOTTKY 30V 100MA 0402 |
1,382,644 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 500 nA @ 10 V | 30 V | 100mA | 125°C (Max) | 450 mV @ 10 mA | |
|
|
CDSU4148DIODE GEN PURP 75V 150MA 0603 |
1,066,148 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 150mA | -40°C ~ 125°C | 1 V @ 50 mA | |
|

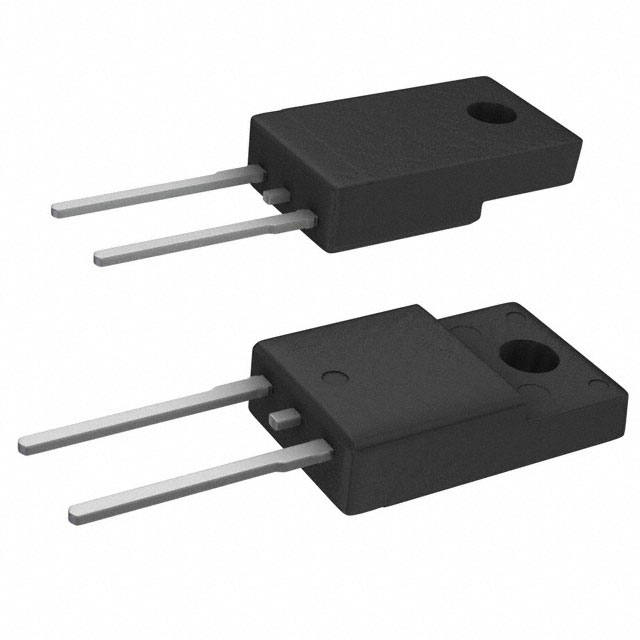

CDBJFSC101200-GDIODE SIC 10A 1200V TO-220F |
499 | 12.75 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 780pF @ 0V, 1MHz | 0 ns | 100 µA @ 1200 V | 1200 V | 10A (DC) | -55°C ~ 175°C | 1.7 V @ 10 A |
