| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CN648 BKDIODE GP 500V 400MA DO-41SP |
3,937 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 500 V | 500 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|

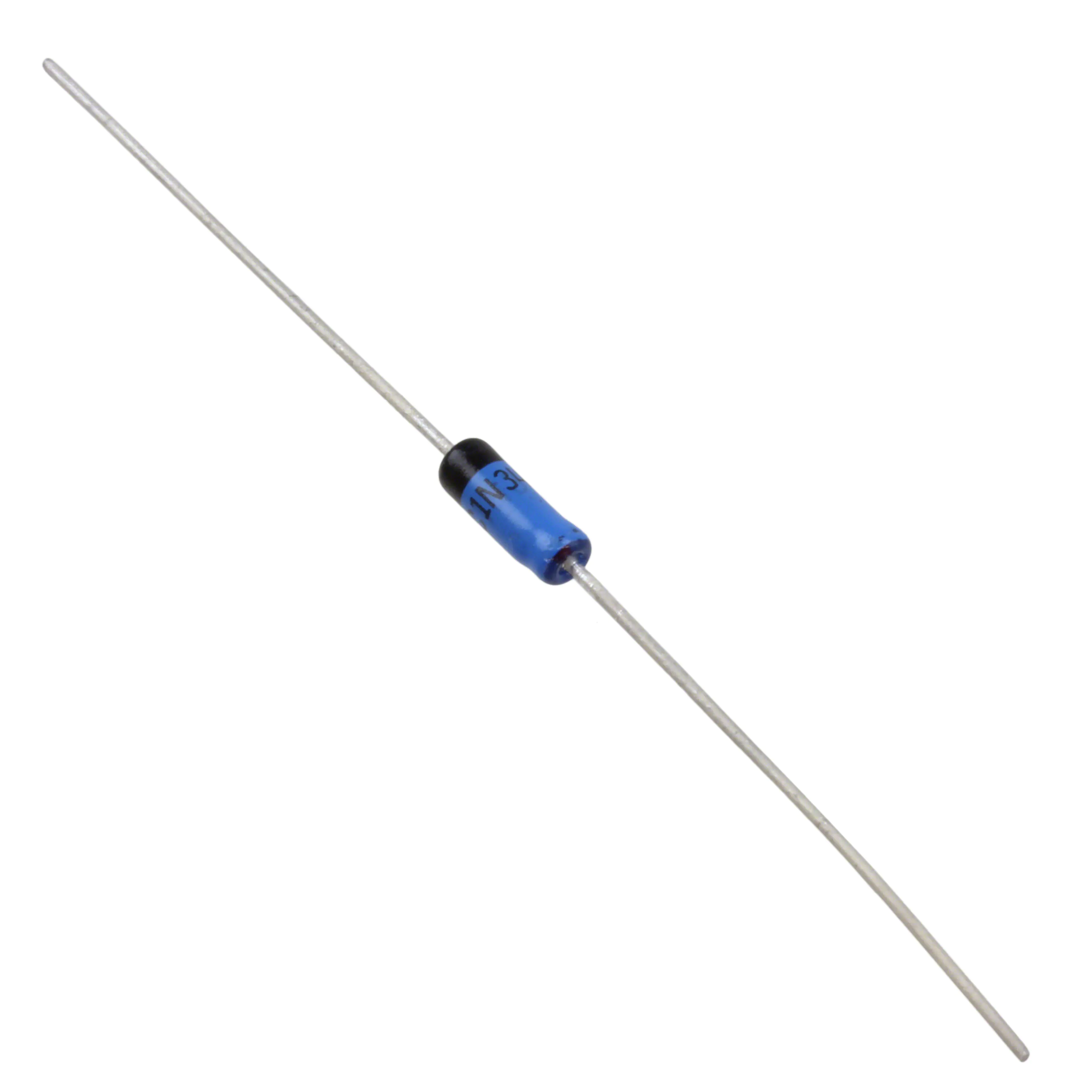

1N34A BKDIODE GEN PURP 75V 50MA DO7 |
2,691 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 500 µA @ 50 V | 75 V | 50mA | -55°C ~ 75°C | 1 V @ 5 mA | |
|
1N4001 TRDIODE GEN PURPOSE DO41 |
2,096 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N4002 TRDIODE GEN PURPOSE DO41 |
3,669 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
1N4004SP TR-RPCUDIODE GEN PURPOSE DO41 |
2,989 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
1N4005 TRDIODE GEN PURPOSE DO41 |
3,089 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N4864 BKDIODE GEN PURP 80V 200MA DO41 |
3,617 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | 9 ns | 100 nA @ 80 V | 80 V | 200mA | -65°C ~ 200°C | 1.1 V @ 100 mA | |
|
|
UF4001 BKDIODE GEN PURP 50V 1A DO41 |
2,469 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4002 BKDIODE GEN PURP 100V 1A DO41 |
3,978 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 100 V | 100 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4003 BKDIODE GEN PURP 200V 1A DO41 |
3,581 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 200 V | 200 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4004 BKDIODE GEN PURP 400V 1A DO41 |
2,864 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4005 BKDIODE GEN PURP 600V 1A DO41 |
2,766 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4006 BKDIODE GEN PURP 800V 1A DO41 |
3,499 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 800 V | 800 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4007 BKDIODE GEN PURP 1000V 1A DO41 |
2,103 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 1000 V | 1000 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
CN5179 BK TIN/LEADDIODE MULTI CHIP 20V DO-35 |
2,827 | 0.00 |
RFQ |
Box | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 10 µA @ 20 V | 20 V | - | -65°C ~ 150°C | 3.7 V @ 100 mA | ||
|
|
1N4446 BKDIODE GEN PURP 100V 150MA DO35 |
3,999 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 1 V @ 20 mA | |
|
|
1N4448 BKDIODE GEN PURP 100V 150MA DO35 |
2,737 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 720 mV @ 5 mA | |
|
|
1N4449 BKDIODE GEN PURP 100V 150MA DO35 |
3,747 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 2pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 730 mV @ 5 mA | |
|
|
1N276 BKDIODE GEN PURP 50V 40MA DO7 |
2,052 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | 300 ns | 100 µA @ 50 V | 50 V | 40mA (DC) | -65°C ~ 100°C | 1 V @ 40 mA | |
|
|
1N485B TRDIODE GP 200V 200MA DO204AL |
2,894 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 25 nA @ 200 V | 200 V | 200mA | -65°C ~ 200°C | 1 V @ 100 mA |
