| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMSH1-60M BK PBFREEDIODE SCHOTTKY 60V 1A SMA |
2,486 | 0.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 43pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 1A | -65°C ~ 150°C | 700 mV @ 1 A | |
|
CPD76X-1N5817-CT20DIODE SCHOTTKY 20V 1A DIE 1=20 |
2,154 | 150.00 |
RFQ |
Datasheet |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 20 V | 20 V | 1A | -65°C ~ 150°C | 450 mV @ 1 A | |
|
CMHD4150 TRDIODE GEN PURP 50V 250MA SOD123 |
3,585 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 50 V | 250mA | -65°C ~ 150°C | 1 V @ 200 mA | |
|
CMPD4150 TRDIODE GEN PURP 50V 250MA SOT23 |
2,554 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 50 V | 250mA | -65°C ~ 150°C | 1 V @ 200 mA | |
|
CMSH2-40L TR13DIODE SCHOTTKY 40V 2A SMB |
2,374 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 150pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 150°C | 400 mV @ 2 A | |
|
UF4001 TRDIODE GEN PURP 50V 1A DO41 |
3,575 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | 50 ns | 10 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 1 V @ 1 A | |
|
|
UF4006 TRDIODE GEN PURP 800V 1A DO41 |
3,459 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 800 V | 1A | -65°C ~ 150°C | 1.7 V @ 1 A | |
|

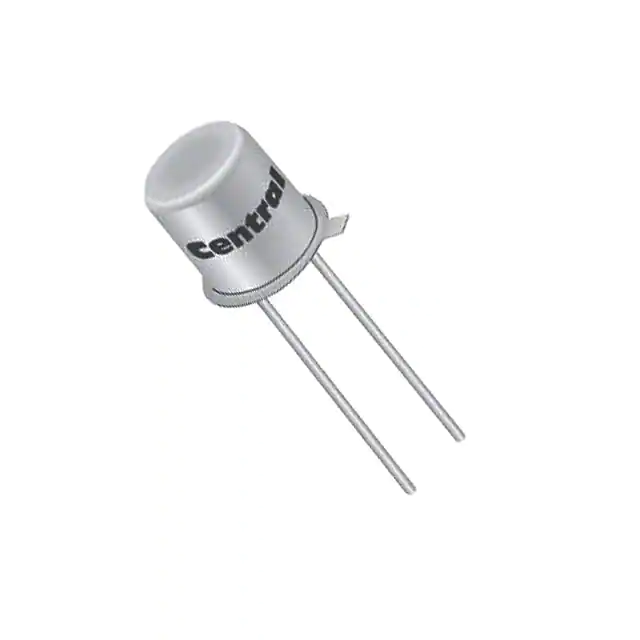

BAV45DIODE GEN PURP 20V 50MA TO18 |
3,592 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 1.3pF @ 0V, 1MHz | 600 ns | 5 pA @ 5 V | 20 V | 50mA | -65°C ~ 125°C | 1 V @ 10 mA | |
|
|
1N4004 TRDIODE GEN PURP 400V 1A DO41 |
3,033 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
1N4448 TRDIODE GEN PURP 100V 150MA DO35 |
3,241 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 25 nA @ 20 V | 100 V | 150mA | -65°C ~ 200°C | 720 mV @ 5 mA | |
|
CFSH01-30 TRDIODE SCHOTTKY 30V 100MA SOD882 |
3,143 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 0V, 1MHz | - | 300 nA @ 10 V | 30 V | 100mA | -65°C ~ 125°C | 460 mV @ 10 mA | |
|
CPD76X-1N5817-CTDIODE SCHOTTKY 20V 1A DIE 1=400 |
2,537 | 0.00 |
RFQ |
Tray | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 20 V | 20 V | 1A | -65°C ~ 150°C | 450 mV @ 1 A | ||
|
1N486B TRDIODE GEN PURP 250V 200MA DO41 |
2,091 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 50 nA @ 250 V | 250 V | 200mA | -65°C ~ 200°C | 1 V @ 100 mA | |
|
|
CN649 BKDIODE GP 600V 400MA DO-41SP |
2,876 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 600 V | 600 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN649 TRDIODE GP 600V 400MA DO-41SP |
3,192 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 600 V | 600 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN646 TRDIODE GP 300V 400MA DO-41SP |
2,095 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 300 V | 300 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN647 TRDIODE GP 400V 400MA DO-41SP |
3,928 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 400 V | 400 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN648 TRDIODE GP 500V 400MA DO-41SP |
2,169 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 500 V | 500 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN646 BKDIODE GP 300V 400MA DO-41SP |
2,560 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 300 V | 300 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA | |
|
|
CN647 BKDIODE GP 400V 400MA DO-41SP |
2,822 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 11pF @ 12V, 1MHz | - | 200 nA @ 400 V | 400 V | 400mA | -65°C ~ 150°C | 1 V @ 400 mA |
