| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBRT5A50SA-13DIODE SBR 50V 5A SMA |
2,087 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchSBR | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Super Barrier | Active | Surface Mount | - | - | 150 µA @ 50 V | 50 V | 5A | -55°C ~ 150°C | 530 mV @ 5 A |
|
B540C-13-FDIODE SCHOTTKY 40V 5A SMC |
2,582 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 5A | -55°C ~ 150°C | 550 mV @ 5 A | |
|
SDM160S1FQ-7DIODE SCHOTTKY 60V 1A SOD123F |
2,646 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 48pF @ 10V, 1MHz | - | 60 µA @ 60 V | 60 V | 1A | -55°C ~ 175°C | 530 mV @ 1 A |
|
|
B330A-13-FDIODE SCHOTTKY 30V 3A SMA |
2,800 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 500 µA @ 30 V | 30 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A |
|
BAT760-7DIODE SCHOTTKY 30V 1A SOD323 |
2,727 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 25pF @ 5V, 1MHz | - | 50 µA @ 15 V | 30 V | 1A | -65°C ~ 150°C | 550 mV @ 1 A | |
|
DFLS1150-7DIODE SCHOTTKY 150V POWERDI123 |
3,985 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 28pF @ 5V, 1MHz | - | 2 µA @ 150 V | 150 V | 1A | -55°C ~ 175°C | 820 mV @ 1 A | |
|
ZHCS500TADIODE SCHOTTKY 40V 500MA SOT23-3 |
2,227 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 20pF @ 25V, 1MHz | 10 ns | 40 µA @ 30 V | 40 V | 500mA (DC) | 125°C (Max) | 550 mV @ 500 mA | |
|
|
ES2B-13-FDIODE GEN PURP 100V 2A SMB |
3,207 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | 25 ns | 5 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 920 mV @ 2 A | |
|
|
S5BC-13-FDIODE GEN PURP 100V 5A SMC |
2,886 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | - | 10 µA @ 100 V | 100 V | 5A | -65°C ~ 150°C | 1.15 V @ 5 A | |
|
|
ZHCS506TADIODE SCHOTTKY 60V 500MA SOT23-3 |
2,927 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 20pF @ 25V, 1MHz | 10 ns | 40 µA @ 45 V | 60 V | 500mA (DC) | 125°C (Max) | 630 mV @ 500 mA | |
|
|
B2100-13-FDIODE SCHOTTKY 100V 2A SMB |
3,978 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 75pF @ 4V, 1MHz | - | 7 µA @ 100 V | 100 V | 2A | -65°C ~ 150°C | 790 mV @ 2 A | |
|
|
B320A-13-FDIODE SCHOTTKY 20V 3A SMA |
3,467 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 500 µA @ 20 V | 20 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A |
|
|
DFLS140L-7DIODE SCHOTTKY 40V 1A POWERDI123 |
3,519 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 10V, 1MHz | - | 100 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 550 mV @ 1 A | |
|

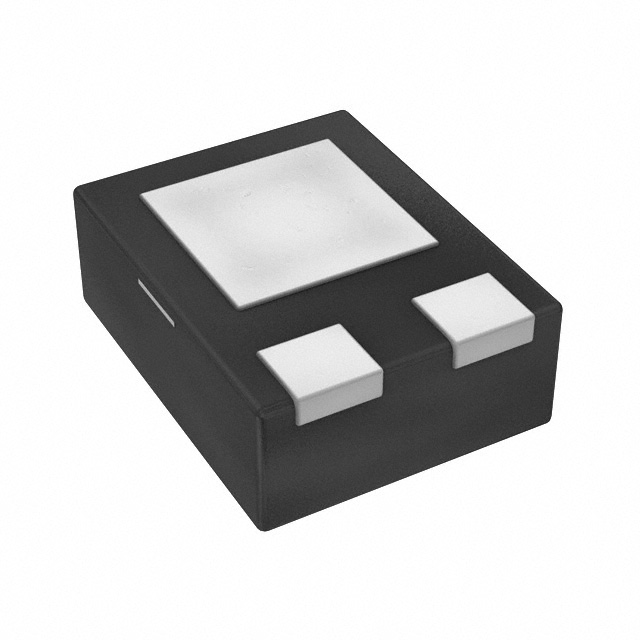

SBR2U100LP-7DIODE SBR 100V 1.5A X1-DFN1411-3 |
3,261 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Super Barrier | Active | Surface Mount | - | - | 50 µA @ 100 V | 100 V | 1.5A | -55°C ~ 150°C | 850 mV @ 1.5 A |
|
|
DFLS1100-7DIODE SCHOTTKY 100V POWERDI123 |
3,612 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 36pF @ 5V, 1MHz | - | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 770 mV @ 1 A |
|
|
B350B-13-FDIODE SCHOTTKY 50V 3A SMB |
2,559 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 500 µA @ 50 V | 50 V | 3A | -55°C ~ 150°C | 700 mV @ 3 A |
|
ZHCS350TADIODE SCHOTTKY 40V 350MA SOD523 |
3,960 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 6pF @ 25V, 1MHz | 1.6 ns | 12 µA @ 30 V | 40 V | 350mA (DC) | 125°C (Max) | 810 mV @ 350 mA | |
|
|
B530C-13-FDIODE SCHOTTKY 30V 5A SMC |
2,719 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 4V, 1MHz | - | 500 µA @ 30 V | 30 V | 5A | -55°C ~ 150°C | 550 mV @ 5 A | |
|
PD3S140-7DIODE SCHOTTKY 40V 1A POWERDI323 |
3,238 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 32pF @ 10V, 1MHz | - | 50 µA @ 40 V | 40 V | 1A | -65°C ~ 150°C | 550 mV @ 1 A | |
|
|
BAT1000-7-FDIODE SCHOTTKY 40V 1A SOT23-3 |
2,452 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 175pF @ 0V, 1MHz | - | 100 µA @ 30 V | 40 V | 1A | -40°C ~ 125°C | 500 mV @ 1 A |
