| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR10150ULPS-TP10A,150V,SCHOTTKY,TO-277B PACKAG |
3,516 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 20 µA @ 150 V | 150 V | 10A | -65°C ~ 150°C | 840 mV @ 10 A | |
|
S3JB-TPDIODE GEN PURP 600V 3A DO214AA |
2,807 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 3A | - | 1.15 V @ 3 A | |
|
|
ER3JB-TPDIODE GEN PURP 600V 3A DO214AA |
2,319 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
|
MBR12100LPS-TPDIODE SCHOTTKY 100V 12A TO277B |
1,139 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 250 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 800 mV @ 12 A | |
|
UG3DAFL-TPDIODE GEN PURP 200V 3A DO221AC |
20,000 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 30 ns | 2 µA @ 200 V | 200 V | 3A | -55°C ~ 175°C | 930 mV @ 3 A | |
|
SIC05120B-BP1200V,5A,SIC SBD,TO-220AC PACKAG |
4,903 | 5.95 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 353pF @ 0V, 1MHz | - | 3 µA @ 1200 V | 1200 V | 5A | -55°C ~ 175°C | 1.7 V @ 5 A | |
|
B5819W-TPDIODE SCHOTTKY 40V 1A SOD123 |
2,150 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 120pF @ 4V, 1MHz | - | 1 mA @ 40 V | 40 V | 1A | -65°C ~ 125°C | 600 mV @ 1 A | |
|
RB751S-40-TPDIODE SCHOTTKY 30V 30MA SOD523 |
6,165 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 500 nA @ 30 V | 30 V | 30mA | 125°C (Max) | 370 mV @ 1 mA | |
|
FS1ME-TPDIODE GEN PURP 1KV 1A SMAE |
5,773 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A | |
|
SS23-LTPDIODE SCHOTTKY 2A 30V SMA |
5,253 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 4V, 1MHz | - | 500 µA @ 30 V | 30 V | 2A | -55°C ~ 125°C | 550 mV @ 2 A | |
|
|
ER2D-LTPDIODE GEN PURP 200V 2A DO214AA |
1,416 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 2A | -65°C ~ 175°C | 950 mV @ 2 A | |
|
RB751V-40-TPDIODE SCHOTTKY 30V 30MA SOD323 |
1,384 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 1V, 1MHz | - | 500 nA @ 30 V | 30 V | 30mA | 125°C (Max) | 370 mV @ 1 mA | |
|
|
ER2G-LTPDIODE GEN PURP 400V 2A DO214AA |
1,145 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 400 V | 400 V | 2A | -65°C ~ 175°C | 1.25 V @ 2 A | |
|
UF4007GP-TPDIODE GEN PURP 1KV 1A DO41 |
1,062 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
.jpg)
|
SK103-TPDIODE SCHOTTKY 30V 10A DO214AB |
7,580 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 500pF @ 4V, 1MHz | - | 1 mA @ 30 V | 30 V | 10A | -55°C ~ 125°C | 650 mV @ 10 A | |
|
|
ER1J-LTPDIODE GEN PURP 600V 1A DO214AA |
3,495 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.7 V @ 1 A | |
|
SMD1150PL-TPDIODE SCHOTTKY 150V 1A SOD123FL |
3,326 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 500 µA @ 150 V | 150 V | 1A | -55°C ~ 125°C | 850 mV @ 1 A | |
|

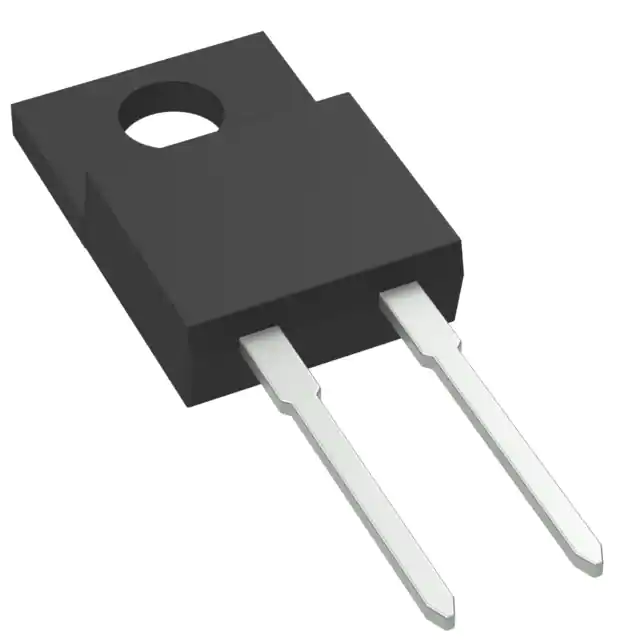

MURS820FA-BP8A/200V FRED RECTIFIERS,ITO-220A |
942 | 0.91 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 65pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 8A | -55°C ~ 150°C | 1 V @ 8 A | |
|
|
MURS860A-BP8A/600V FRED RECTIFIERS,TO-220AC |
933 | 0.91 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 8A | -55°C ~ 150°C | 1.6 V @ 8 A | |
|
|
MURS820A-BP8A/200V FRED RECTIFIERS,TO-220AC |
897 | 0.95 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 65pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 8A | -55°C ~ 150°C | 1 V @ 8 A |
