Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R7001003XXUADIODE GEN PURP 1KV 300A DO200 |
2,736 | 116.84 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 1000 V | 1000 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
VS-1N3673ADIODE GEN PURP 1KV 12A DO203AA |
2,777 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 600 µA @ 1000 V | 1000 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A | |
|
|
R7011003XXUADIODE GEN PURP 1KV 300A DO200 |
3,674 | 116.84 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 9 µs | 50 mA @ 1000 V | 1000 V | 300A | -65°C ~ 200°C | 2.15 V @ 1500 A | |
|
|
12F80B BN R YDIODE GEN PURP 800V 12A DO203AA |
2,042 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 800 V | 12A | -65°C ~ 150°C | 1.26 V @ 38 A | ||
|
|
R7201806XXOODIODE GP 1.8KV 600A DO200AB |
3,186 | 116.91 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 7 µs | 50 mA @ 1800 V | 1800 V | 600A | - | 2.15 V @ 1500 A | |
|
|
12F100B BN R YDIODE GEN PURP 1KV 12A DO203AA |
3,804 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 1000 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | ||
|
D950N22TXPSA1DIODE GEN PURP 2.2KV 950A |
3,462 | 117.07 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 40 mA @ 2200 V | 2200 V | 950A | -40°C ~ 180°C | 1.12 V @ 650 A | |
|
VS-1N1201RADIODE GEN PURP 150V 12A DO203AA |
3,900 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 2.25 mA @ 150 V | 150 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A | |
|
VS-SD2000C04LDIODE GP 400V 2100A DO200AB |
3,115 | 117.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 60 mA @ 400 V | 400 V | 2100A | - | 1.55 V @ 6000 A | |
|
|
12FR20B BN BK RDIODE GEN PURP 200V 12A DO203AA |
3,871 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 200 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | ||
|
VS-305U250DIODE GEN PURP 2.5KV 300A DO9 |
2,014 | 117.53 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 2500 V | 300A | -40°C ~ 180°C | 1.46 V @ 942 A | |
|

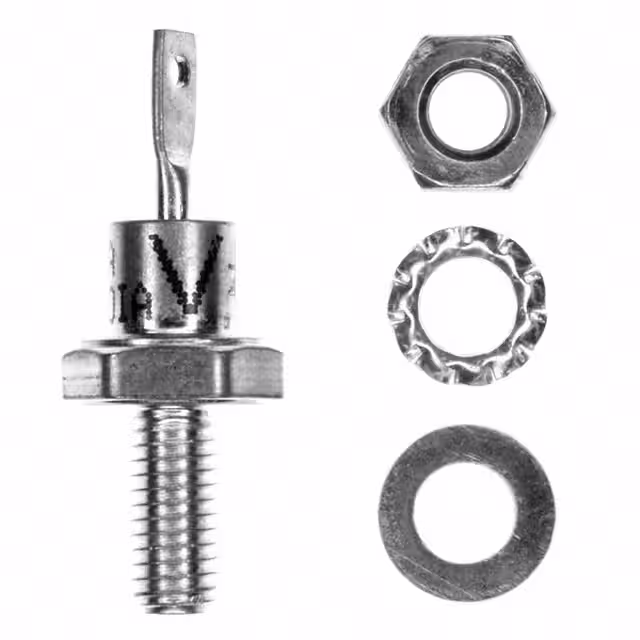

VS-1N1203RADIODE GEN PURP 300V 12A DO203AA |
2,454 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1.75 mA @ 300 V | 300 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A | |
|
|
JAN1N6844U3DIODE SCHOTTKY 100V 15A U3 |
2,228 | 117.60 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/679 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 600pF @ 5V, 1MHz | - | 100 µA @ 100 V | 100 V | 15A | -65°C ~ 150°C | 900 mV @ 15 A |
|
|
VS-1N1204RADIODE GEN PURP 400V 12A DO203AA |
3,778 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1.5 mA @ 400 V | 400 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A | |
|
|
VS-SD2000C08LDIODE GP 800V 2100A DO200AB |
2,208 | 117.61 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 60 mA @ 800 V | 800 V | 2100A | - | 1.55 V @ 6000 A | |
|
|
12FR40B BN BK RDIODE GEN PURP 400V 12A DO203AA |
3,705 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 400 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | ||
|
|
VS-SD2000C10LDIODE GEN PURP 1KV 2100A DO200AB |
3,900 | 117.83 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 60 mA @ 1000 V | 1000 V | 2100A | - | 1.55 V @ 6000 A | |
|
|
12FR60B BN BK RDIODE GEN PURP 600V 12A DO203AA |
2,386 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 600 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | ||
|
|
JAN1N5812RECTIFIER |
2,232 | 117.90 |
RFQ |
Bulk | MILITARY, MIL-PRF-19500/478 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 300pF @ 10V, 1MHz | 35 ns | 10 µA @ 50 V | 50 V | 20A | -65°C ~ 175°C | 950 mV @ 20 A | |
|
|
VS-1N3671RADIODE GEN PURP 800V 12A DO203AA |
3,999 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 800 µA @ 800 V | 800 V | 12A | -65°C ~ 200°C | 1.35 V @ 12 A |
