Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R7201609XXOODIODE GP 1.6KV 900A DO200AB |
3,176 | 114.78 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 10 µs | 50 mA @ 1600 V | 1600 V | 900A | - | 1.6 V @ 1500 A | |
|

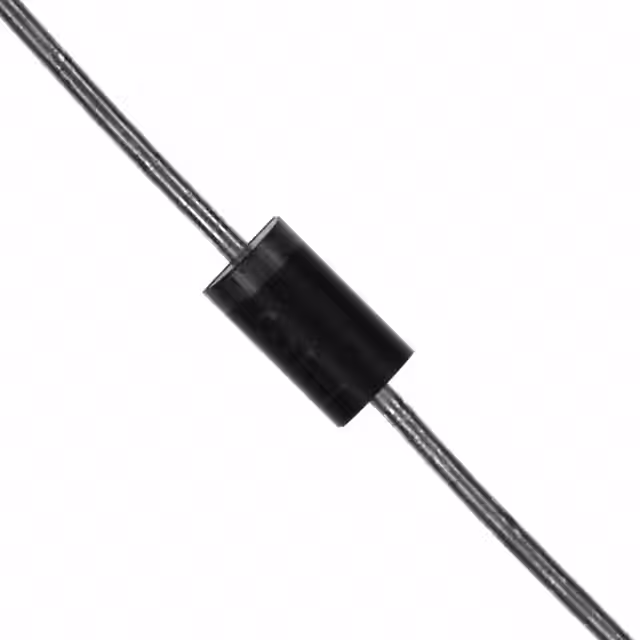

VS-31DQ09DIODE SCHOTTKY 90V 3.3A C16 |
3,990 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 90 V | 90 V | 3.3A | -40°C ~ 150°C | 850 mV @ 3 A | |
|
|
JANTXV1N5711UBCASCHOTTKY DIODE |
2,425 | 114.84 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
VS-31DQ03DIODE SCHOTTKY 30V 3.3A C16 |
2,156 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 30 V | 30 V | 3.3A | -40°C ~ 150°C | 570 mV @ 3 A | |
|
|
JANTXV1N5711UBCCSCHOTTKY DIODE |
3,503 | 114.84 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
VS-31DQ04DIODE SCHOTTKY 40V 3.3A C16 |
3,047 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 40 V | 40 V | 3.3A | -40°C ~ 150°C | 570 mV @ 3 A | |
|
|
JANTXV1N5711UBDSCHOTTKY DIODE |
2,727 | 114.84 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
VS-11DQ06DIODE SCHOTTKY 60V 1.1A DO204AL |
2,492 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 60 V | 60 V | 1.1A | -40°C ~ 150°C | 580 mV @ 1 A | |
|
SBR8050DIODE SCHOTTKY 80A 50V DO5 |
2,280 | 114.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis, Stud Mount | - | - | 2 mA @ 50 V | 50 V | 80A | - | 740 mV @ 80 A | |
|
|
VS-11DQ04DIODE SCHOTTKY 40V 1.1A DO204AL |
3,923 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 40 V | 40 V | 1.1A | -40°C ~ 150°C | 550 mV @ 1 A | |
|
|
SBR8040RECTIFIER |
2,776 | 114.89 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | - | 40 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | ||
|
HFA16PB120DIODE GEN PURP 1.2KV 16A TO247AC |
2,109 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 135 ns | 20 µA @ 1200 V | 1200 V | 16A | -55°C ~ 150°C | 3 V @ 16 A |
|
|
SBR8045RECTIFIER |
2,218 | 114.89 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | - | - | - | 45 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | ||
|
HFA25PB60DIODE GEN PURP 600V 25A TO247AC |
2,762 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 75 ns | 20 µA @ 600 V | 600 V | 25A | -55°C ~ 150°C | 1.7 V @ 25 A |
|
|
SBR8060RECTIFIER |
2,313 | 142.03 |
RFQ |
Bulk,Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Stud Mount | 2000pF @ 5V, 1MHz | - | - | 60 V | 80A | -55°C ~ 175°C | 770 mV @ 80 A | ||
|
|
HFA15PB60DIODE GEN PURP 600V 15A TO247AC |
3,158 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 60 ns | 10 µA @ 600 V | 600 V | 15A | -55°C ~ 150°C | 1.7 V @ 15 A |
|
VS-SD300C32CDIODE GP 3.2KV 540A DO200AA |
3,504 | 115.36 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 15 mA @ 3200 V | 3200 V | 540A | - | 2.08 V @ 1500 A | |
|
BAS21TADIODE HI SPEED SWITCHING SOT23-3 |
2,044 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 200mA | - | 1.25 V @ 200 mA | |
|
VS-SD1500C16LDIODE GP 1.6KV 1600A DO200AB |
3,708 | 115.53 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Clamp On | - | - | 50 mA @ 1600 V | 1600 V | 1600A | - | 1.64 V @ 3000 A | |
|
VS-1N2128ADIODE GEN PURP 50V 60A DO203AB |
2,410 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 50 V | 50 V | 60A | -65°C ~ 200°C | 1.3 V @ 188 A |
