| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR30J02DIODE GEN PURP 600V 30A DO5 |
2,329 | 16.03 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 50 V | 600 V | 30A | -40°C ~ 125°C | 1 V @ 30 A | |
|
MBR8045RDIODE SCHOTTKY REV 45V DO5 |
2,537 | 17.51 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 1 mA @ 45 V | 45 V | 80A | -55°C ~ 150°C | 650 mV @ 80 A | |
|
GB50SLT12-247DIODE SCHOTTKY 1.2KV 50A TO247AC |
3,008 | 36.35 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Not For New Designs | Through Hole | 2940pF @ 1V, 1MHz | 0 ns | 1 mA @ 1200 V | 1200 V | 50A | -55°C ~ 175°C | 1.8 V @ 50 A | |
|
S300YRDIODE GEN PURP REV 1.6KV DO9 |
3,477 | 40.55 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 1600 V | 300A | -60°C ~ 180°C | 1.2 V @ 300 A | |
|
MBRH12040RDIODE SCHOTTKY 40V 120A D-67 |
2,600 | 48.49 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis Mount | - | - | 1 mA @ 40 V | 40 V | 120A | -55°C ~ 150°C | 700 mV @ 120 A | |
|
|
MBRH20045DIODE SCHOTTKY 45V 200A D-67 |
2,969 | 54.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | - | - | 5 mA @ 20 V | 45 V | 200A | - | 650 mV @ 200 A | |
|
1N1186ADIODE GEN PURP 200V 40A DO5 |
3,669 | 11.78 |
RFQ |
Datasheet |
Bulk | RoHS | - | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 200 V | 40A | -65°C ~ 190°C | 1.1 V @ 40 A | |
|
FR40G02DIODE GEN PURP 400V 40A DO5 |
2,266 | 19.86 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 40A | -40°C ~ 125°C | 1 V @ 40 A | |
|

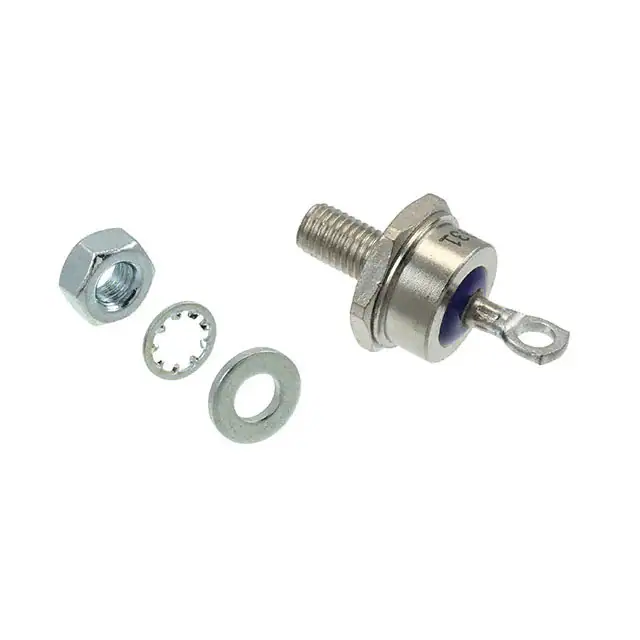

FR70GR02DIODE GEN PURP REV 400V 70A DO5 |
100 | 25.17 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 70A | -40°C ~ 125°C | 1.4 V @ 70 A | |
|
|
MBRH20045RDIODE SCHOTTKY 45V 200A D-67 |
2,156 | 82.20 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Active | Chassis Mount | - | - | 1 mA @ 45 V | 45 V | 200A | -55°C ~ 150°C | 700 mV @ 200 A | |
|
GD10MPS17H1700V 10A TO-247-2 SIC SCHOTTKY |
3,031 | 8.67 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 721pF @ 1V, 1MHz | 0 ns | 5 µA @ 1700 V | 1700 V | 28A (DC) | -55°C ~ 175°C | 1.8 V @ 10 A |
|
GC50MPS12-247SIC DIODE 1200V 50A TO-247-2 |
2,205 | 24.83 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 3263pF @ 1V, 1MHz | 0 ns | 40 µA @ 1200 V | 1200 V | 212A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A |
|
1N1184DIODE GEN PURP 100V 35A DO5 |
2,181 | 13.04 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 100 V | 35A | -65°C ~ 190°C | 1.2 V @ 35 A | |
|
GD30MPS12HDIODE SCHOTTKY 1200V 30A TO-247- |
2,344 | 11.48 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1101pF @ 1V, 1MHz | - | 20 µA @ 1200 V | 1200 V | 55A (DC) | -55°C ~ 175°C | 1.8 V @ 30 A |
|

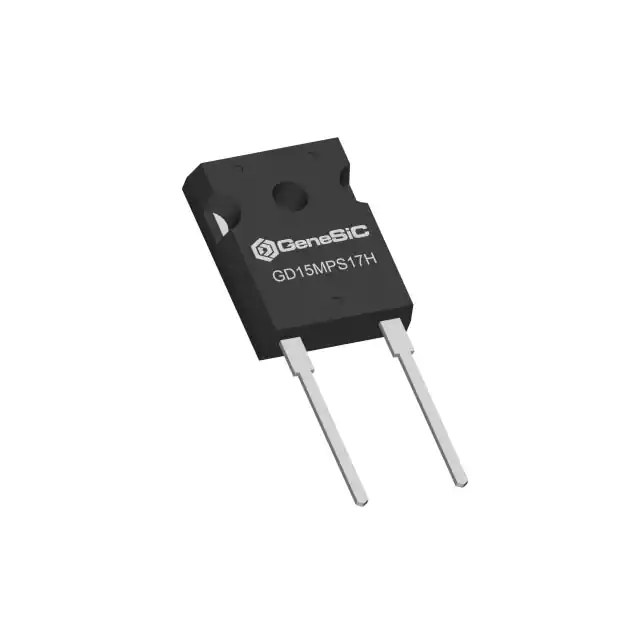

GD15MPS17H1700V 15A TO-247-2 SIC SCHOTTKY |
2,178 | 12.40 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 1.082nF @ 1V, 1MHz | 0 ns | 20 µA @ 1700 V | 1700 V | 36A (DC) | -55°C ~ 175°C | 1.8 V @ 15 A |
|
|
GC05MPS33J3300V 5A TO-263-7 SIC SCHOTTKY M |
2,890 | 19.22 |
RFQ |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | - | 0 ns | - | 3300 V | 5A (DC) | 175°C | - | |
|

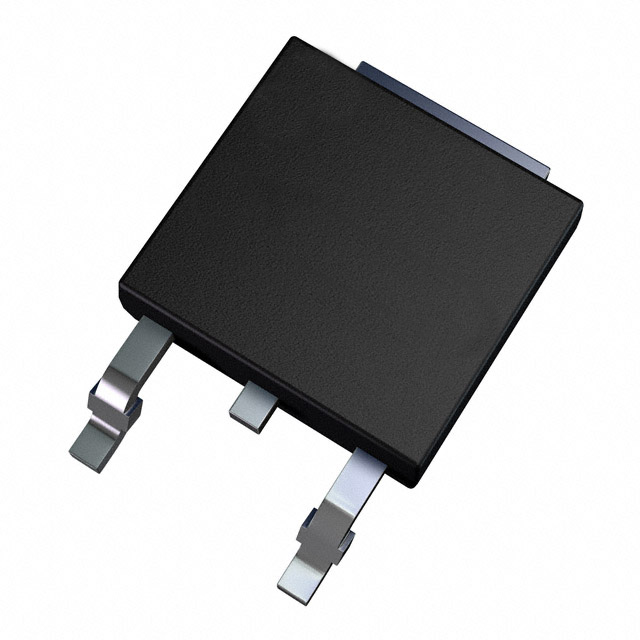

GC05MPS12-252SIC DIODE 1200V 5A TO-252-2 |
3,199 | 3.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 359pF @ 1V, 1MHz | 0 ns | 4 µA @ 1200 V | 1200 V | 27A (DC) | -55°C ~ 175°C | 1.8 V @ 5 A |
|

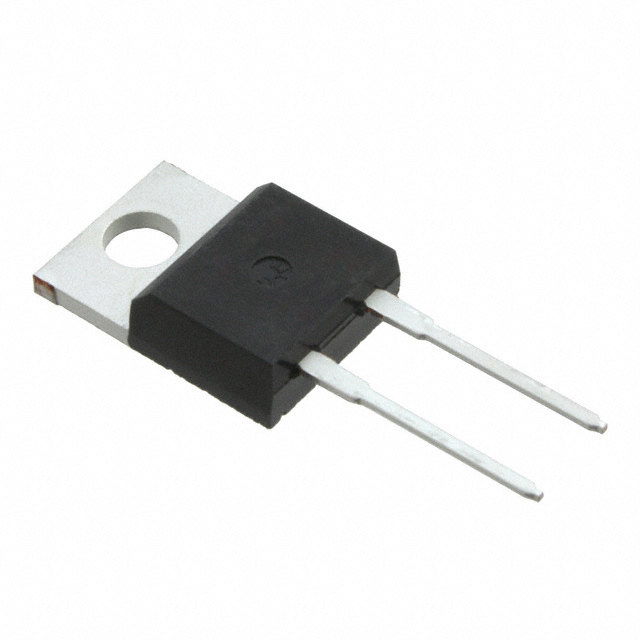

GC08MPS12-220SIC DIODE 1200V 8A TO-220-2 |
3,155 | 3.10 |
RFQ |
Datasheet |
Tube | SiC Schottky MPS™ | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 545pF @ 1V, 1MHz | 0 ns | 7 µA @ 1200 V | 1200 V | 43A (DC) | -55°C ~ 175°C | 1.8 V @ 8 A |
|
|
S6BDIODE GEN PURP 100V 6A DO4 |
3,228 | 4.39 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 100 V | 6A | -65°C ~ 175°C | 1.1 V @ 6 A | |
|
|
S6BRDIODE GEN PURP REV 100V 6A DO4 |
2,190 | 4.39 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 100 V | 100 V | 6A | -65°C ~ 175°C | 1.1 V @ 6 A |
