| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

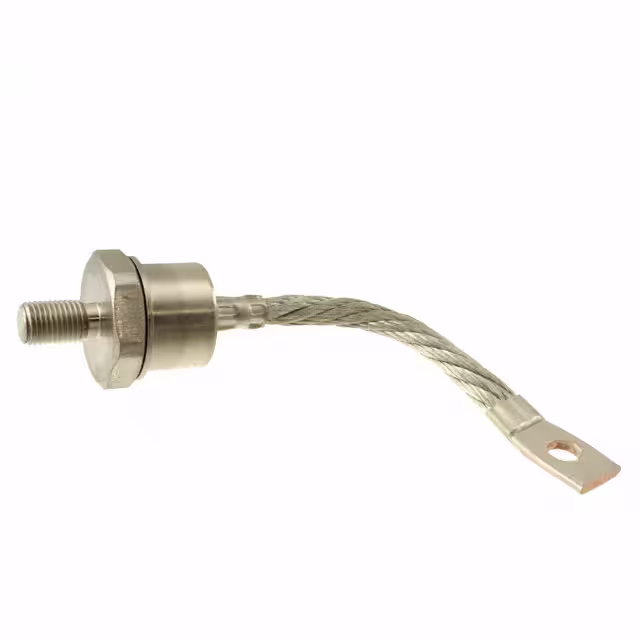

1N4593RDIODE GEN PURP 800V 150A DO205AA |
3,694 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 5.5 mA @ 800 V | 800 V | 150A | -60°C ~ 200°C | 1.5 V @ 150 A | |
|
|
1N4594DIODE GEN PURP 1KV 150A DO205 |
2,783 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 4.5 mA @ 1000 V | 1000 V | 150A | -60°C ~ 200°C | 1.5 V @ 150 A | |
|
|
1N4594RDIODE GEN PURP REV 1KV DO205AA |
2,398 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 4.5 mA @ 1000 V | 1000 V | 150A | -60°C ~ 200°C | 1.5 V @ 150 A | |
|
|
1N4595DIODE GEN PURP 1.2KV 150A DO205 |
3,455 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 4 mA @ 1200 V | 1200 V | 150A | -60°C ~ 200°C | 1.5 V @ 150 A | |
|
1N4595RDIODE GEN PURP REV 1.2KV DO205AA |
2,479 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 4 mA @ 1200 V | 1200 V | 150A | -60°C ~ 200°C | 1.5 V @ 150 A | |
|
|
S150JDIODE GEN PURP 600V 150A DO205AA |
2,032 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 600 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
S150JRDIODE GEN PURP 600V 150A DO205AA |
3,688 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 600 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
S150KDIODE GEN PURP 800V 150A DO205AA |
2,068 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 800 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
S150KRDIODE GEN PURP 800V 150A DO205AA |
3,014 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 800 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
1N3289ADIODE GEN PURP 200V 100A DO205AA |
3,454 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 200 V | 200 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
S150MDIODE GEN PURP 1KV 150A DO205 |
2,082 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 1000 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
1N3289ARDIODE GEN PURP 200V 100A DO205AA |
2,242 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 24 mA @ 200 V | 200 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
S150MRDIODE GEN PURP REV 1KV DO205AA |
2,345 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 1000 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
1N3291ADIODE GEN PURP 400V 100A DO205AA |
3,907 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 24 mA @ 400 V | 400 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
S150QDIODE GEN PURP 1.2KV 150A DO205 |
2,922 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 1200 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
1N3291ARDIODE GEN PURP 400V 100A DO205AA |
2,222 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 24 mA @ 400 V | 400 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
S150QRDIODE GEN PURP REV 1.2KV DO205AA |
3,125 | 41.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 600 V | 1200 V | 150A | -65°C ~ 200°C | 1.2 V @ 150 A | |
|
|
1N3293ADIODE GEN PURP 600V 100A DO205AA |
3,940 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 17 mA @ 600 V | 600 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
1N3293ARDIODE GEN PURP 600V 100A DO205AA |
3,848 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 17 mA @ 600 V | 600 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A | |
|
|
1N3294ADIODE GEN PURP 800V 100A DO205AA |
3,322 | 39.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 13 mA @ 800 V | 800 V | 100A | -40°C ~ 200°C | 1.5 V @ 100 A |
