| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKR240/18DIODE GP 1.8KV 165A DO205AB |
2,633 | 78.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 22 mA @ 1800 V | 1800 V | 165A | -55°C ~ 150°C | 1.5 V @ 60 A | |
|
FR85G05DIODE GEN PURP 400V 85A DO5 |
3,673 | 25.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 400 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85J02DIODE GEN PURP 600V 85A DO5 |
3,261 | 25.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 250 ns | 25 µA @ 100 V | 600 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85J05DIODE GEN PURP 600V 85A DO5 |
2,909 | 25.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 600 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85K05DIODE GEN PURP 800V 85A DO5 |
3,632 | 25.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 800 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85M05DIODE GEN PURP 1KV 85A DO5 |
2,260 | 25.77 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 1000 V | 85A | -40°C ~ 125°C | 1.3 V @ 85 A | |
|
|
S380YRDIODE GEN PURP REV 1.6KV DO205AB |
3,840 | 72.72 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 1600 V | 380A | -60°C ~ 180°C | 1.2 V @ 380 A | |
|
|
S300ZRDIODE GEN PURP REV 2KV DO205AB |
2,446 | 89.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 2000 V | 300A | -60°C ~ 180°C | 1.2 V @ 300 A | |
|
FR85GR02DIODE GEN PURP REV 400V 85A DO5 |
2,760 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 400 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85BR02DIODE GEN PURP REV 100V 85A DO5 |
3,913 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 100 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85BR05DIODE GEN PURP REV 100V 85A DO5 |
2,804 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 100 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85DR02DIODE GEN PURP REV 200V 85A DO5 |
2,957 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 25 µA @ 100 V | 200 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85DR05DIODE GEN PURP REV 200V 85A DO5 |
2,441 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 200 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85GR05DIODE GEN PURP REV 400V 85A DO5 |
2,215 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 400 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85KR05DIODE GEN PURP REV 800V 85A DO5 |
3,487 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 800 V | 85A | -40°C ~ 125°C | 1.4 V @ 85 A | |
|
|
FR85MR05DIODE GEN PURP REV 1KV 85A DO5 |
3,142 | 26.89 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 25 µA @ 100 V | 1000 V | 85A | -40°C ~ 125°C | 1.3 V @ 85 A | |
|
|
S380ZRDIODE GEN PURP REV 2KV DO205AB |
2,690 | 90.79 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 1600 V | 2000 V | 380A | -60°C ~ 180°C | 1.2 V @ 380 A | |
|
|
S400KDIODE GEN PURP 800V 400A DO205AB |
3,577 | 92.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 400A | -60°C ~ 200°C | 1.2 V @ 400 A | |
|
|

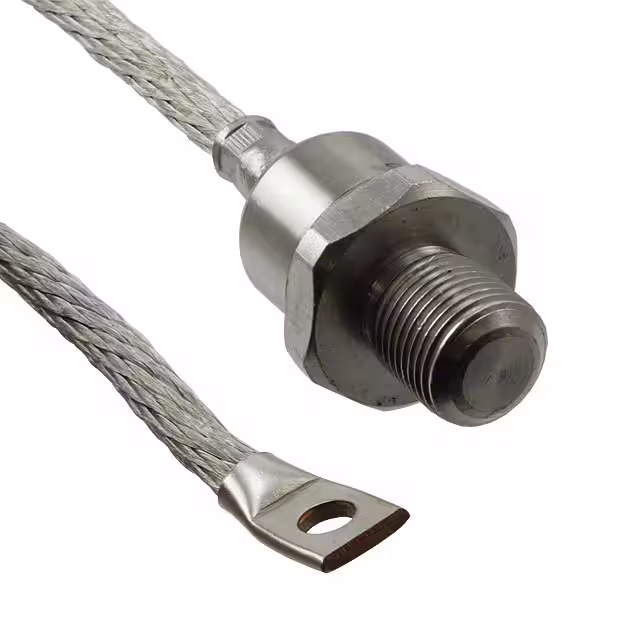

S400KRDIODE GEN PURP 800V 400A DO9 |
3,787 | 92.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 800 V | 400A | -60°C ~ 200°C | 1.2 V @ 400 A | |
|
|
S400QDIODE GEN PURP 1.2KV 400A DO205 |
2,798 | 92.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 µA @ 50 V | 1200 V | 400A | -60°C ~ 200°C | 1.2 V @ 400 A |
