| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

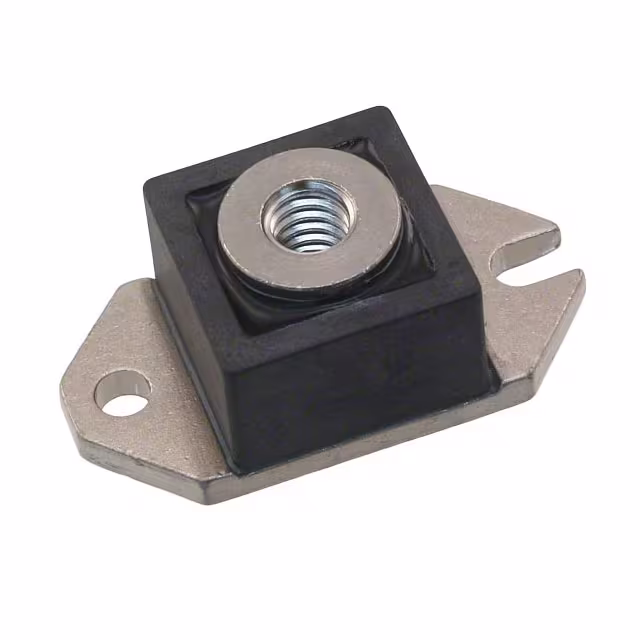

HS243100DIODE SCHOTTKY 100V 240A HALFPAK |
2,993 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 6400pF @ 5V, 1MHz | - | 8 mA @ 100 V | 100 V | 240A | - | 860 mV @ 240 A | |
|

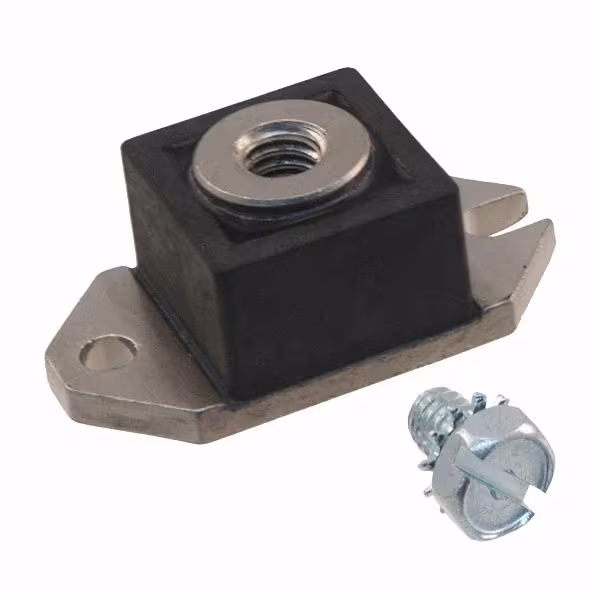

HS123100DIODE SCHOTTKY 100V 120A HALFPAK |
3,084 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 3000pF @ 5V, 1MHz | - | 3 mA @ 100 V | 100 V | 120A | - | 910 mV @ 120 A | |
|

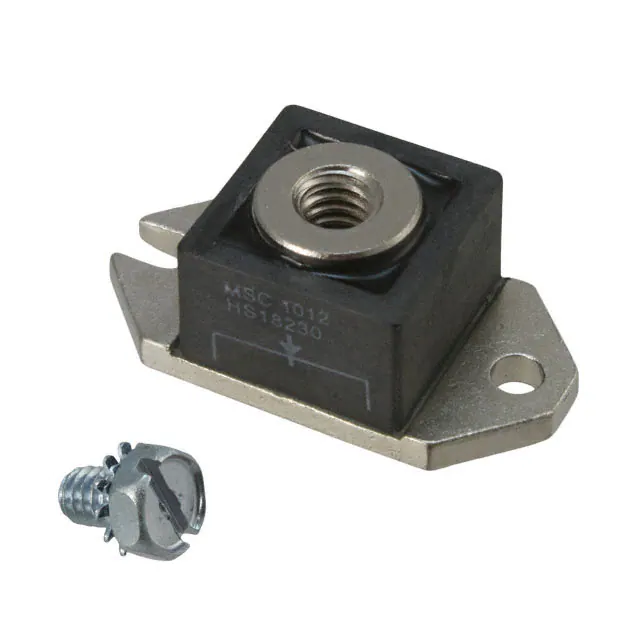

HS18230DIODE SCHOTTKY 30V 180A HALFPAK |
2,456 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7000pF @ 5V, 1MHz | - | 10 mA @ 30 V | 30 V | 180A | - | 550 mV @ 180 A | ||
|

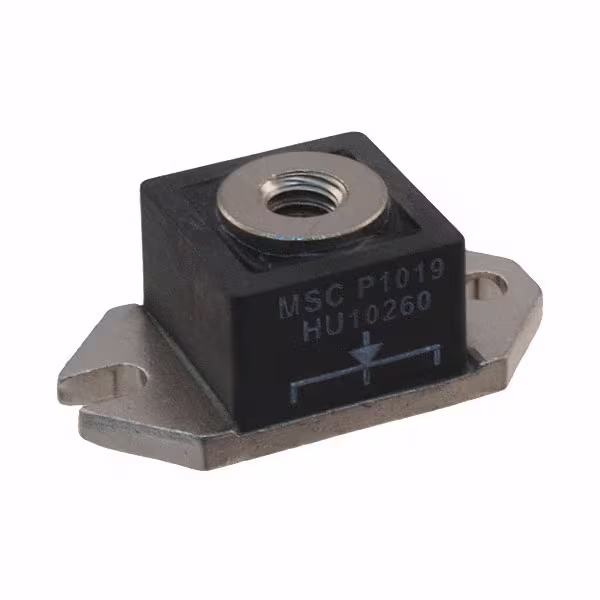

HU10260DIODE GEN PURP 600V 100A HALFPAK |
3,782 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | 275pF @ 10V, 1Mhz | 90 ns | 50 µA @ 600 V | 600 V | 100A | - | 1.35 V @ 100 A | |
|

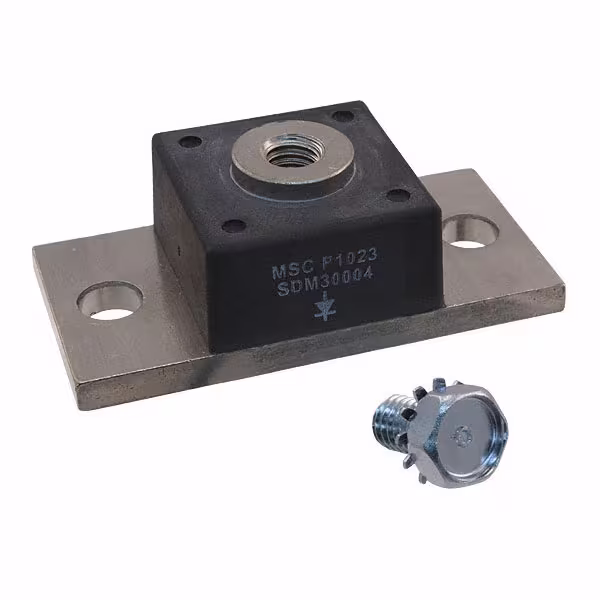

SDM30004DIODE GEN PURP 400V 300A MODULE |
3,758 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | - | 75 µA @ 400 V | 400 V | 300A | - | 1.1 V @ 300 A | |
|

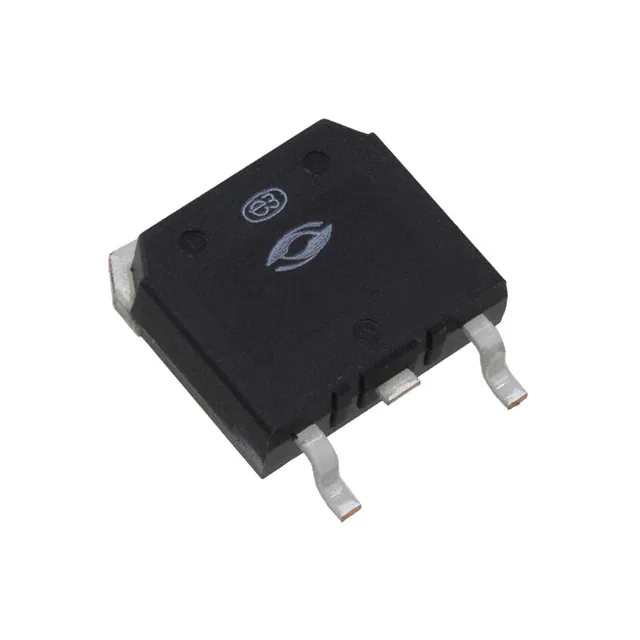

APT20SCD120SDIODE SCHOTTKY 1.2KV 68A D3PAK |
2,486 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Surface Mount | 1135pF @ 0V, 1MHz | 0 ns | 400 µA @ 1200 V | 1200 V | 68A (DC) | -55°C ~ 150°C | 1.8 V @ 20 A | |
|
APT20SCD120BDIODE SCHOTTKY 1.2KV 68A |
2,745 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | - | 1135pF @ 0V, 1MHz | 0 ns | 400 µA @ 1200 V | 1200 V | 68A (DC) | -55°C ~ 150°C | 1.8 V @ 20 A | |
|
APT10SCD120BDIODE SCHOTTKY 1.2KV 36A TO247 |
3,768 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 600pF @ 0V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 36A (DC) | -55°C ~ 150°C | 1.8 V @ 10 A | |
|
APT30SCD65BDIODE SIC 650V 46A TO247 |
3,592 | 0.00 |
RFQ |
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | 945pF @ 1V, 1MHz | 0 ns | 600 µA @ 650 V | 650 V | 46A | -55°C ~ 150°C | 1.8 V @ 30 A | ||
|
|
MSASC25W100KDIODE SCHOTTKY 100V 25A 2THINKEY |
2,130 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 25A | -65°C ~ 175°C | 910 mV @ 25 A | |
|
|
JANTX1N3909ARRECTIFIER |
3,511 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 50 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3909RRECTIFIER |
2,223 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 200 ns | - | 50 V | 30A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3910ARRECTIFIER |
2,627 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 100 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3910RRECTIFIER |
2,860 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 200 ns | - | 100 V | 30A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3911ARECTIFIER |
2,326 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 200 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3911ARRECTIFIER |
2,458 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 200 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3912ARECTIFIER |
3,773 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 300 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3912ARRECTIFIER |
3,566 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 300 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3912RRECTIFIER |
3,800 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 200 ns | - | 300 V | 30A | -65°C ~ 150°C | 1.4 V @ 50 A | |
|
|
JANTX1N3913ARRECTIFIER |
2,099 | 0.00 |
RFQ |
Bulk | Military, MIL-PRF-19500/308 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 150 ns | - | 400 V | 50A | -65°C ~ 150°C | 1.4 V @ 50 A |
